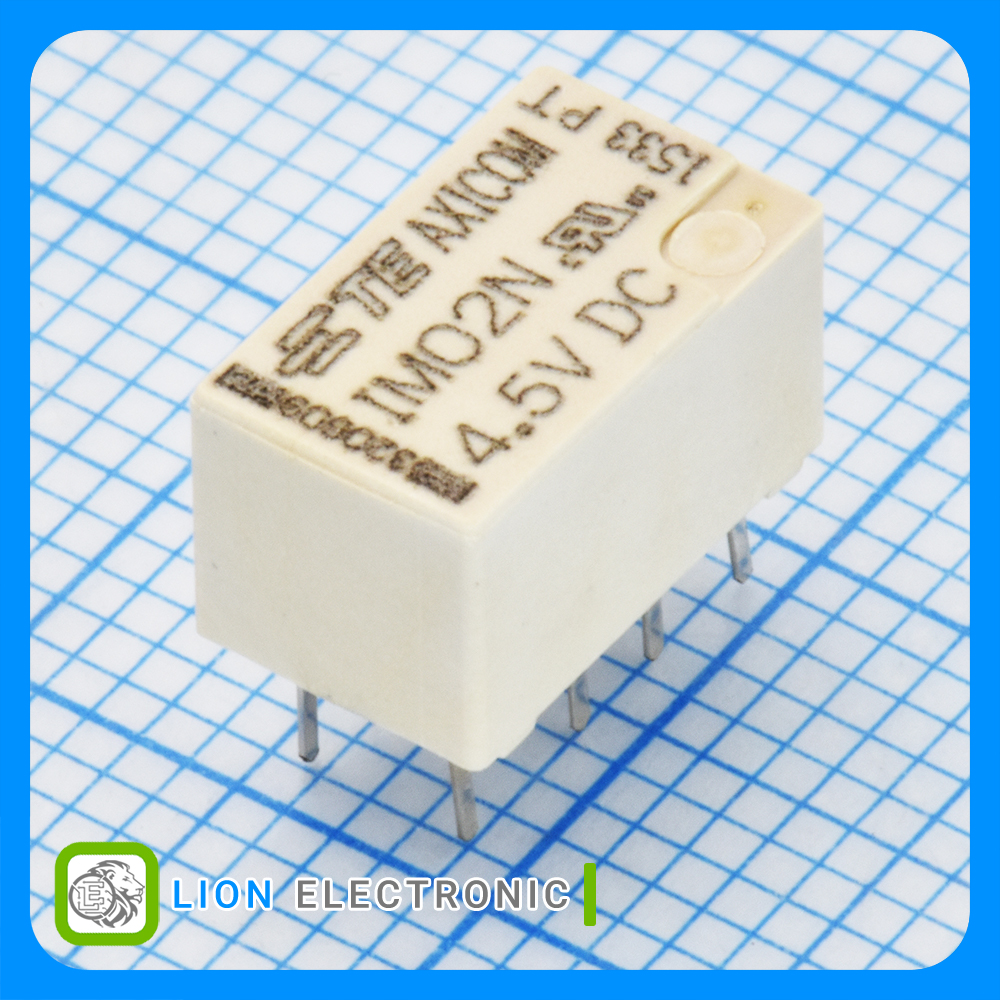

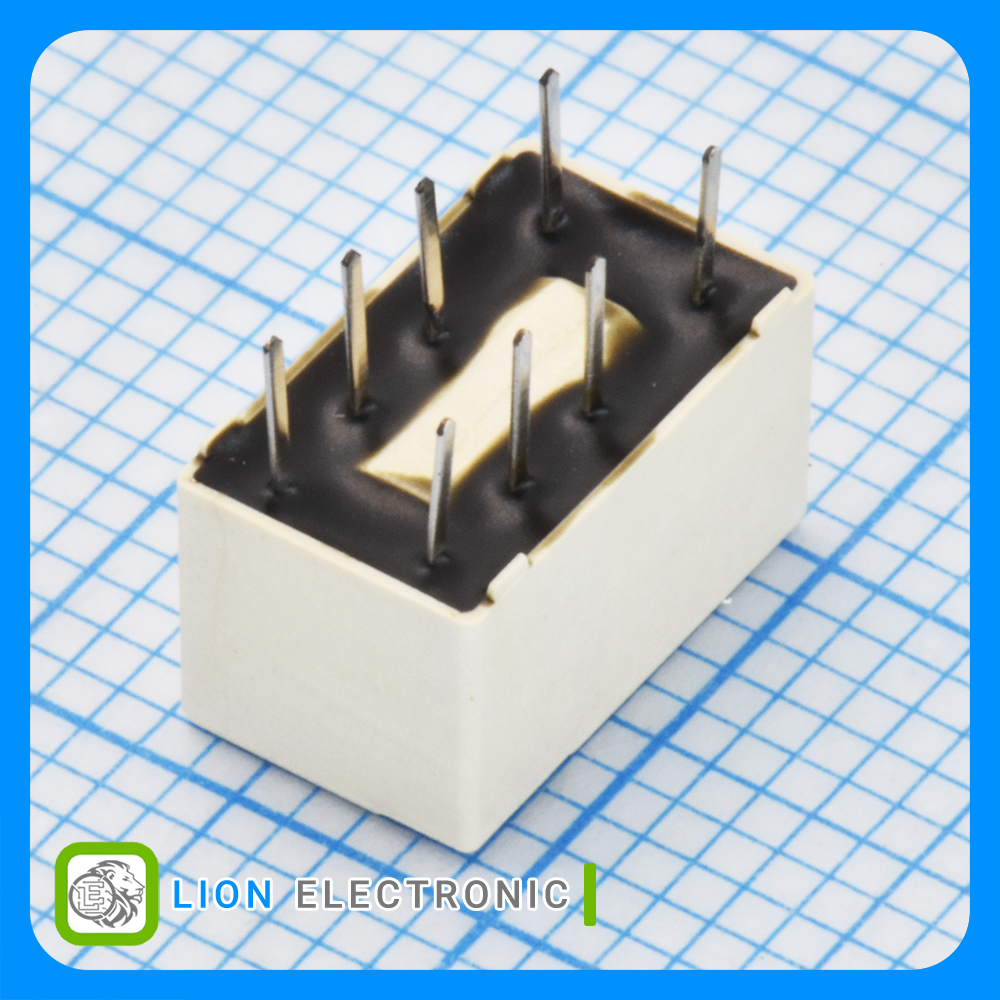

رله فرکانس بالا IM02NS
Detail
IM02NS
Part Number .
1051
Lion Part .
Datasheet .
TE Connectivity Manufacture .
رله فرکانس بالا 4.5 ولت با توان 140میلی وات
RF Relay/ High Frequency
مشخصات رله فرکانس بالا IM02NS
رله فرکانس بالا IM02NS
Part Number .
0.03dB
Insertion Loss .
37dB
Isolation .
140mW
Power Consumption .
2A
Maximum Switching Current .
Solder Pin
Contact Termination .
Palladium Ruthenium (PdRu) with Gold Plating
Contact Material .
2A
Contact Current Rating .
4.5VDC
Coil Voltage .
-
Coil Type .
2 Form C (DPDT-NO, NC)
Relay Contact Form .
31.03mA
Coil Current .
145Ω
Coil Resistance .
3.2mm
Width .
Tube
Packaging .
Through Hole
Mounting Style .
10mm
Length .
5.8mm
Height .
High Frequency Relays
Product Type .
-
Frequency .
