SM712.TCT
Detail
SM712.TCT
Part Number .
113
Lion Part .
Datasheet .
Semtech Manufacture .
دیود TVS دارای دو شاخه (در هر شاخه یک دیود 12 ویک دیود 7 ولت) 21 و 38 آمپر به نسبت جهت جریان برای محافظت RS-485 با پکیج SOT-23

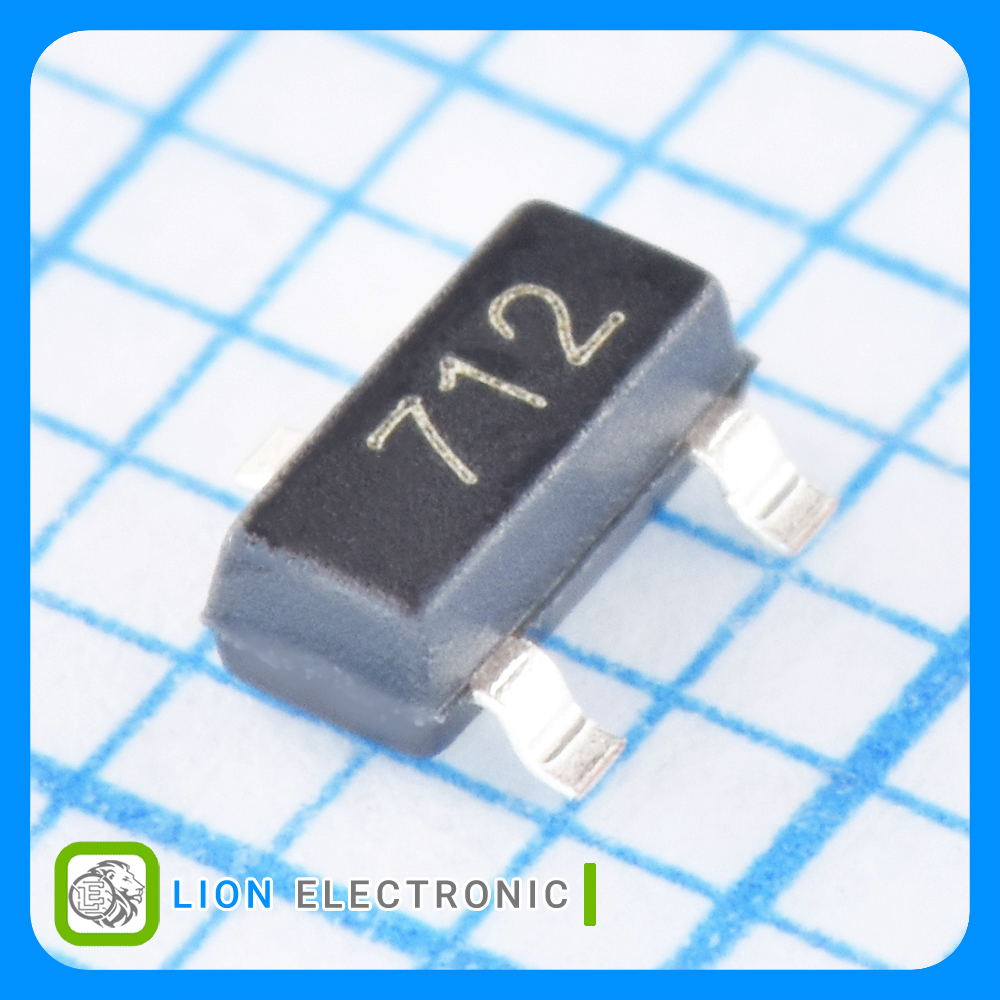

The SM712 Transient Voltage Suppressor (TVS) Diode is Designed for Asymmetrical (12V to -7V) Protection in Multi-point Data Transmission Standard RS-485 Applications.
مشخصات SM712.TCT
SM712.TCT
Part Number .
Bidirectional
Polarity .
2
Number of Channels .
-55C
Minimum Operating Temperature .
30kV
Vesd - Voltage ESD Air Gap .

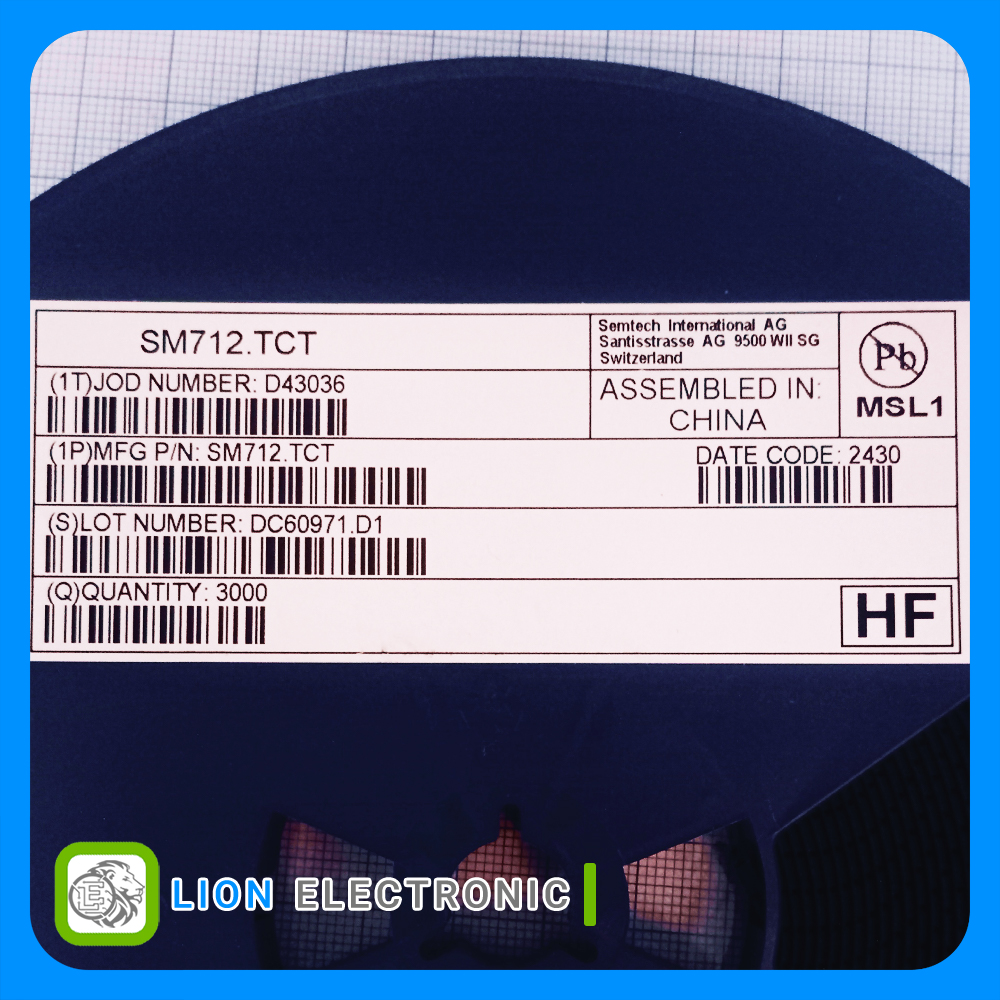

Reel
Packaging .
SMD/SMT
Termination style .
30kV
Vesd - Voltage ESD Contact .
+125C
Maximum Operating Temperature .
400W
Pppm - Peak Pulse Power Dissipation .
12V
Working Voltage .
ESD Suppressors
Product Type .
75pF
Cd - Diode Capacitance .
26V
Clamping Voltage .
13.3V
Breakdown Voltage .
21A
Ipp - Peak Pulse Current .
SOT-23-3
Package-Case .
