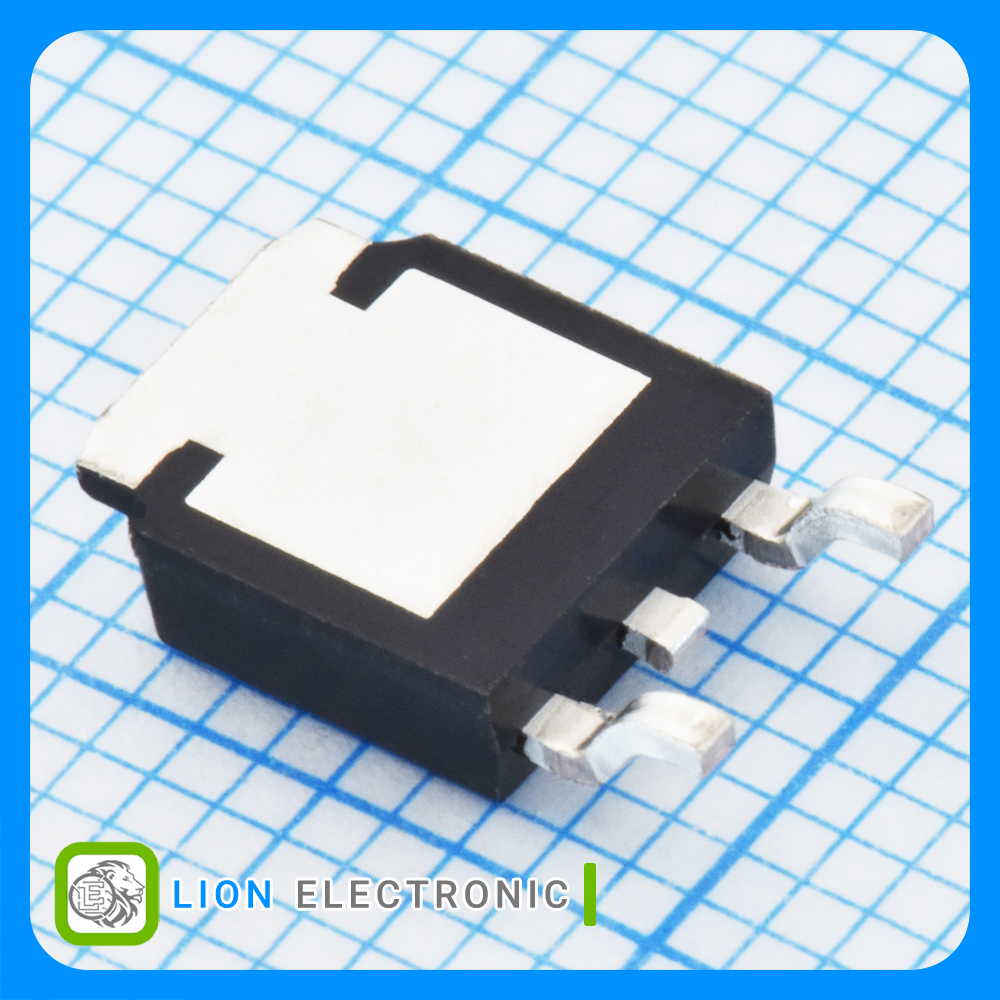

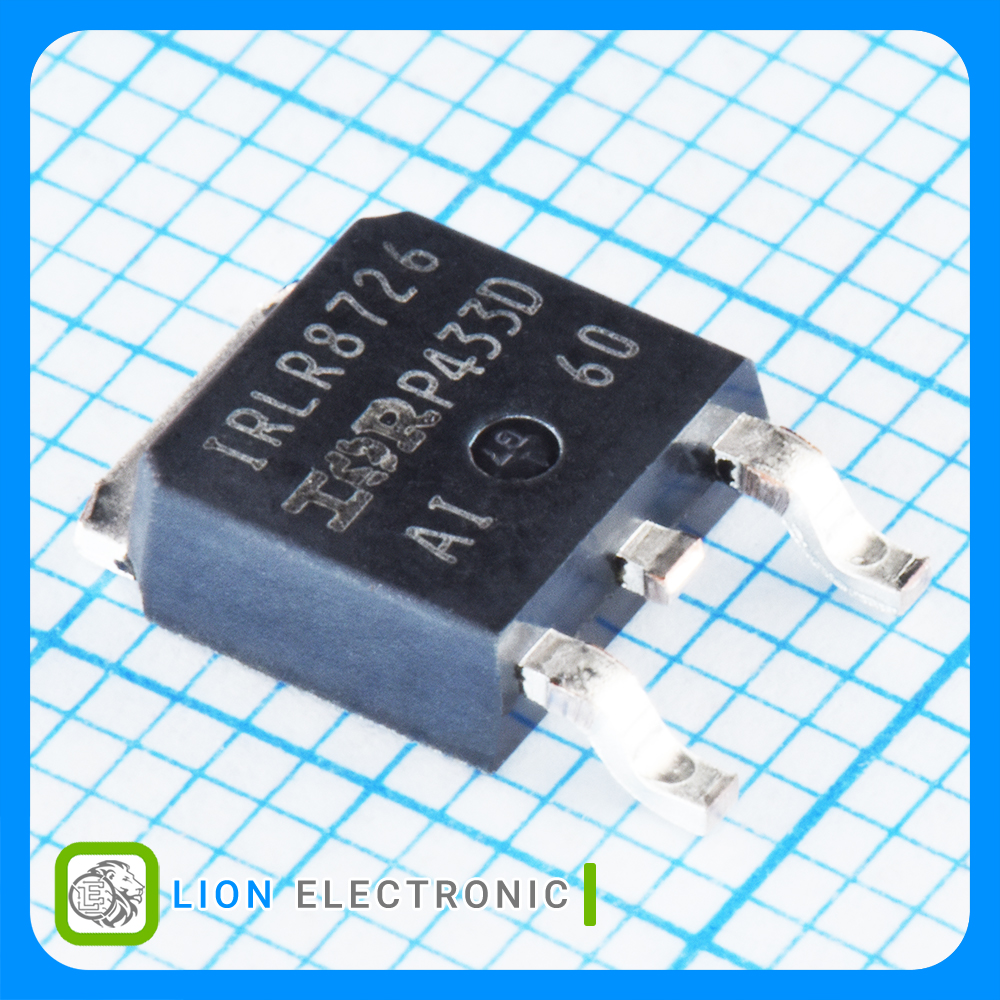

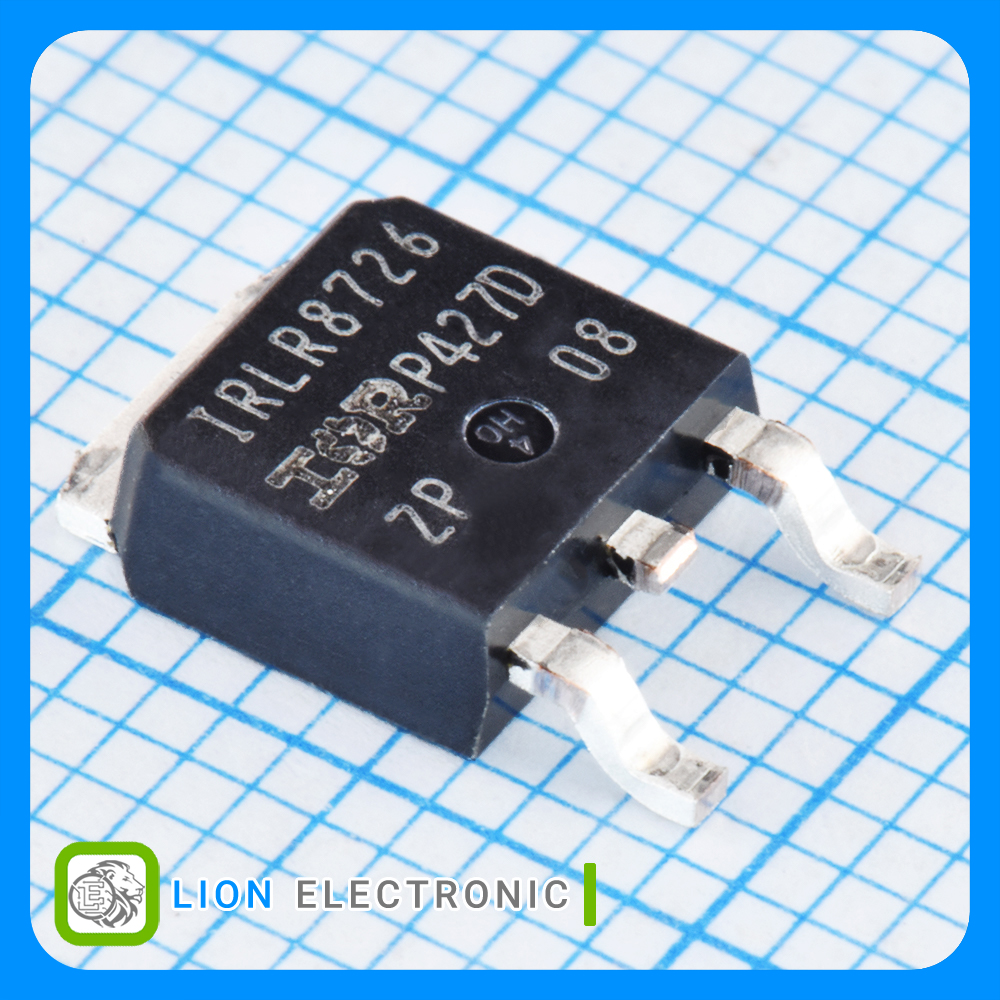

ماسفت IRLR8726TR
Detail
IRLR8726TR
Part Number .
2450
Lion Part .
Datasheet .
International Rectifier Manufacture .
ماسفت 30 ولت 86 آمپر نوع N با پکیج TO-252-3
N-CH MOS 30V 86A TO-252-3
مشخصات ماسفت IRLR8726TR
ماسفت IRLR8726TR
Part Number .
1
Number of Channels .
+175C
Maximum Operating Temperature .
Enhancement
Channel Mode .
-55C
Minimum Operating Temperature .
N-Channel
Transistor Polarity .
Reel
Packaging .
SMD/SMT
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
30V
Vds - Drain - Source Breakdown Voltage .
Single
Configuration .
4mΩ
Rds On - Drain - Source Resistance .
1.35V
Vgs th - Gate - Source Threshold Voltage .
15nC
Qg - Gate Charge .
DPAK
Package-Case .
75W
Pd - Power Dissipation .
86A
Id - Continuous Drain Current .
