ماسفت IRFR220NTRPBF
Detail
IRFR220NTRPBF
Part Number .
2902
Lion Part .
Datasheet .
Infineon Technologies Manufacture .

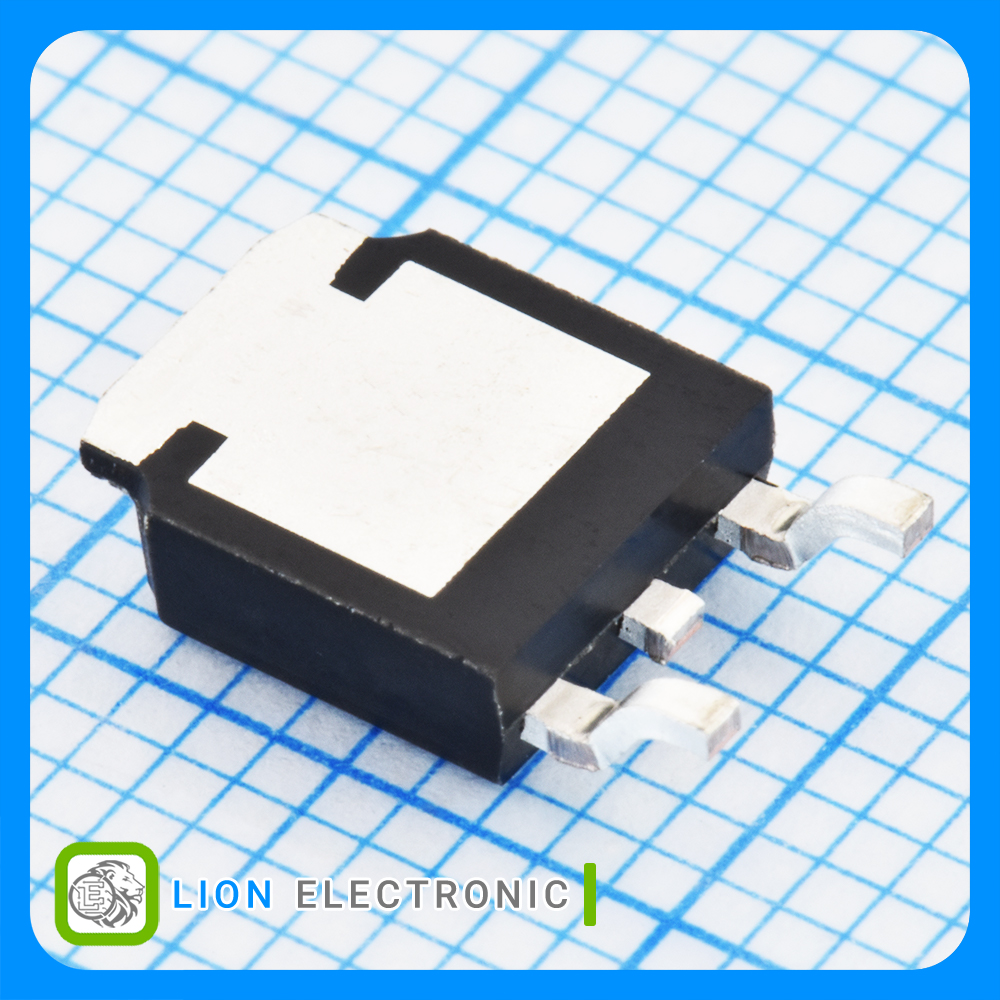

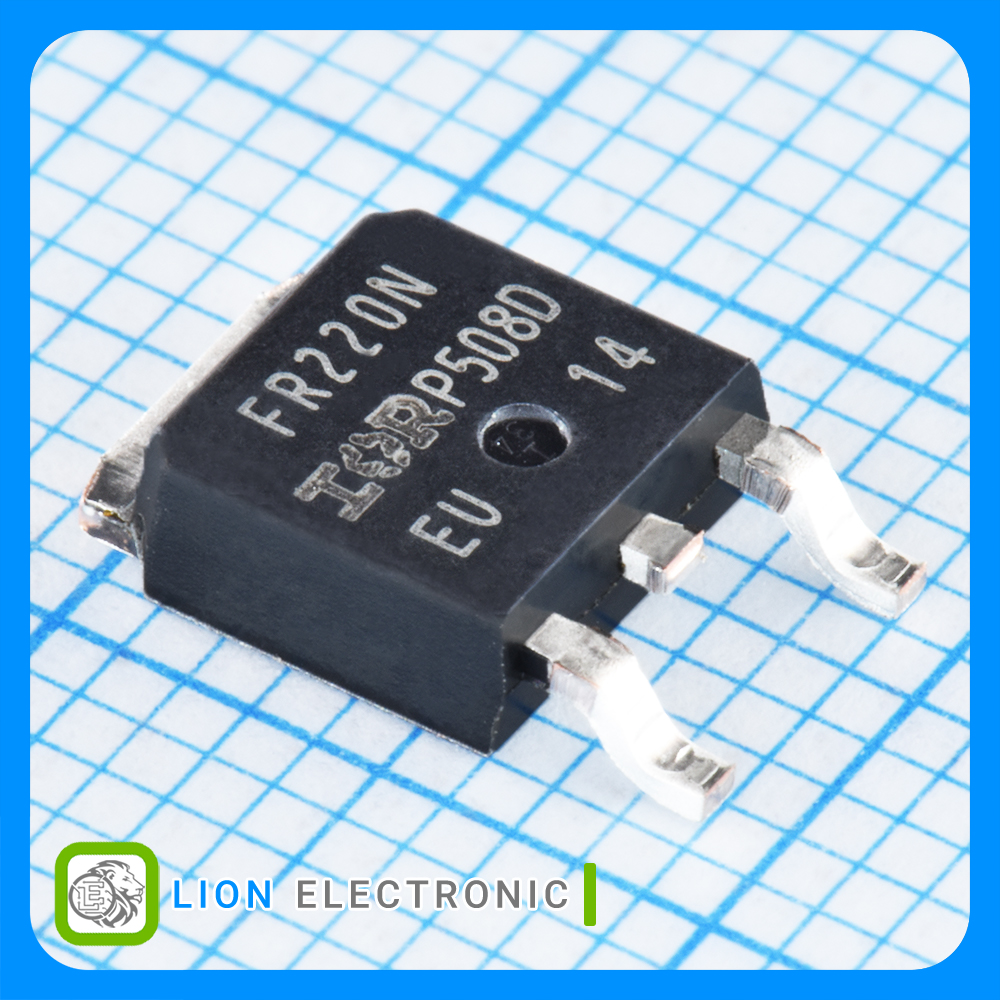

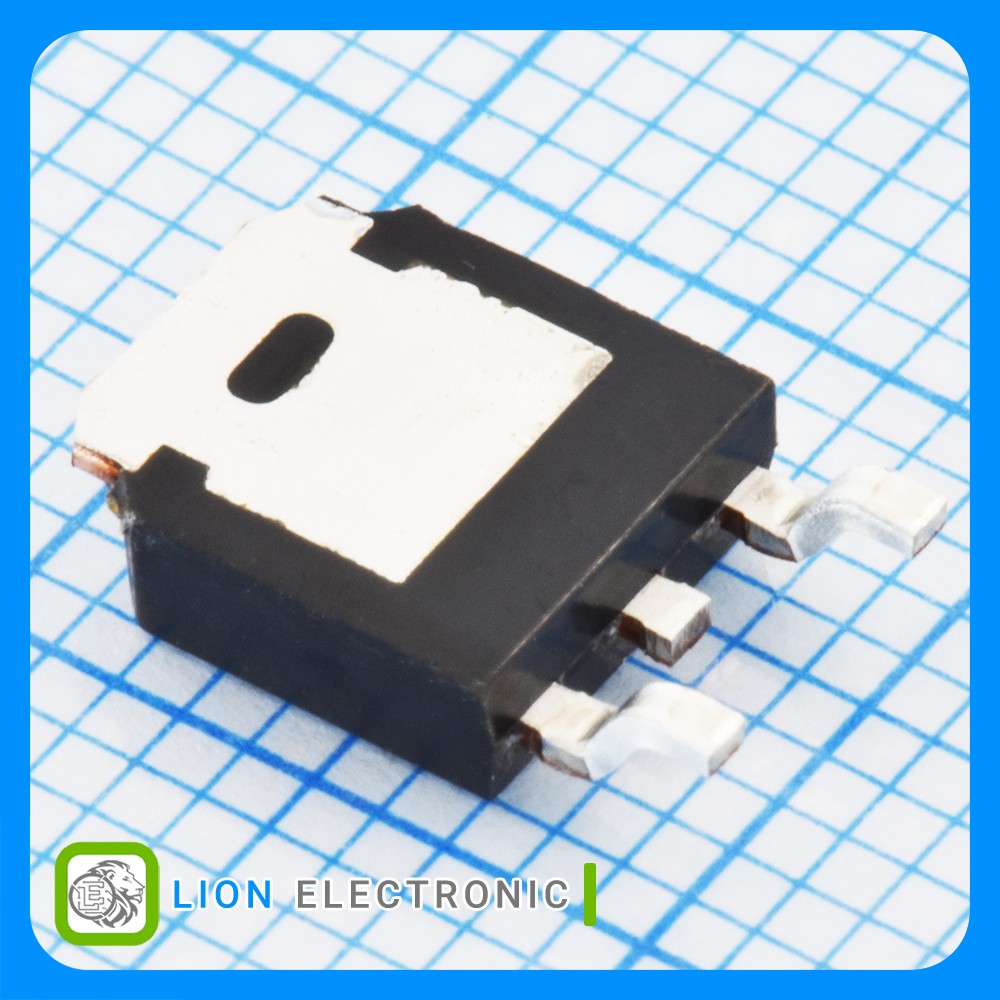

ماسفت 200 ولت 5 آمپر نوع N با پکیج TO-252-3
N-CH MOS 200V 5A TO-252-3
مشخصات ماسفت IRFR220NTRPBF
ماسفت IRFR220NTRPBF
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
+175C
Maximum Operating Temperature .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
Reel
Packaging .
SMD/SMT
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
200V
Vds - Drain - Source Breakdown Voltage .
Single
Configuration .
2V
Vgs th - Gate - Source Threshold Voltage .
15nC
Qg - Gate Charge .
5A
Id - Continuous Drain Current .
DPAK
Package-Case .
43W
Pd - Power Dissipation .
600mΩ
Rds On - Drain - Source Resistance .
