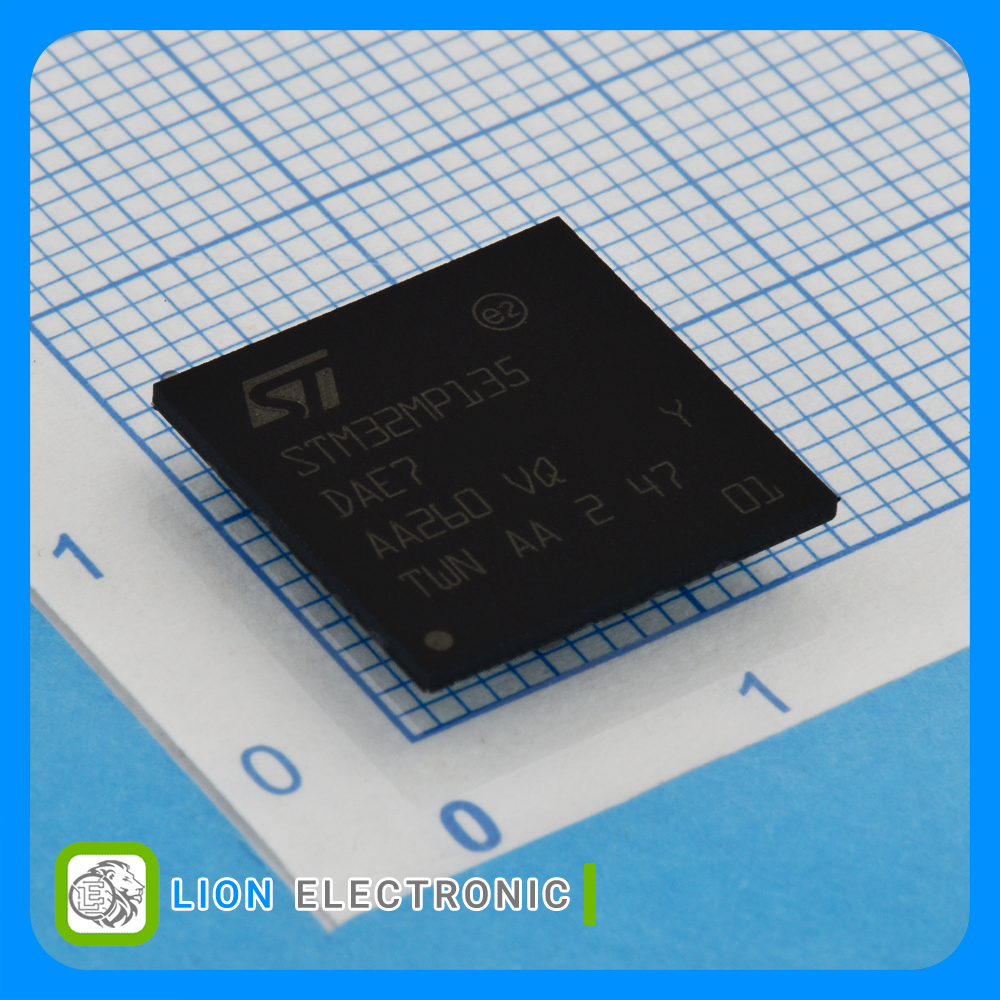

میکروپروسسور STM32MP135DAE7
Detail
STM32MP135DAE7
Part Number .
2924
Lion Part .
Datasheet .
STMicroelectronics Manufacture .
با فرکانس کاری 900 مگاهرتز Arm Cortex-A7 میکروپروسسور
Microprocessors - MPU 32bit Arm Cortex-A7 900MHz MPU for Industrial and Graphics
معرفی
- Up to 30 communication peripherals
- 5 × I2C FM+ (1 Mbit/s, SMBus/PMBus™)
- 4 x UART + 4 x USART (12.5 Mbit/s, ISO7816 interface, LIN, IrDA, SPI)
- 5 × SPI (50 Mbit/s, including 4 with full-duplex I2S audio class accuracy via internal audio PLL or external clock)
- 2 × SAI (stereo audio: I2S, PDM, SPDIF Tx)
- SPDIF Rx with 4 inputs
- 2 × SDMMC up to 8 bits (SD/e•MMC™/SDIO)
- 2 × CAN controllers supporting CAN FD protocol
- 2 × USB 2.0 high-speed Host
- or 1 × USB 2.0 high-speed Host+ 1 × USB 2.0 high-speed OTG simultaneously
- 2 x Ethernet MAC/GMAC
- IEEE 1588v2 hardware, MII/RMII/RGMII
- 8- to 16-bit camera interface, 3 Mpix @30 fps or 5Mpix @15 fps in color or monochrome with pixel clock @120 MHz (max freq)
مشخصات میکروپروسسور STM32MP135DAE7
میکروپروسسور STM32MP135DAE7
Part Number .
STM32MP1
Maximum CTR .
32bit
Data Bus Width .
ARM Cortex A7
Core .
-40C
Minimum Operating Temperature .
Tray
Packaging .
SMD/SMT
Mounting Style .
-
ADC Resolution .
+85C
Maximum Operating Temperature .
-
Program Memory Size .
1.7 - 3.6V
Operating Supply Voltage .
900MHz
Maximum Clock Frequency .
-
Data RAM Size .
135
Number of I-Os .

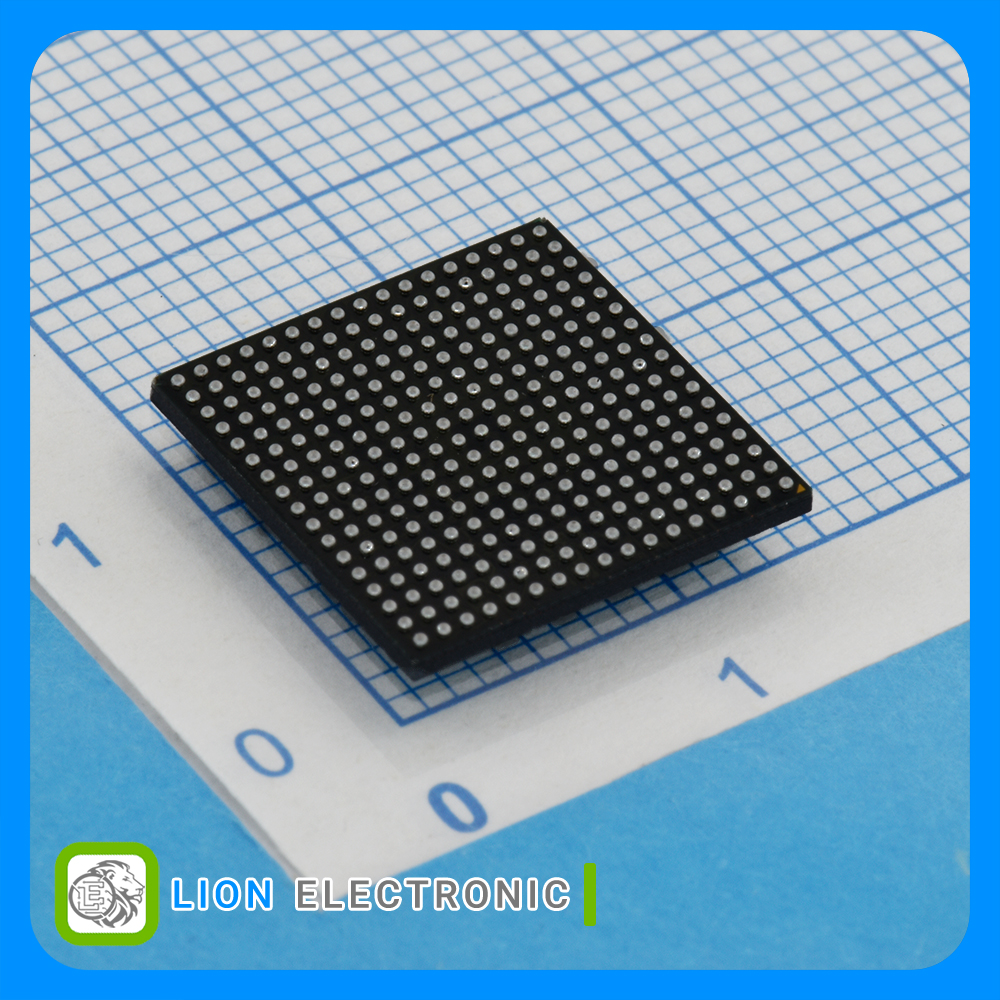

LFBGA-289
Package-Case .
درج شده در توضیحات محصول
Interface Type .
