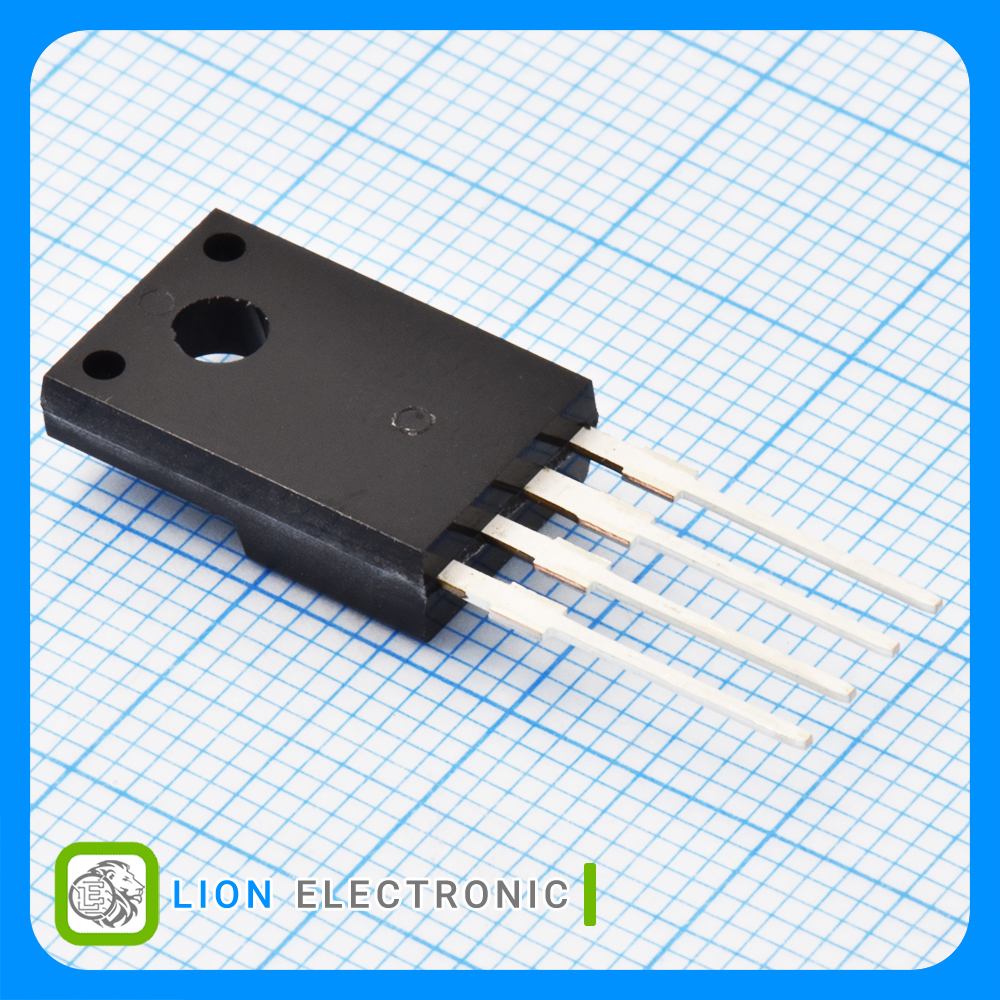

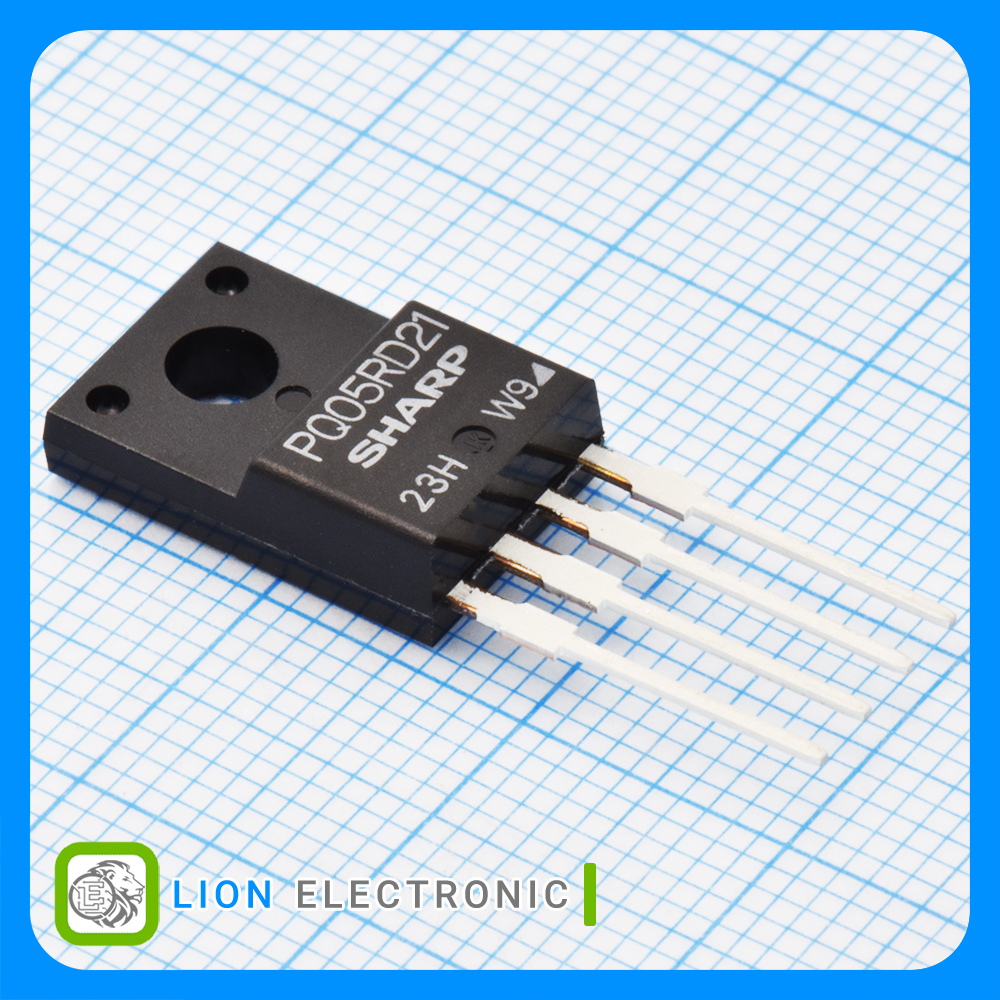

رگولاتور(LDO) PQ05RD21J00H
Detail
PQ05RD21J00H
Part Number .
3008
Lion Part .
Datasheet .
Sharp Microelectronics Manufacture .
رگولاتور(لُو دراپ) 5 ولت 2 آمپر با پکیج TO-220-4 FP
Fixed LDO Voltage Regulator 5V 2A TO-220-4 FP
مشخصات رگولاتور(LDO) PQ05RD21J00H
رگولاتور(LDO) PQ05RD21J00H
Part Number .
1
Number of Outputs .
Positive
Polarity .
-20C
Minimum Operating Temperature .
Tube
Packaging .
55dB
PSRR - Ripple Rejection - Typ .
Through Hole
Mounting Style .
Fixed
Output Type .
+80C
Maximum Operating Temperature .
20V
Input Voltage Max .
0.1%
Line Regulation .
0.1%
Load Regulation .
500mV
Dropout Voltage .
10mA
Quiescent Current .
7V
Input Voltage Min .
2A
Output Current .
5V
Output Voltage .
TO-220-4 FP
Package-Case .
