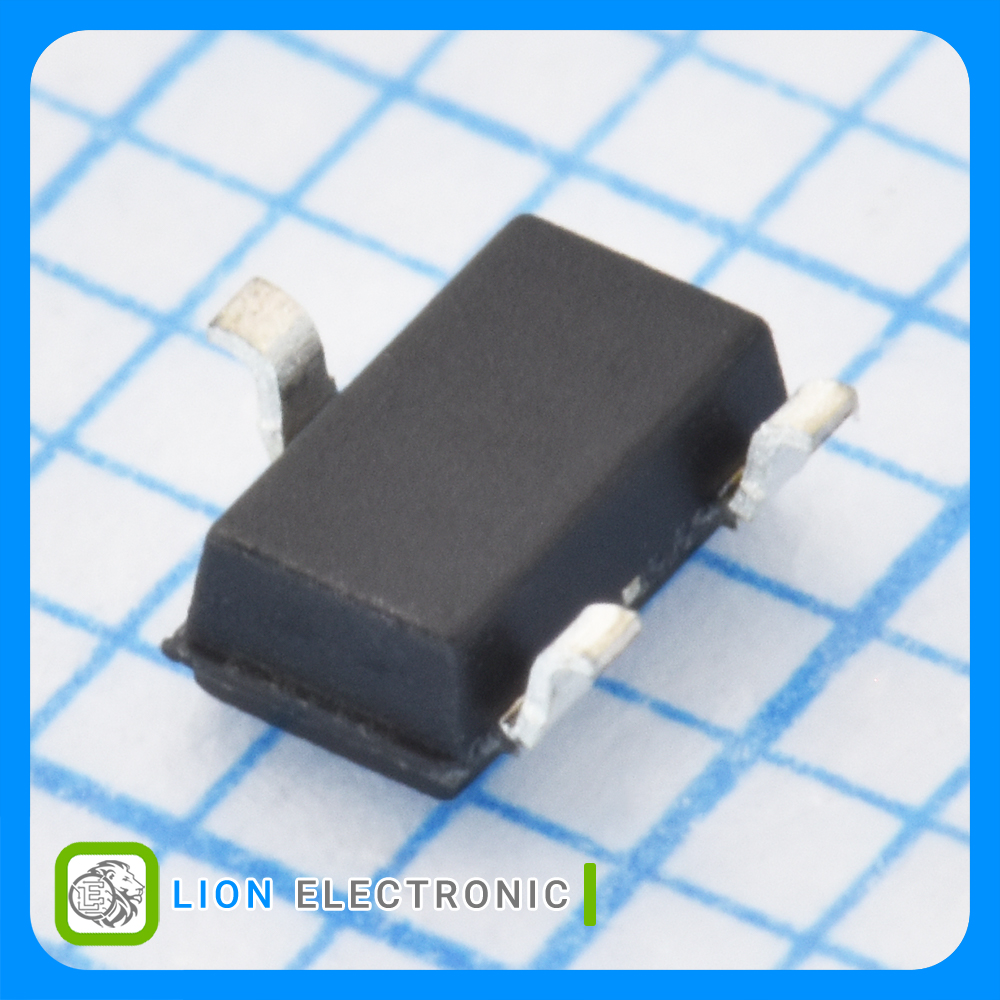

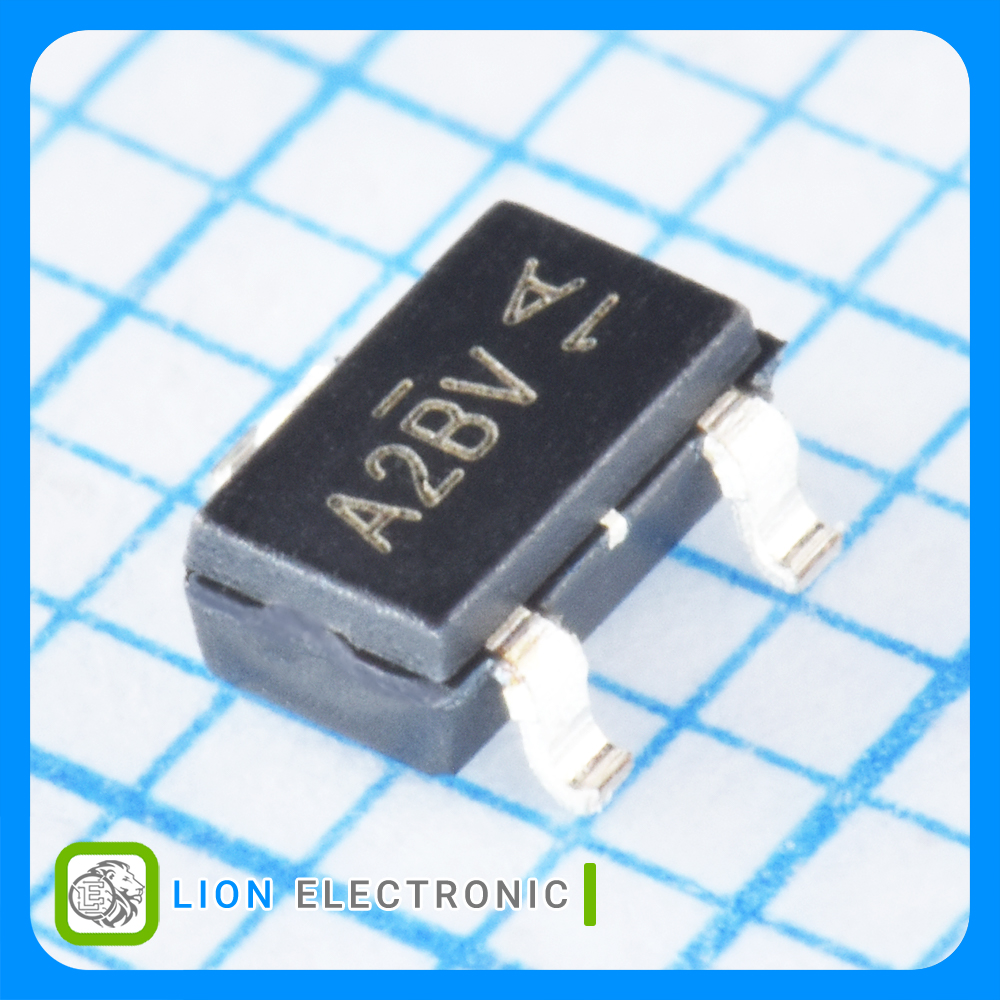

ماسفت AO3402
Detail
AO3402
Part Number .
3259
Lion Part .
Datasheet .
Alpha & Omega Semiconductor Manufacture .
ماسفت 30 ولت 4 آمپر نوع N با پکیج SOT-23-3
N-CH MOS 30V 4A SOT-23-3
مشخصات ماسفت AO3402
ماسفت AO3402
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
Reel
Packaging .
±12V
Vgs - Gate - Source Voltage .
SMD/SMT
Mounting Style .
30V
Vds - Drain - Source Breakdown Voltage .
500mV
Vgs th - Gate - Source Threshold Voltage .
Single
Configuration .
10nC
Qg - Gate Charge .
1.4W
Pd - Power Dissipation .
4A
Id - Continuous Drain Current .
43mΩ
Rds On - Drain - Source Resistance .
SOT-23-3
Package-Case .
