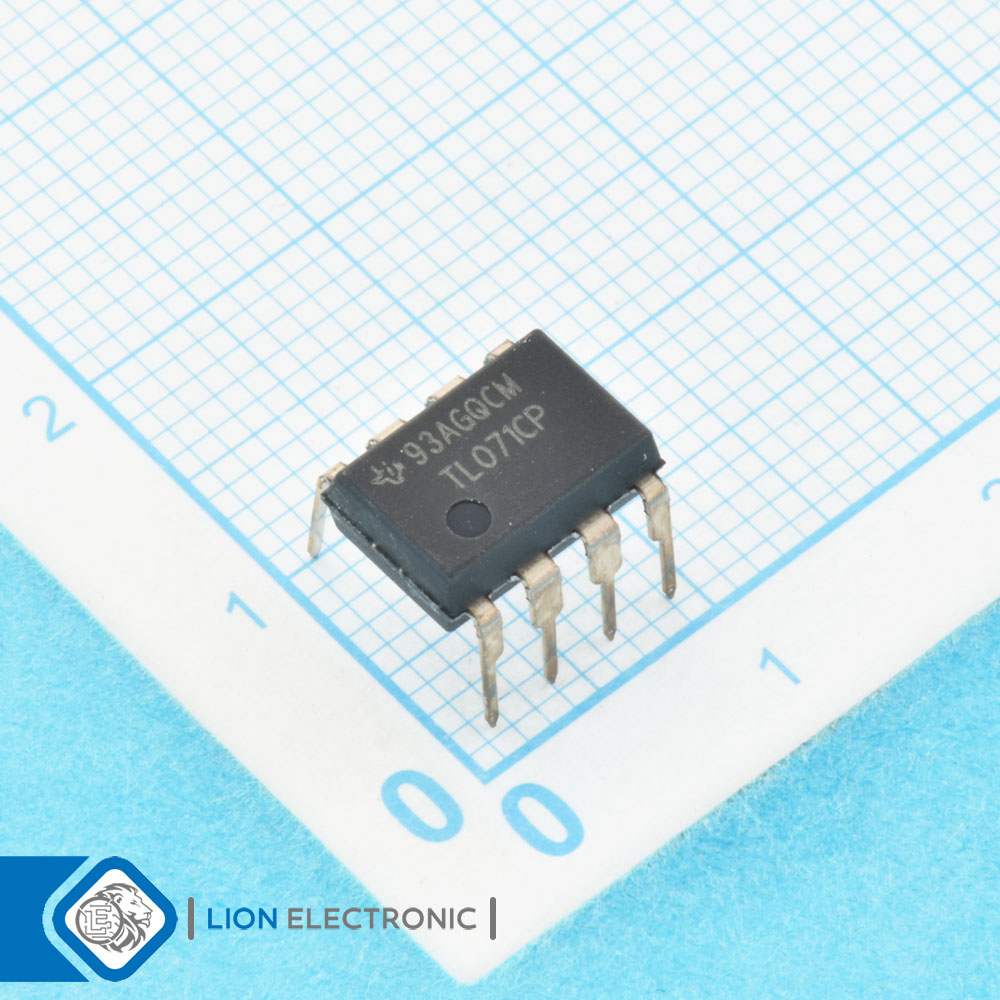

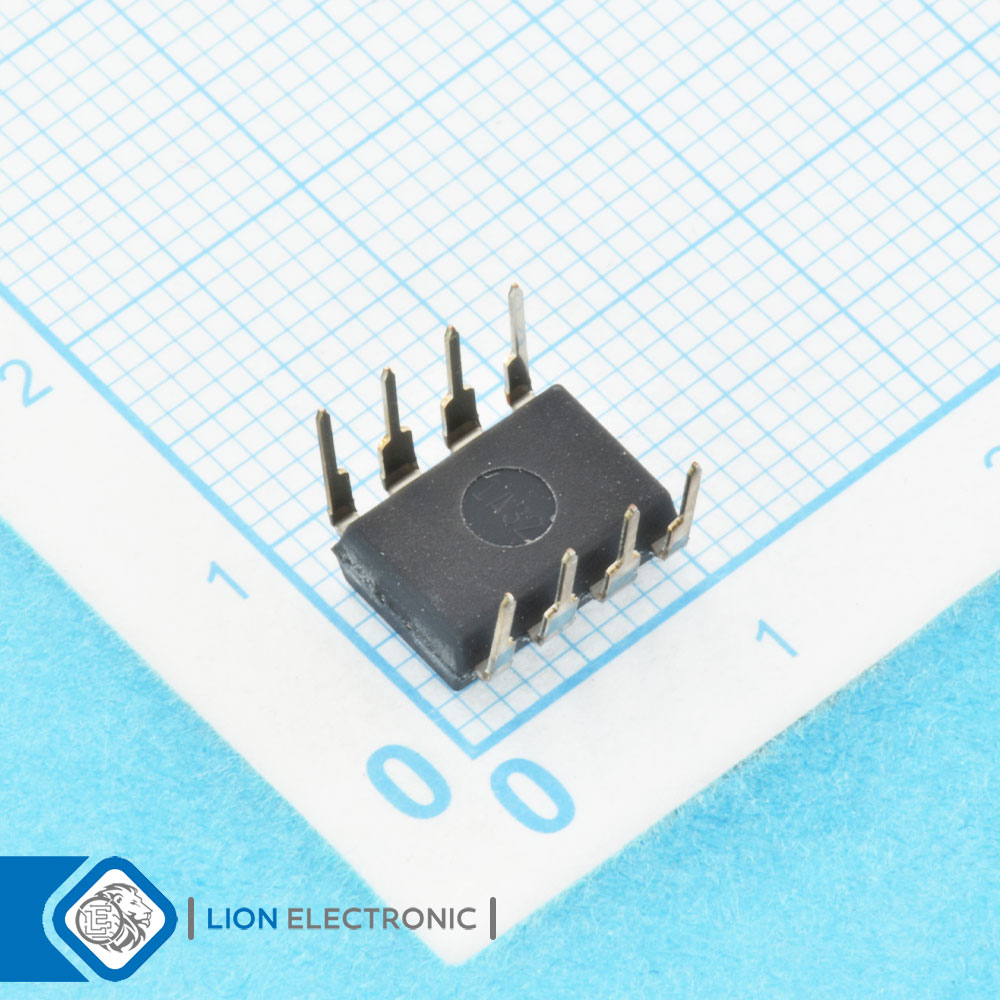

آپ امپ TL071CP
Detail
TL071CP
Part Number .
405
Lion Part .
Datasheet .
Texas Instruments Manufacture .
تقویت کننده عملیاتی 1 کاناله کم نویز با مصرف توان پایین با پکیج PDIP-8
Single, Low-Noise, JFET-Input, Low Power Consumption Operational Amplifiers PDIP-8
مشخصات آپ امپ TL071CP
آپ امپ TL071CP
Part Number .
1
Number of Channels .
No Shutdown
Shutdown .
-40C
Minimum Operating Temperature .
10mA
Output Current per Channel .
Tube
Packaging .
Through Hole
Mounting Style .
+85C
Maximum Operating Temperature .
70dB to 100dB
CMRR - Common Mode Rejection Ratio .
200pA
Ib - Input Bias Current .
3MHz
GBP - Gain Bandwidth Product .
13V/us
SR - Slew Rate .
3mV
Vos - Input Offset Voltage .
36V
Supply Voltage - Max .
7V
Supply Voltage - Min .
DIP-8
Package-Case .
1.4mA
Operating Supply Current .
