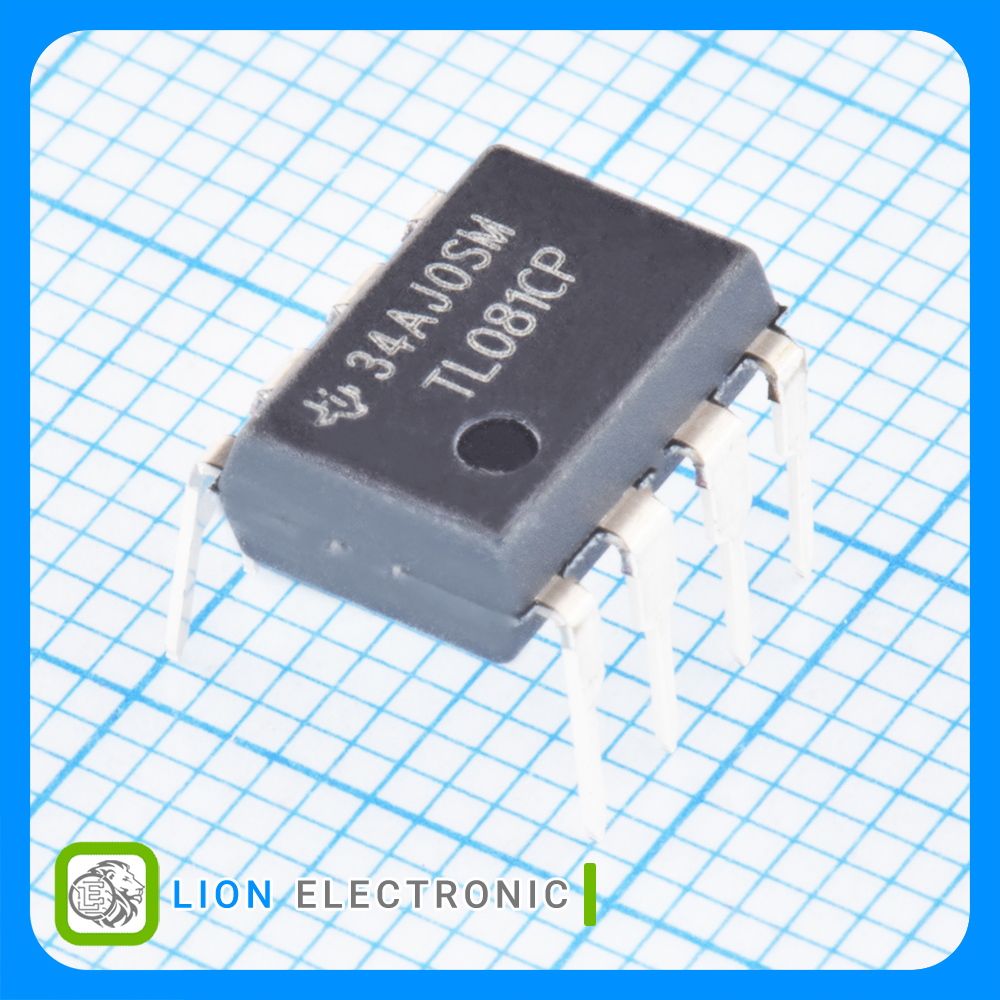

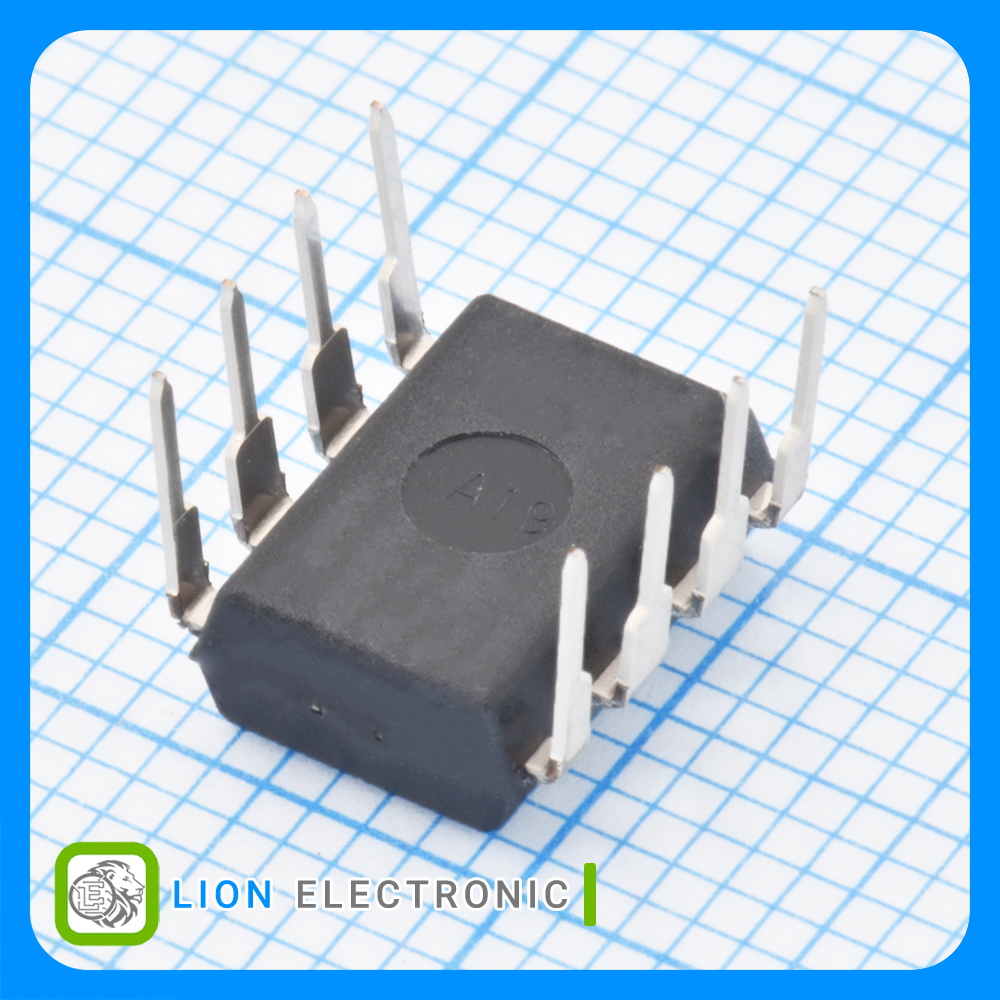

آپ امپ TL081CP
Detail
TL081CP
Part Number .
406
Lion Part .
Datasheet .
Texas Instruments Manufacture .
تقویت کننده عملیاتی 1 کاناله با پکیج PDIP-8
JFET-Input Operational Amplifiers PDIP-8
مشخصات آپ امپ TL081CP
آپ امپ TL081CP
Part Number .
1
Number of Channels .
No Shutdown
Shutdown .
-40C
Minimum Operating Temperature .
Tube
Packaging .
10mA
Output Current per Channel .
Through Hole
Mounting Style .
+85C
Maximum Operating Temperature .
70dB to 86dB
CMRR - Common Mode Rejection Ratio .
400pA
Ib - Input Bias Current .
3MHz
GBP - Gain Bandwidth Product .
13V/us
SR - Slew Rate .
3mV
Vos - Input Offset Voltage .
30V
Supply Voltage - Max .
7V
Supply Voltage - Min .
DIP-8
Package-Case .
1.4mA
Operating Supply Current .
