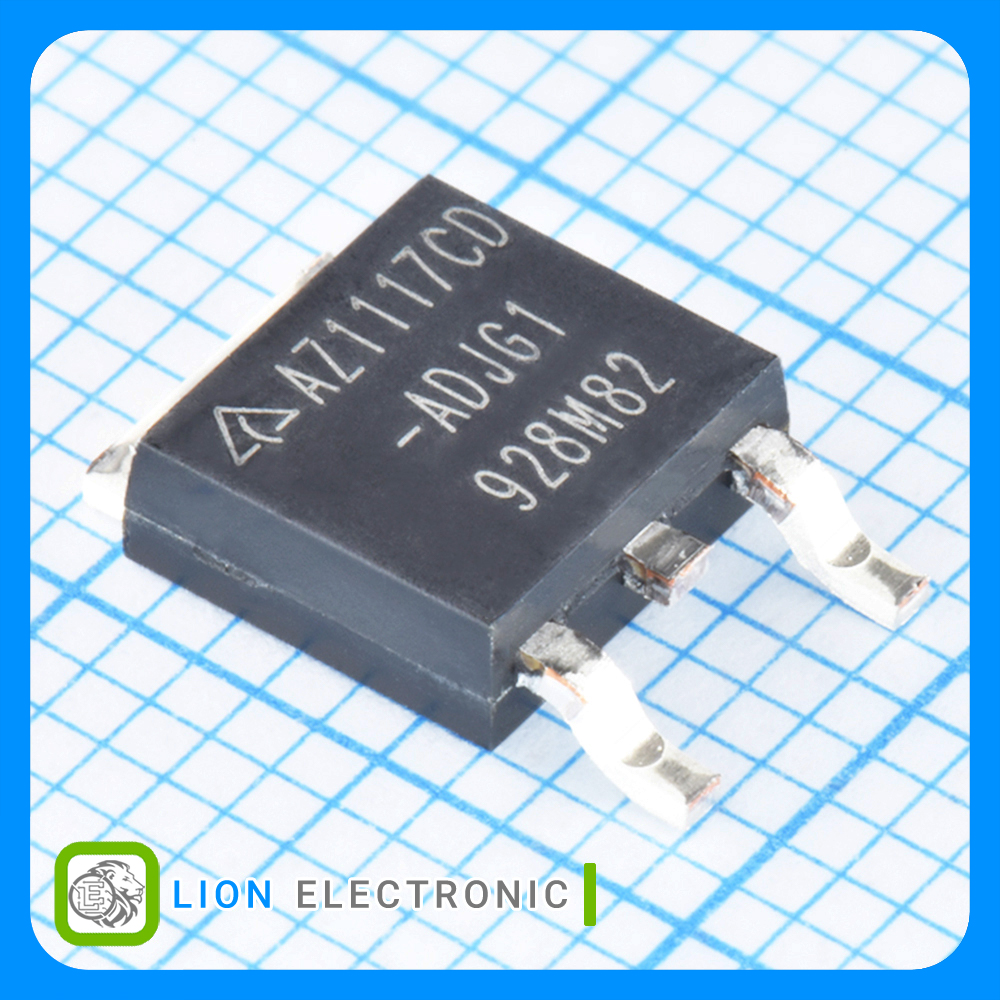

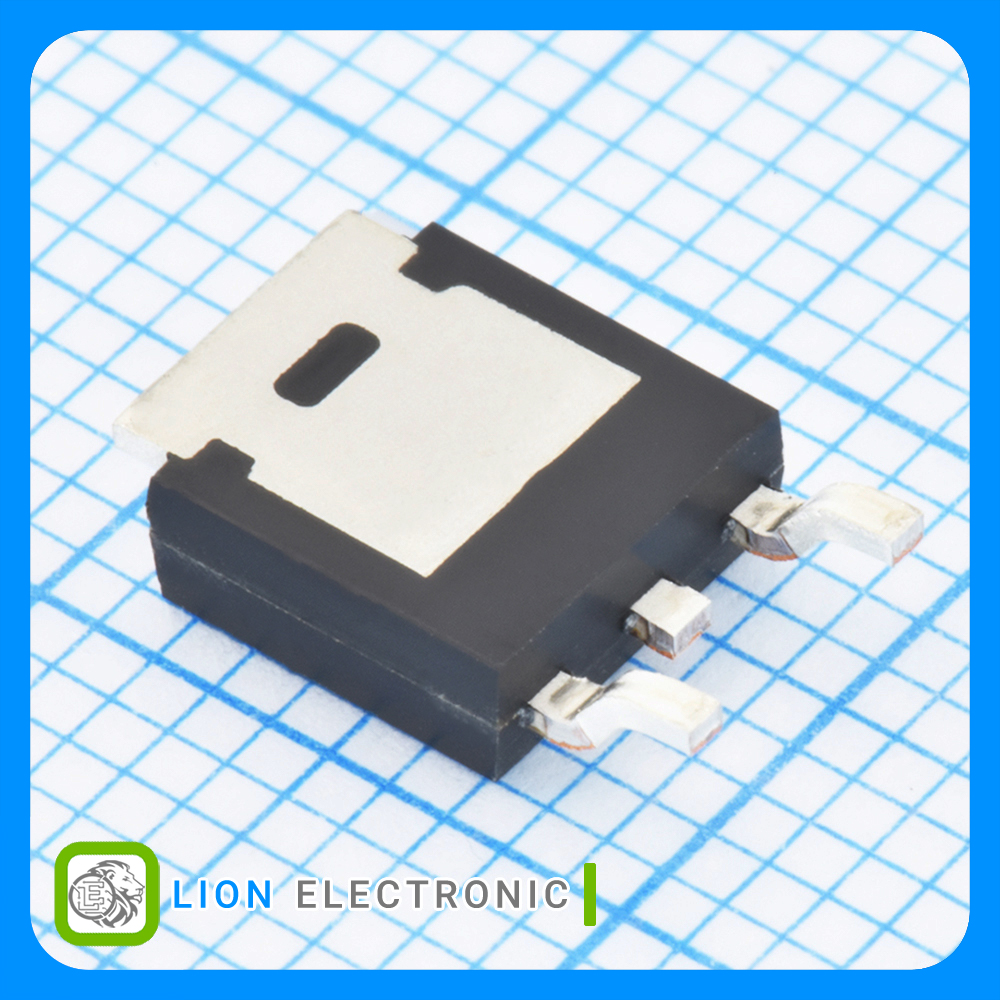

رگولاتور(LDO) AZ1117CD-ADJTRG1
Detail
AZ1117CD-ADJTRG1
Part Number .
4200
Lion Part .
Datasheet .
Diodes Incorporated Manufacture .
رگولاتور(لُو دراپ) با خروجی قابل تنظیم 800 میلی آمپر با پکیج TO-252-3
Adjustable LDO Voltage Regulator 800mA High Speed, Extremely Low Noise TO-252-3
مشخصات رگولاتور(LDO) AZ1117CD-ADJTRG1
رگولاتور(LDO) AZ1117CD-ADJTRG1
Part Number .
Adjustable
Output Voltage .
1
Number of Outputs .
Reel
Packaging .
Positive
Polarity .
SMD/SMT
Mounting Style .
+125C
Maximum Operating Temperature .
-20C
Minimum Operating Temperature .
Adjustable
Output Type .
15V
Input Voltage Max .
70dB
PSRR - Ripple Rejection - Typ .
3.2V
Input Voltage Min .
1.25V
Dropout Voltage .
6mA
Quiescent Current .
800mA
Output Current .
DPAK
Package-Case .
