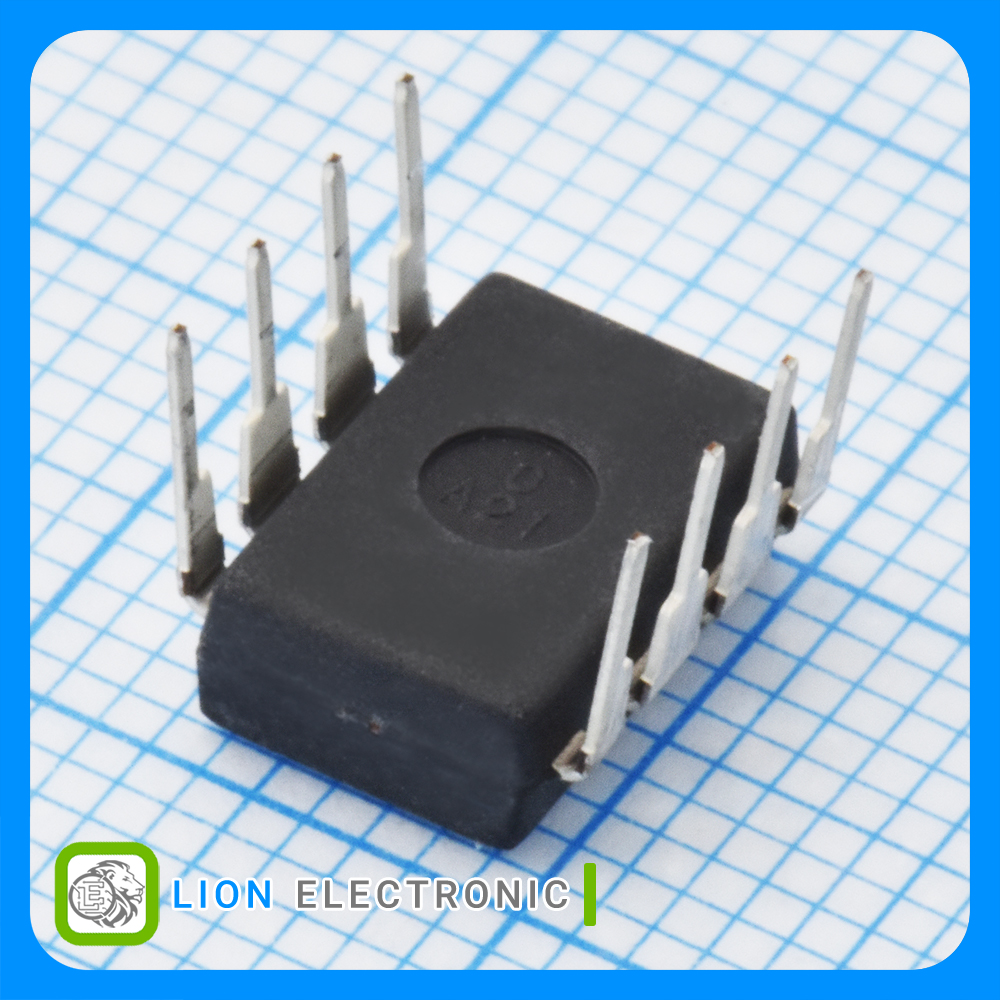

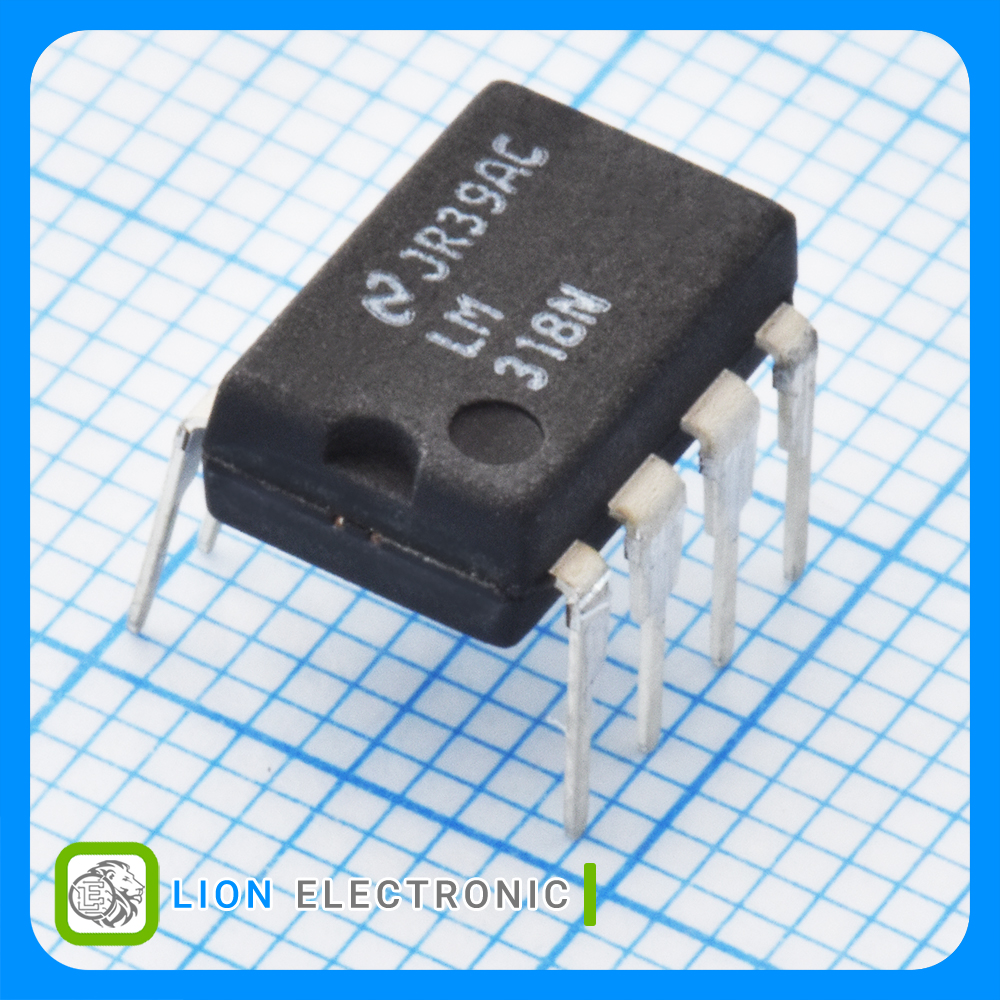

آپ امپ LM318N
Detail
LM318N
Part Number .
430
Lion Part .
Datasheet .
National Semiconductor Manufacture .
تقویت کننده عملیاتی 1 کاناله با پکیج PDIP-8
Single Channel Operational Amplifiers PDIP-8
مشخصات آپ امپ LM318N
آپ امپ LM318N
Part Number .
No Shutdown
Shutdown .
1
Number of Channels .
Tube
Packaging .
Through Hole
Mounting Style .
0C
Minimum Operating Temperature .
70dB
CMRR - Common Mode Rejection Ratio .
+70C
Maximum Operating Temperature .
N/A
Output Current per Channel .
15MHz
GBP - Gain Bandwidth Product .
4mV
Vos - Input Offset Voltage .
70V/us
SR - Slew Rate .
500nA
Ib - Input Bias Current .
40V
Supply Voltage - Max .
10V
Supply Voltage - Min .
DIP-8
Package-Case .
10mA
Operating Supply Current .
