آپ امپ NE5532P
Detail

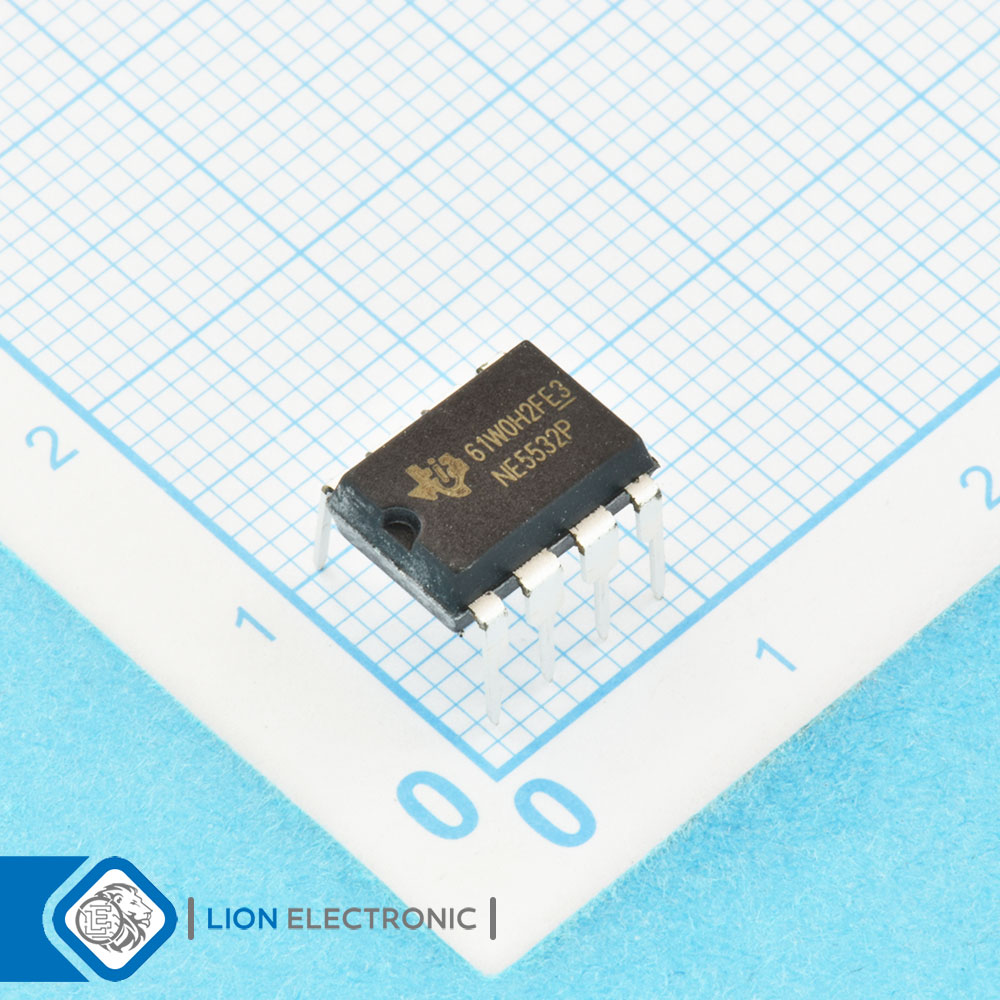

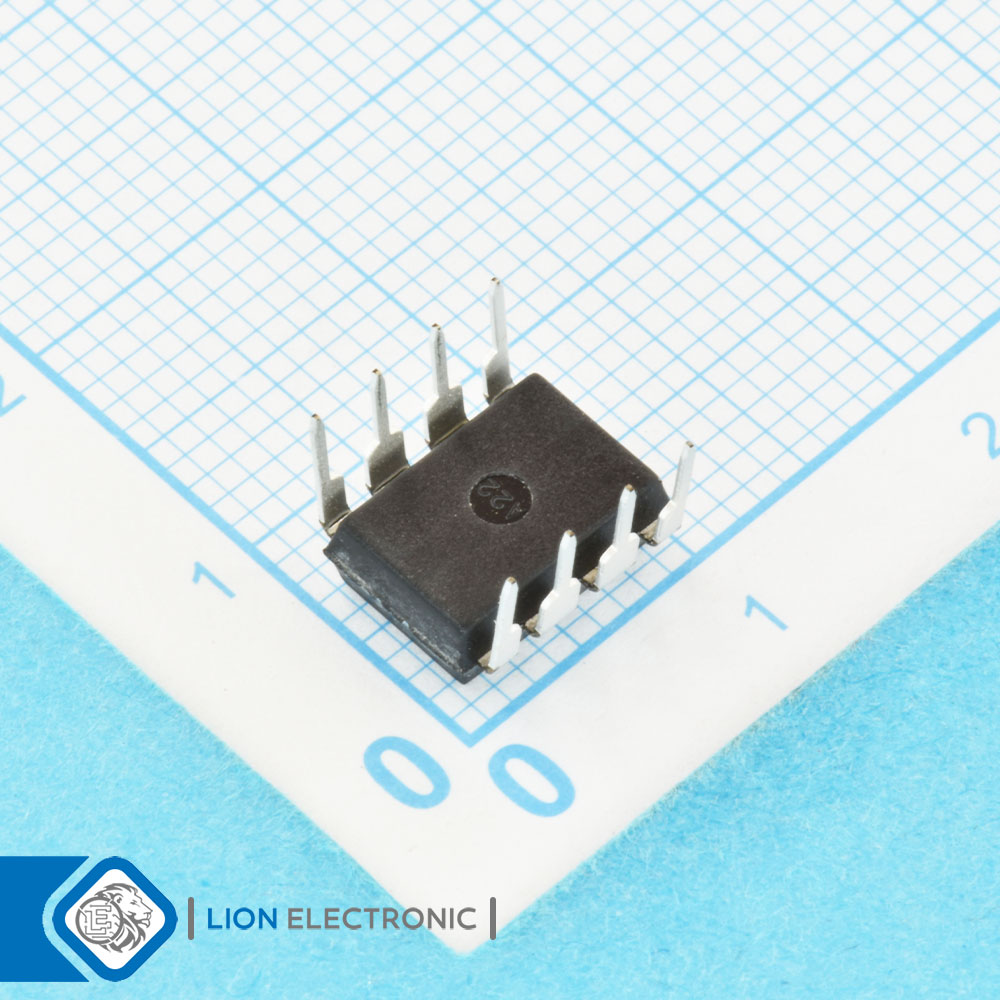

NE5532P
Part Number .
438
Lion Part .
Datasheet .
Texas Instruments Manufacture .
تقویت کننده عملیاتی 2 کاناله با نویز کم با پکیج PDIP-8
Dual Low-Noise Operational Amplifiers PDIP-8
مشخصات آپ امپ NE5532P
آپ امپ NE5532P
Part Number .
No Shutdown
Shutdown .
2
Number of Channels .
0V
Supply Voltage - Min .
Tube
Packaging .
Through Hole
Mounting Style .
0C
Minimum Operating Temperature .
+90C
Maximum Operating Temperature .
70dB 70dB to 100dB
CMRR - Common Mode Rejection Ratio .
38mA
Output Current per Channel .
9V/us
SR - Slew Rate .
10MHz
GBP - Gain Bandwidth Product .
22V
Supply Voltage - Max .
4mV
Vos - Input Offset Voltage .
800nA
Ib - Input Bias Current .
500uA
Operating Supply Current .
DIP-8
Package-Case .
