TOSHIBA
مشخصات رگولاتور(LDO) TCR3UF30A

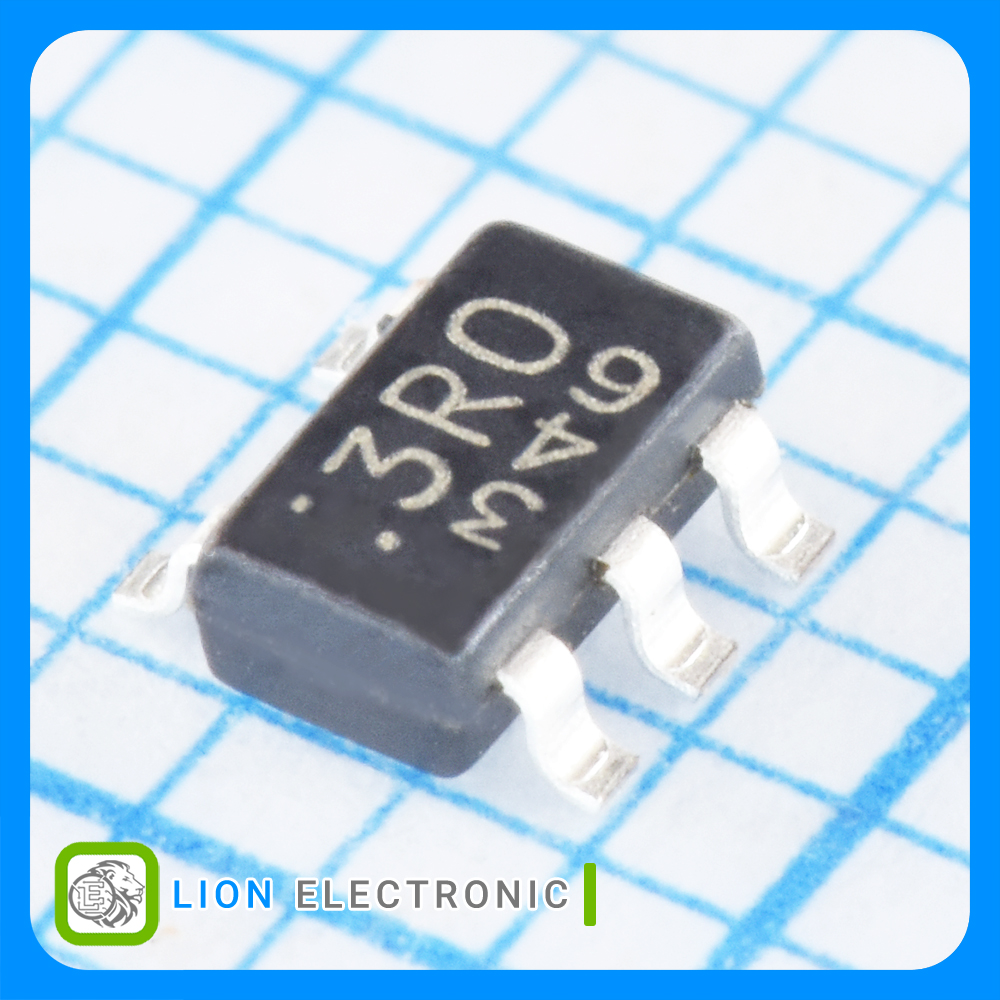

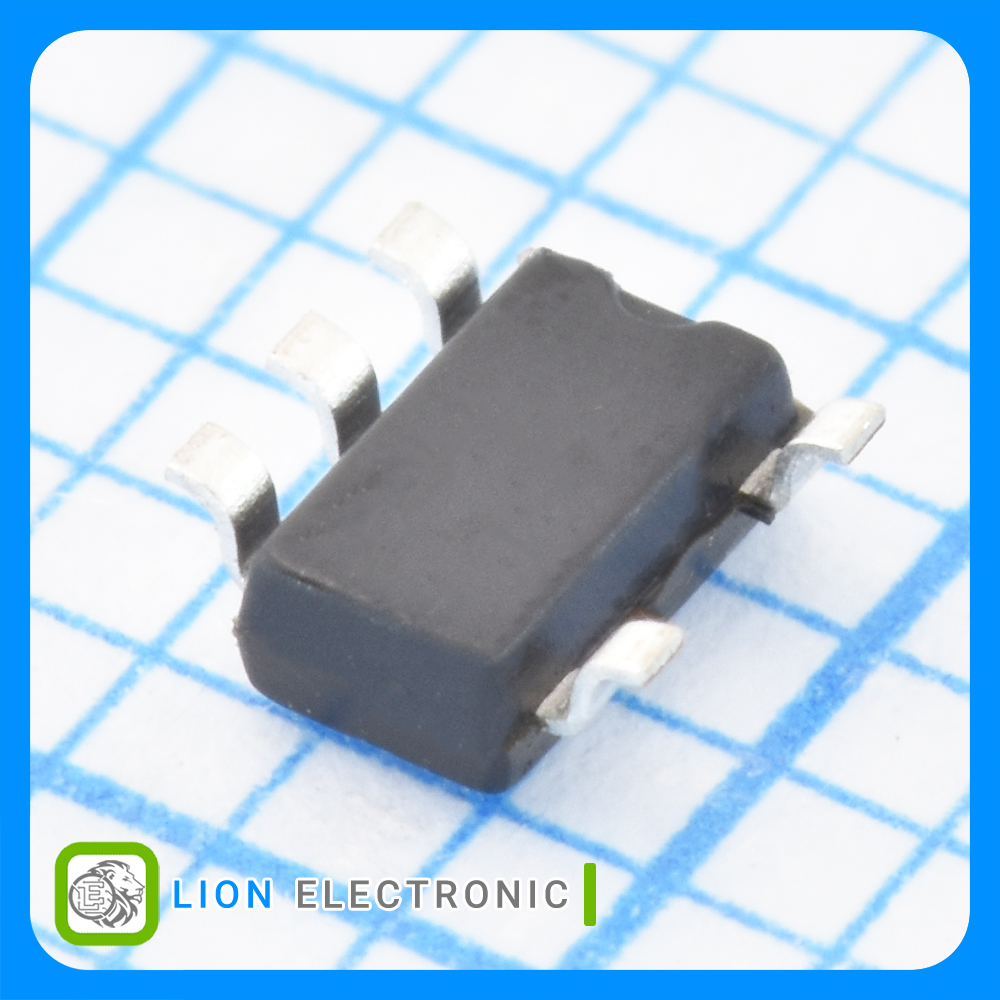

رگولاتور(LDO) TCR3UF30A
Part Number .
1
Number of Outputs .
5V
Input Voltage Max .
340nA
Quiescent Current .
-40C
Minimum Operating Temperature .
Positive
Polarity .
Reel
Packaging .
SMD/SMT
Mounting Style .
206mV
Dropout Voltage .
Fixed
Output Type .
70dB
PSRR - Ripple Rejection - Typ .
+85C
Maximum Operating Temperature .
1.5V
Input Voltage Min .
300mA
Output Current .
3V
Output Voltage .
SOT-25-5
Package-Case .
