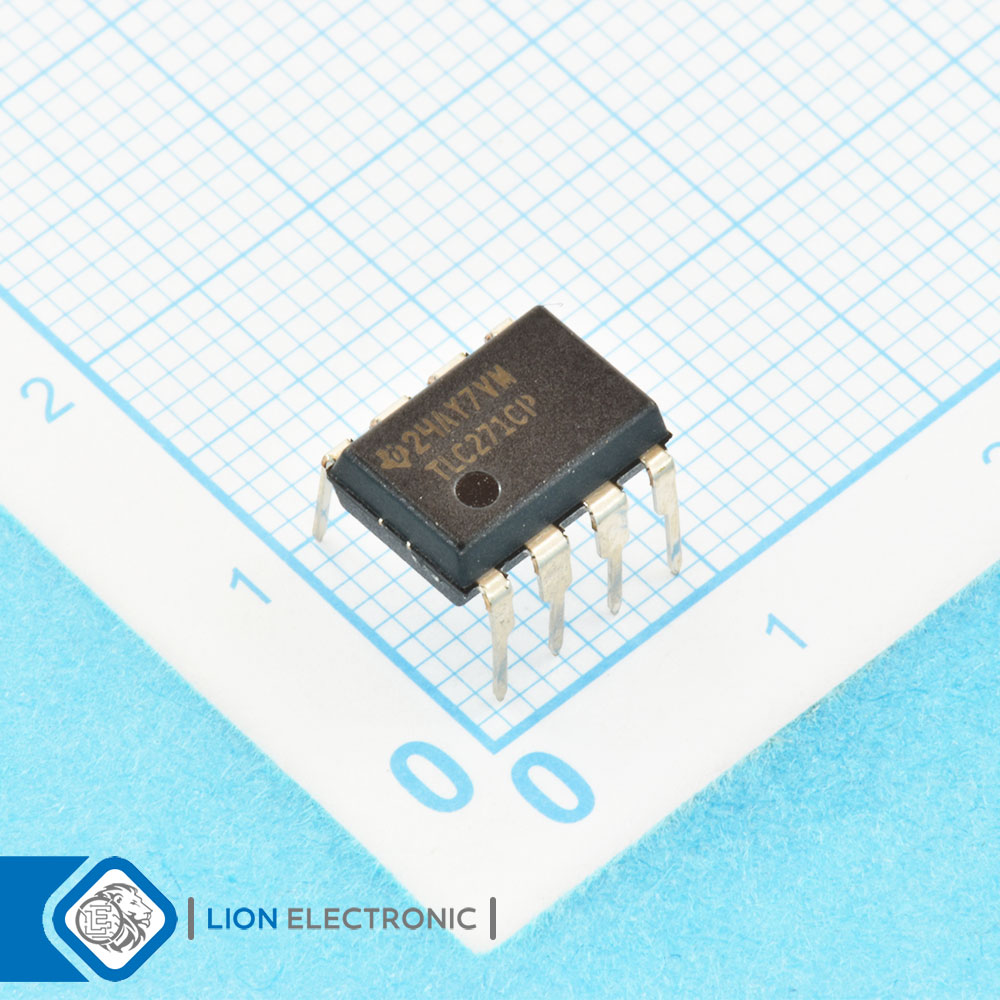

آپ امپ TLC271CP
Detail
TLC271CP
Part Number .
447
Lion Part .
Datasheet .
Texas Instruments Manufacture .
تقویت کننده عملیاتی 1 کاناله با مصرف توان پایین با پکیج PDIP-8
Single LinCMOS Programmable Low-Power Operational Amplifiers PDIP-8
مشخصات آپ امپ TLC271CP
آپ امپ TLC271CP
Part Number .
No Shutdown
Shutdown .
1
Number of Channels .
10mA
Output Current per Channel .
Tube
Packaging .
Through Hole
Mounting Style .
0C
Minimum Operating Temperature .
65dB to 80dB
CMRR - Common Mode Rejection Ratio .
+90C
Maximum Operating Temperature .
60pA
Ib - Input Bias Current .
1.7MHz
GBP - Gain Bandwidth Product .
3.6V/us
SR - Slew Rate .
3V
Supply Voltage - Min .
16V
Supply Voltage - Max .
1.1mV
Vos - Input Offset Voltage .
675uA
Operating Supply Current .
DIP-8
Package-Case .
