Orange Pi
معرفی
| Allwinner H618 Quad-core Cortex-A53 processor 1.5GHz | CPU |
| Mali G31 MP2 Supports OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
GPU |
| 1GB LPDDR4 | Memory |
| 16MB SPI Flash | On-board storage |
| AXP313A | Power management |
| Supports WiFi5 and Bluetooth 5.0 | On-board WiFi + Bluetooth |
| 10M/100M/1000M Ethernet interface | Network |
| 13Pin expansion port supports 2-ch output 1-ch input | Audio input/output |
| Micro HDMI up to 4K@60fps TV-Out:13Pin supports 1-ch TV CVBS output |
Video output |
| 3Pin Debug UART | UART |
| USB 2.0 * 3(two of which lead from the expansion board) | USB |
| Micro SD card interface | SD card interface |
| 26Pin GPIO interface 13Pin GPIO interface |
Expansion interface |
| 5V3A，Type-c connector | Power input |
| Android 12 TV，Debian11，Debian12，Ubuntu22.04，Ubuntu20.04 | OS Support |
| 50mm*55mm | PCB |

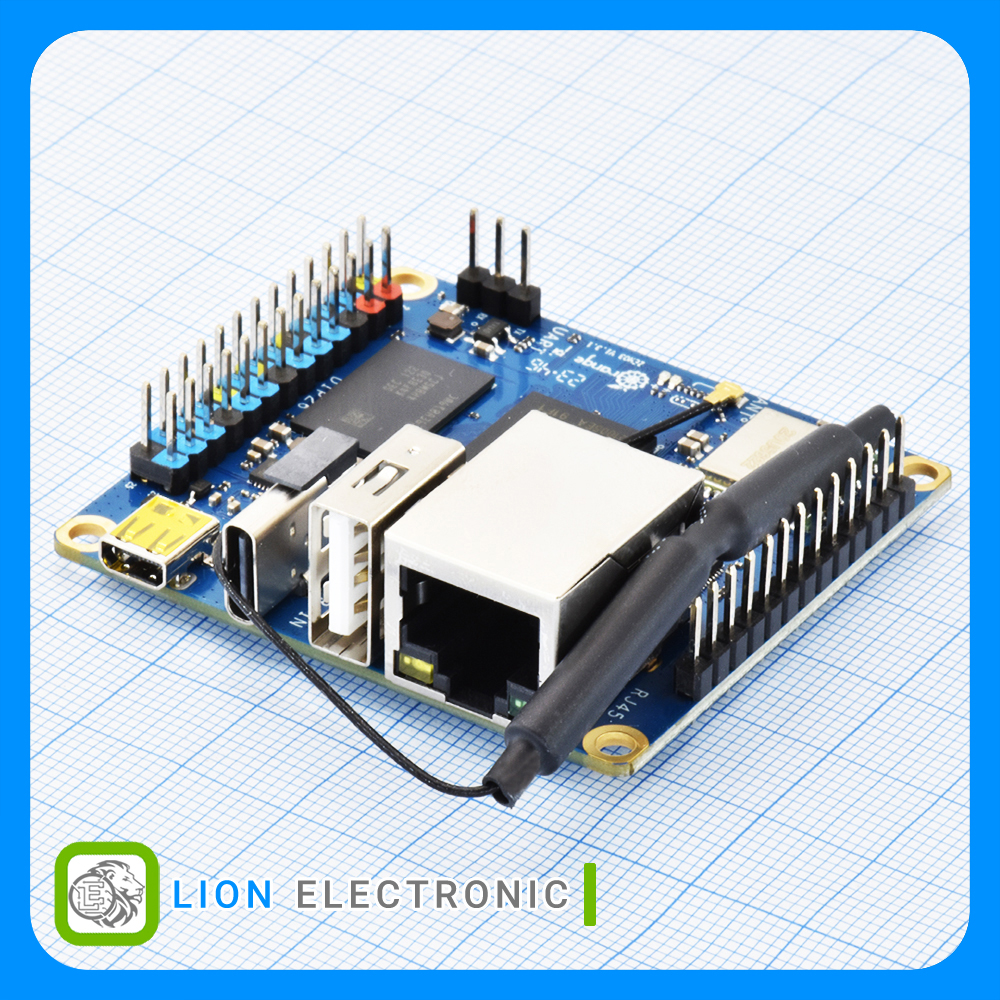

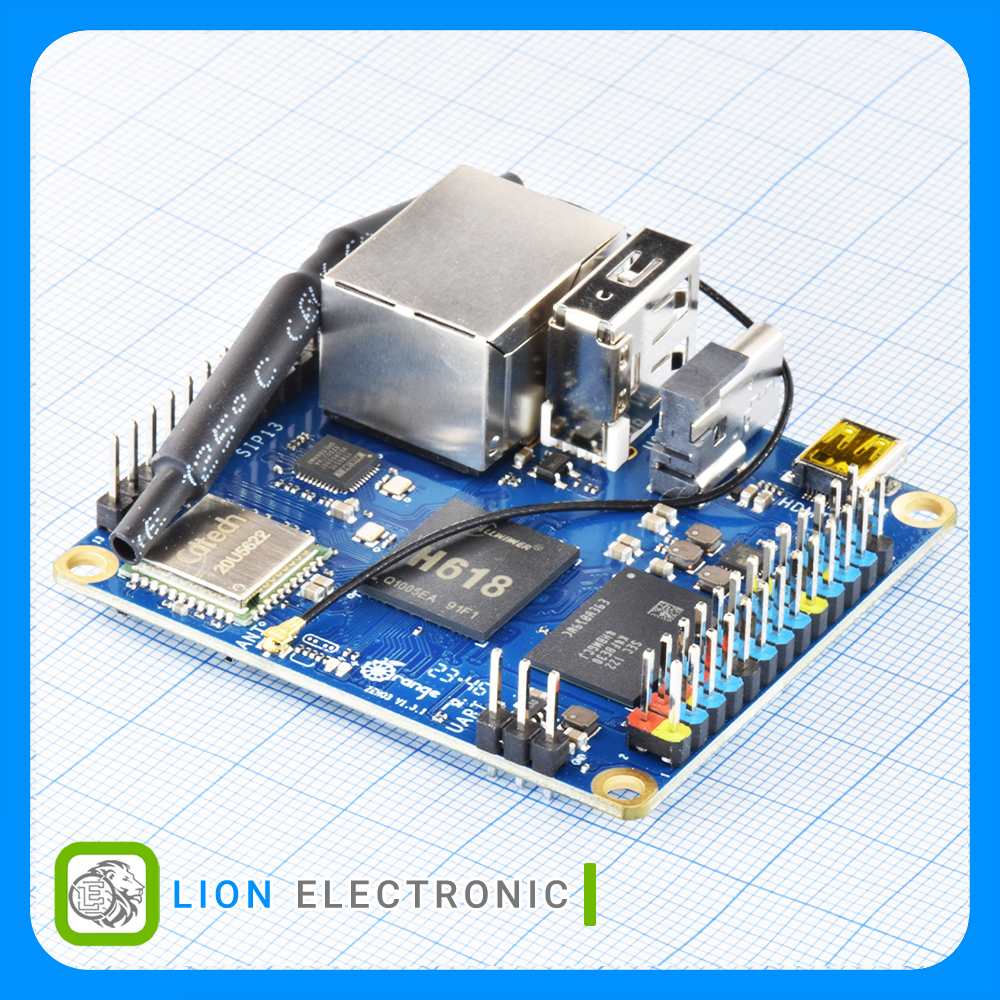

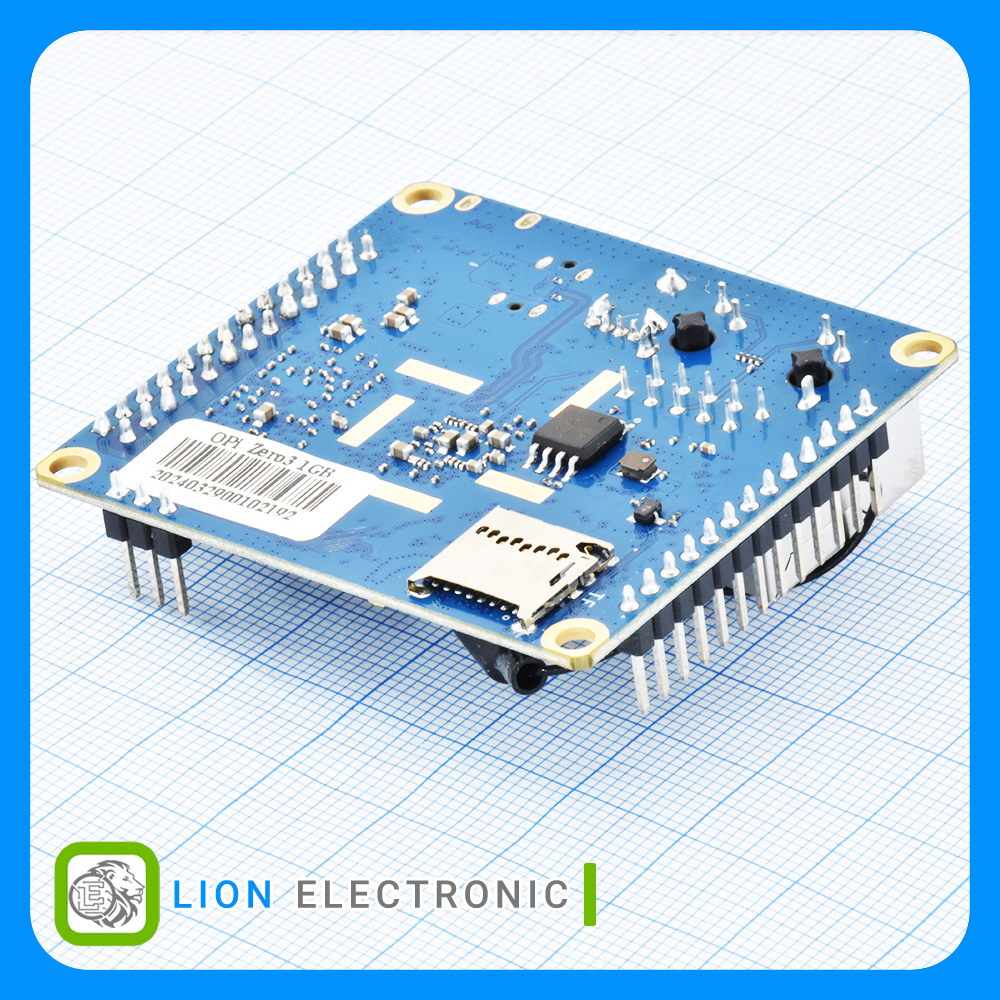

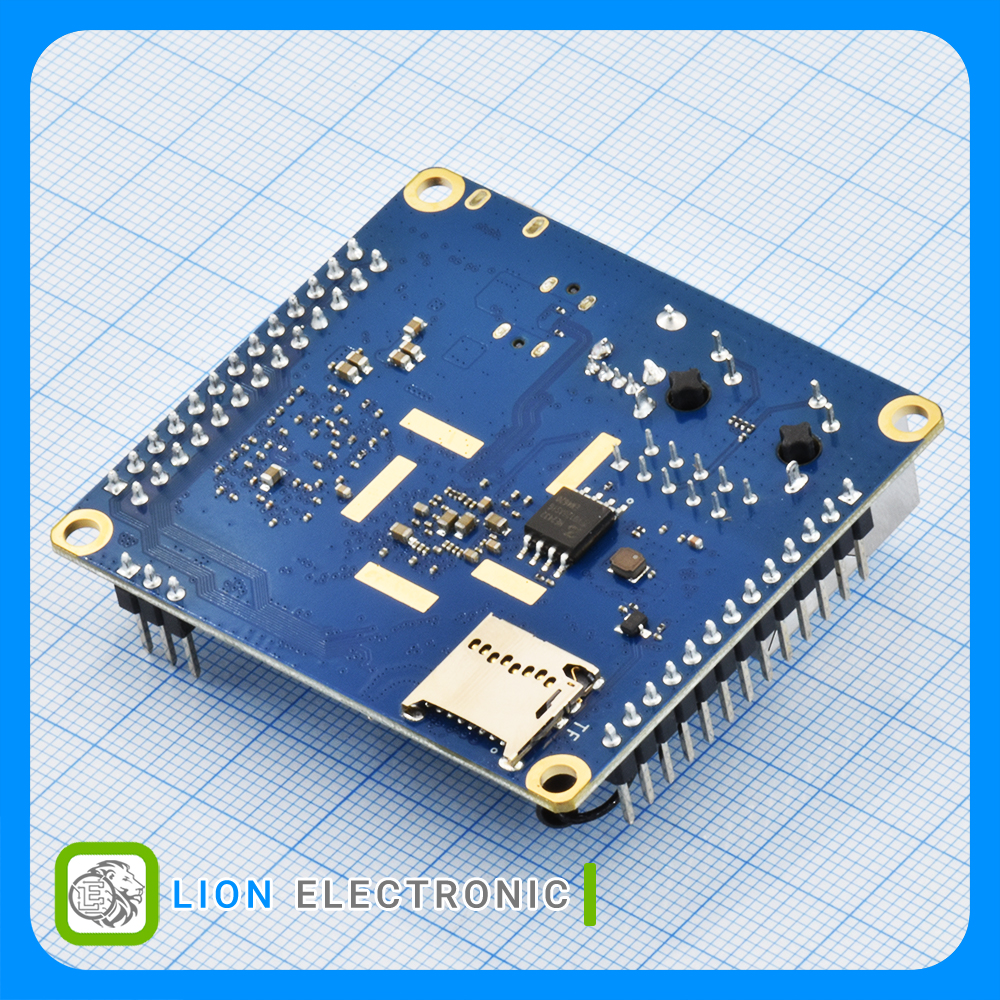

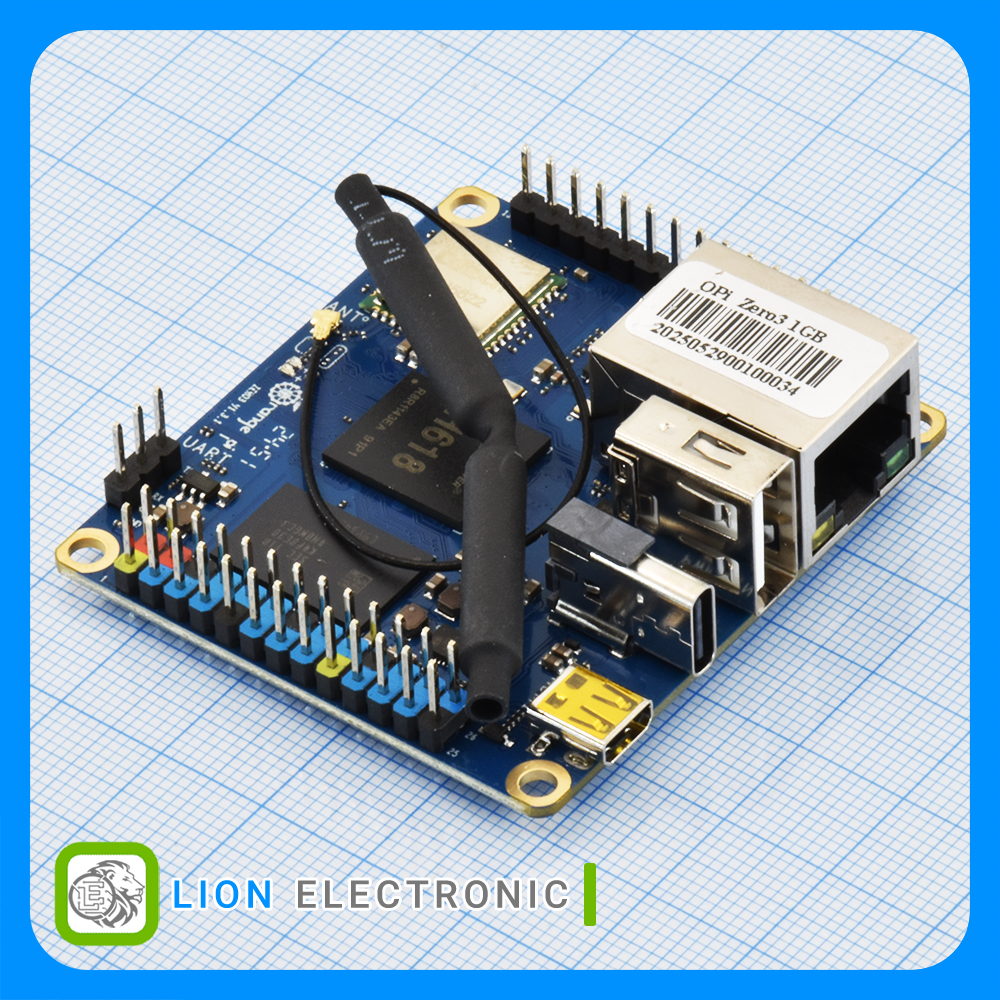

مشخصات کامپیوتر کوچک تک بردی Orange Pi Zero3(1GB)
کامپیوتر کوچک تک بردی Orange Pi Zero3(1GB)
Part Number .
N/A
Maximum RAM Capacity .
ARM
Processor Type .
Allwinner Technology
Processor Brand .
Allwinner H618
Chipsets .
N/A
Cache Memory .
1GB
Installed RAM .
0C
Minimum Operating Temperature .
+70C
Maximum Operating Temperature .
1.5GHz
Frequency .
Single Board Computer
Product Type .
50 x55mm
Dimensions .
درج شده در توضیحات محصول
Interface Type .
5V
Operating Supply Voltage .
