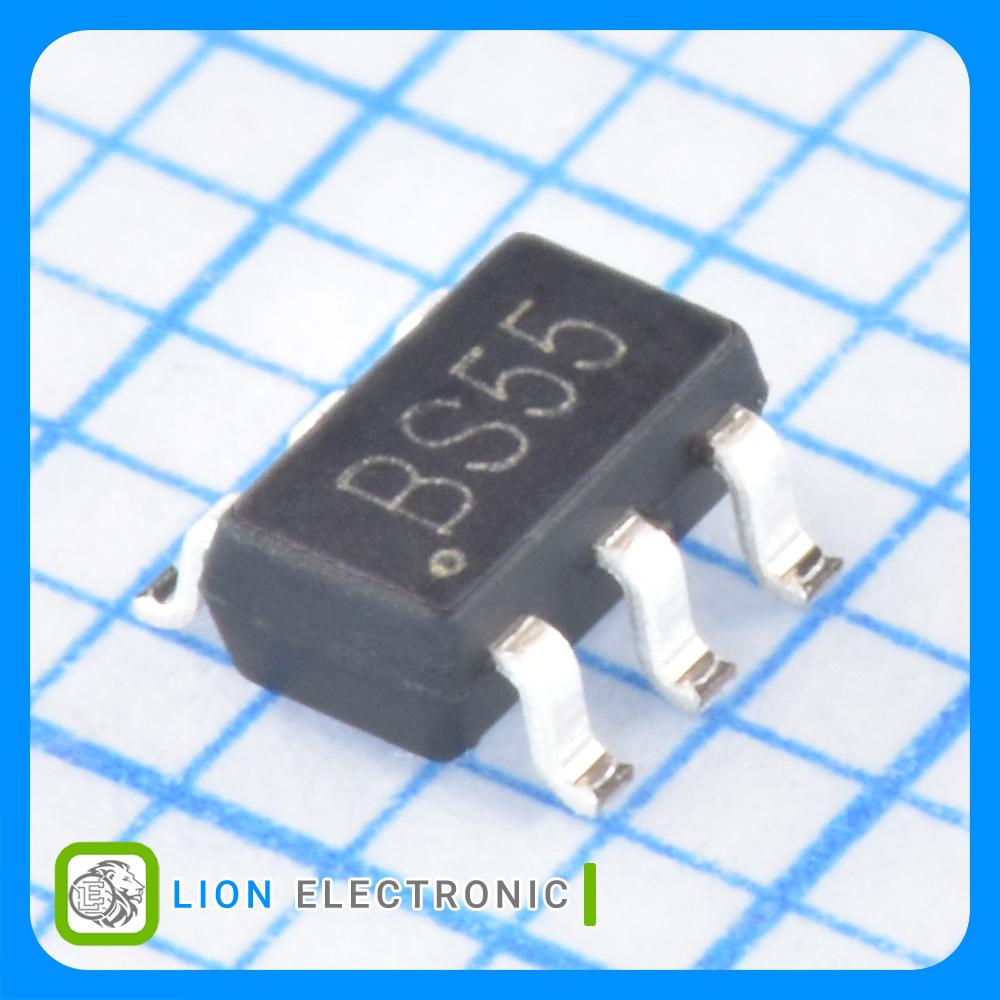

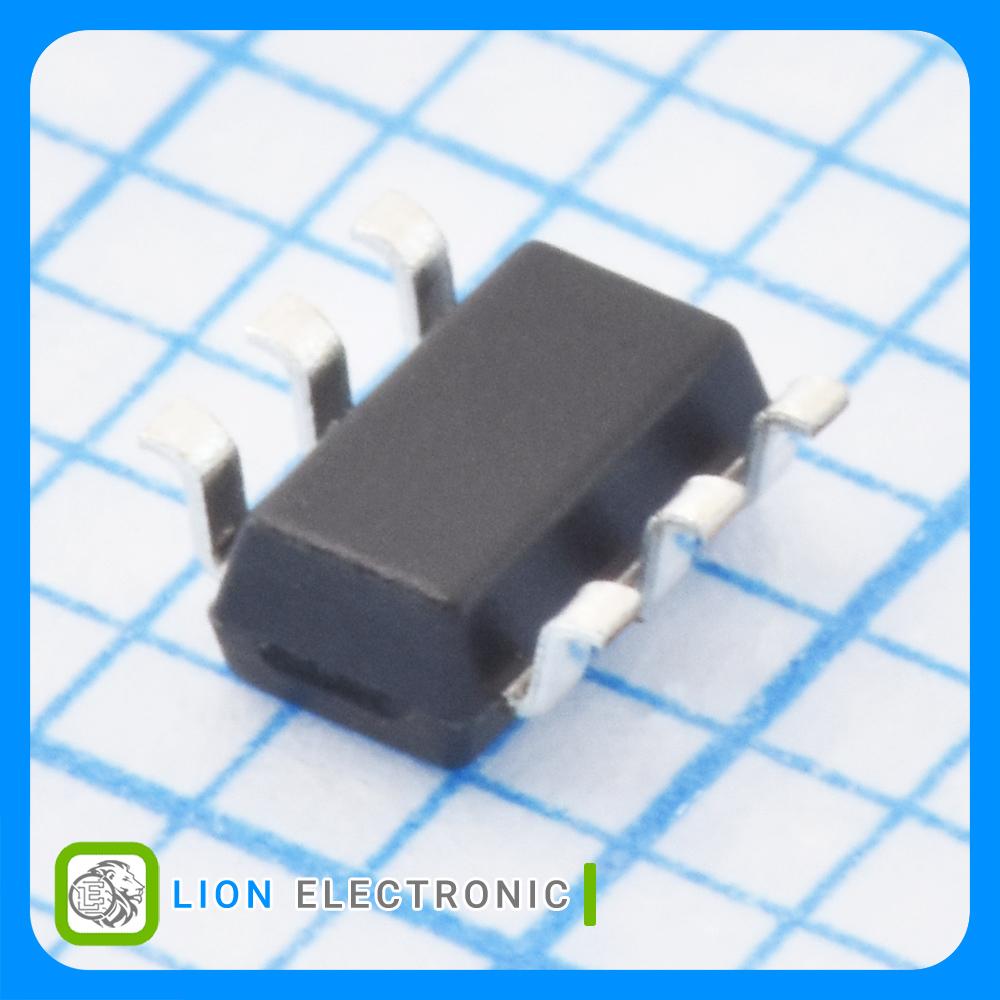

دیود TVS چهار کانال دو جهته ESDA6V1BC6
Detail
ESDA6V1BC6
Part Number .
4508
Lion Part .
Datasheet .
STMicroelectronics Manufacture .
دیود TVS آرایهای 5 ولت با پکیج SOT-23-6
Quad Bidirectional Suppressor for ESD Protection 5V SOT-23-6
مشخصات دیود TVS چهار کانال دو جهته ESDA6V1BC6
دیود TVS چهار کانال دو جهته ESDA6V1BC6
Part Number .
Bidirectional
Polarity .
8kV
Vesd - Voltage ESD Contact .
15kV
Vesd - Voltage ESD Air Gap .
5V
Working Voltage .
SMD/SMT
Termination style .
Reel
Packaging .
-40C
Minimum Operating Temperature .
4
Number of Channels .
80W
Pppm - Peak Pulse Power Dissipation .
+125C
Maximum Operating Temperature .
3A
Ipp - Peak Pulse Current .
6.1V
Breakdown Voltage .
20pF
Cd - Diode Capacitance .
ESD Suppressors / TVS Diodes
Product Type .
N/A
Clamping Voltage .
SOT-23-6
Package-Case .
