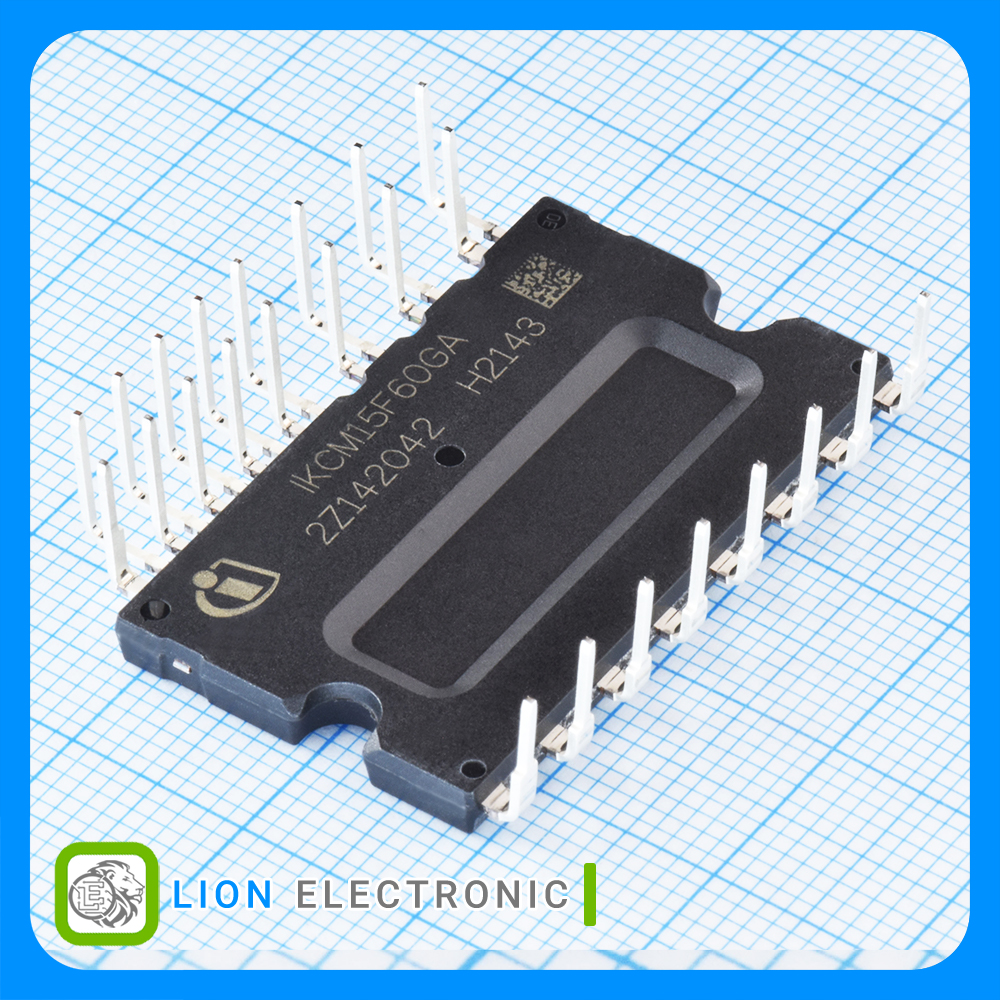

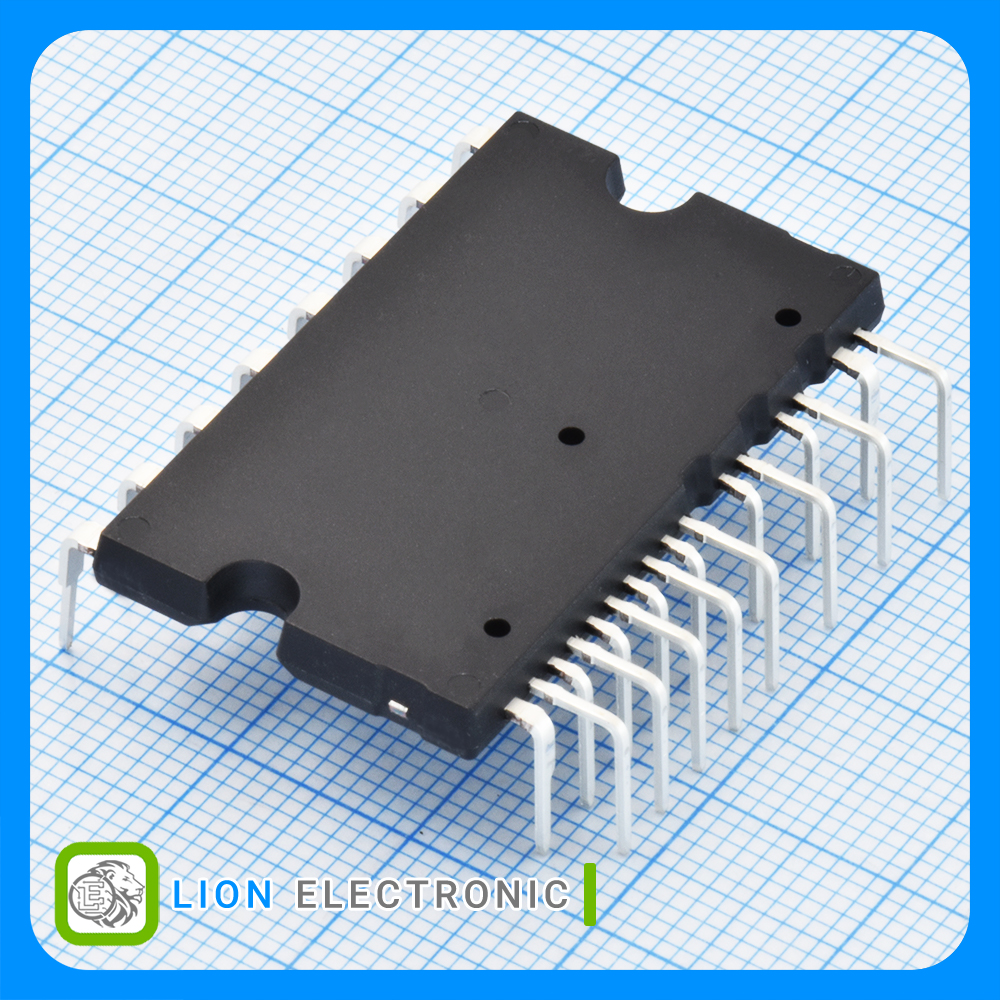

ماژول IGBT سه فاز IKCM15F60GA
Detail
IKCM15F60GA
Part Number .
4525
Lion Part .
Datasheet .
Infineon Technologies Manufacture .
ماژول آی جی بی تی سه فاز به همراه مدارات گیت درایور و محافظ
Dual In-Line Intelligent Power Module 3Φ -bridge 600V / 15A DIP 36x21D
معرفی
System Configuration
- 3 half bridges with TRENCHSTOP™ IGBTs and anti parallel diodes
- 3Φ SOI gate driver
- Thermistor
- Pin-to-heatsink clearance distance typ. 1.6mm
مشخصات ماژول IGBT سه فاز IKCM15F60GA
ماژول IGBT سه فاز IKCM15F60GA
Part Number .
1.6 x 2.0mm
Package-Case .
15A
Continuous Collector Current aT 25 c .
-40C
Minimum Operating Temperature .
-
Gate - Emitter Leakage Current .
+125C
Maximum Operating Temperature .
Tube
Packaging .
3-Phase
Configuration .
1.55V
Collector - Emitter Saturation Voltage .
600V
Collector - Emitter Voltage VCEO Max .
Fan / Motor Controllers / Drivers
Product .
27.4W
Pd - Power Dissipation .
