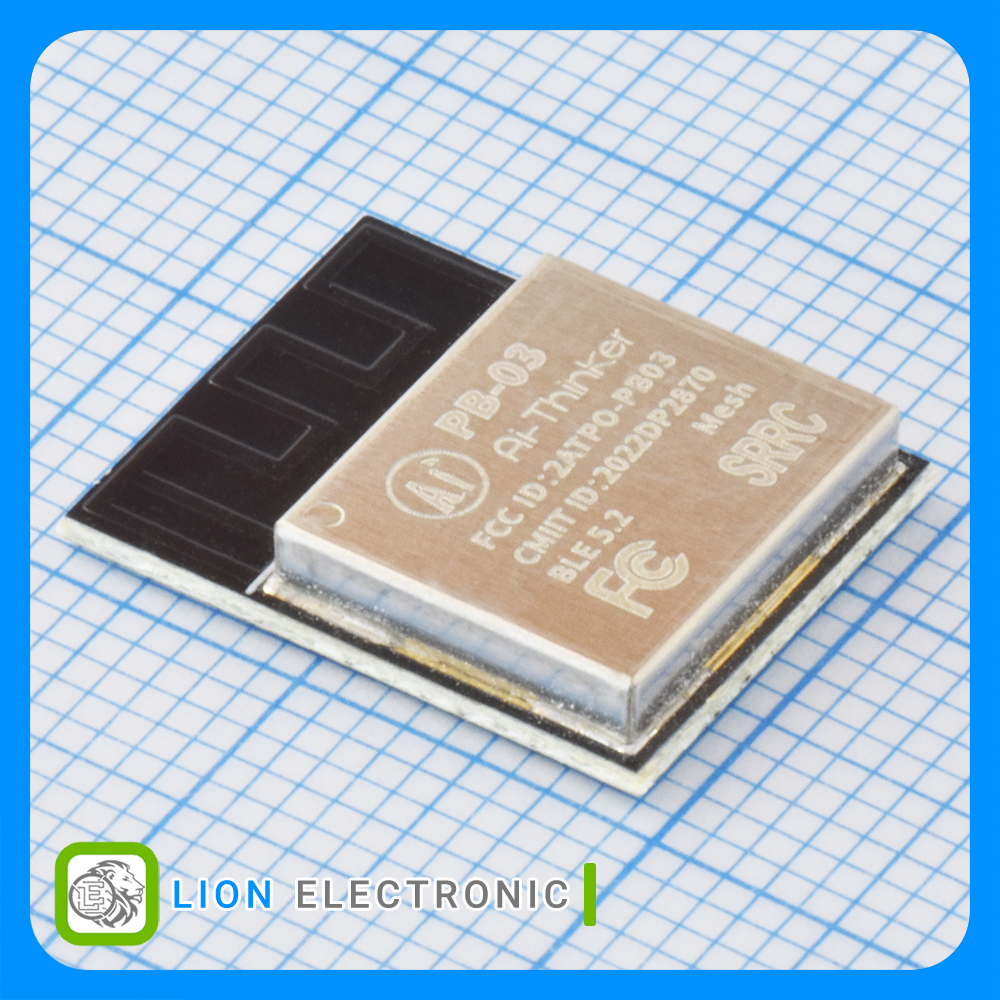

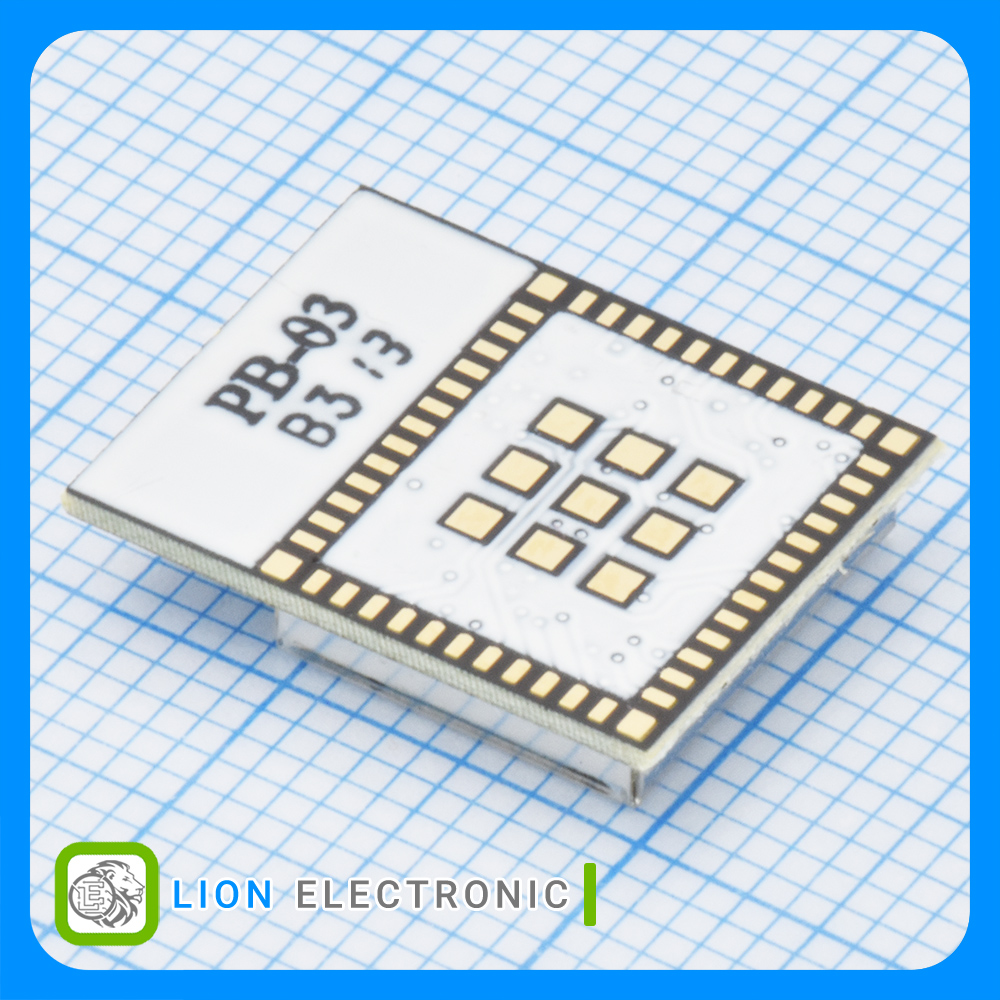

ماژول(BLE) PB-03
Detail
PB-03
Part Number .
4677
Lion Part .
Datasheet .
Ai-Thinker Manufacture .
125Kbps, 500Kbps,1Mbps, 2Mbps Rate BLE5.2 Module Based on PHY6252 SMD-52 Package
معرفی
Characteristic:
• Support BLE5.2,rate support:125Kbps,500Kbps,1Mbps,2Mbps
• Own 64 KB SRAM，256KB flash,96 KB ROM，256bit efuse
• Support UART/GPIO/ADC/PWM/I2C/SPI/PDM/DMA interface
• Adopt SMD-22 package
• Support multiple sleep modes,deep sleep current is less than 1uA
• Support for serial local upgrade and remote Firmware upgrade(FOTA)
• Universal AT instructions can be used easy and quickly
• Support for secondary development,with an integrated Windows development environment
مشخصات ماژول(BLE) PB-03
ماژول(BLE) PB-03
Part Number .
8mA, 9mA, 11.5mA
Supply Current Transmitting .
-40C
Minimum Operating Temperature .
Reel
Packaging .
PCB
Antenna Connector Type .
9.4mA
Supply Current Receiving .
19
Number of I-Os .
BLE Modules
Product .
+85C
Maximum Operating Temperature .
ADC, DMA, GPIO, I2C, I2S, PDM, PWM, SPI, UART
Interface Type .
16.6mm × 13.2mm × 2.8mm
Dimensions .
10dBm
Output Power .
N/A
Frequency .
2.7 - 3.6V
Operating Supply Voltage .
