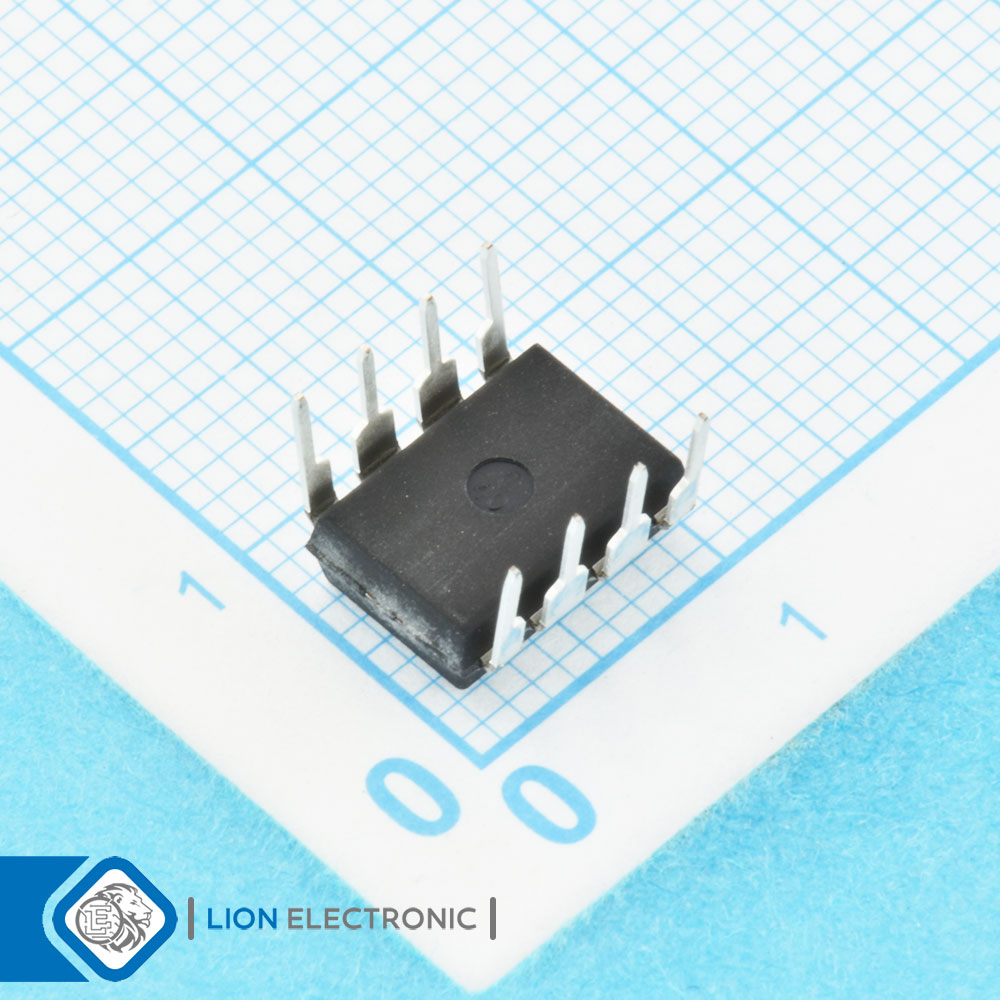

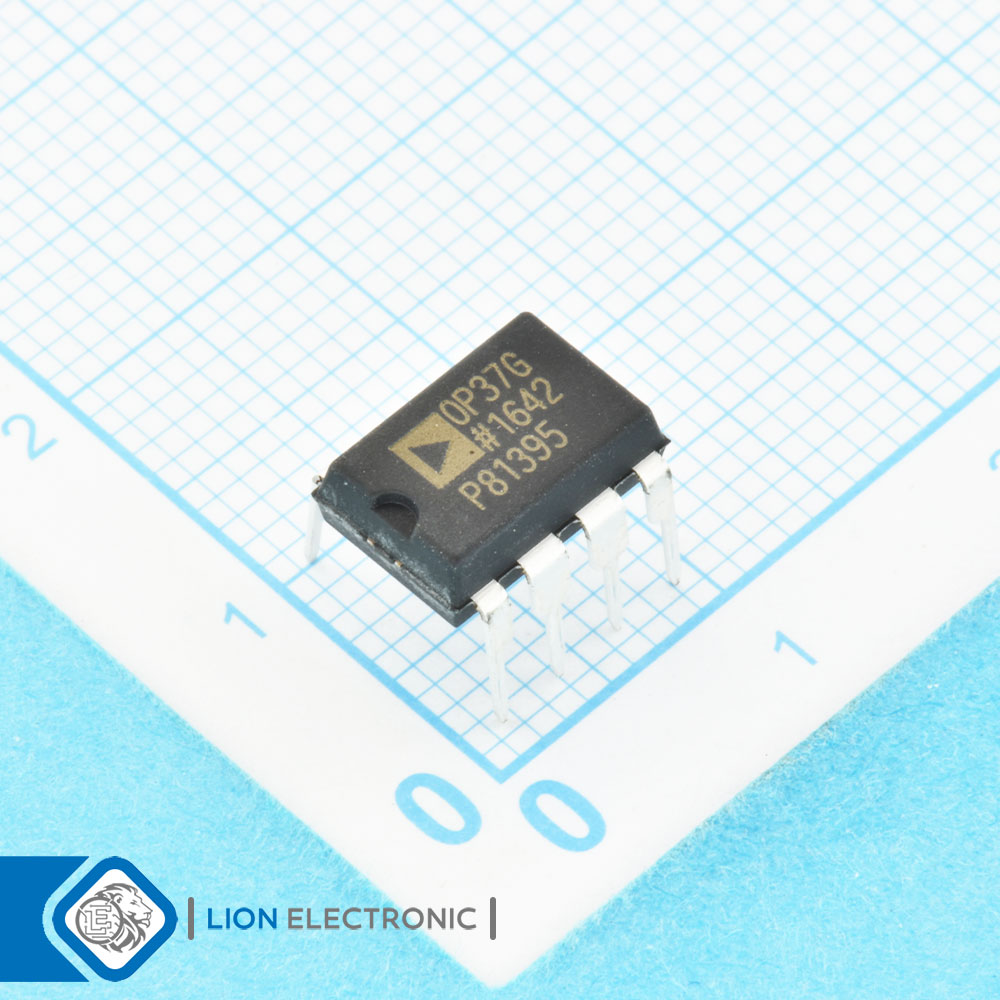

آپ امپ OP37GPZ
Detail
OP37GPZ
Part Number .
468
Lion Part .
Datasheet .
Analog Devices Manufacture .
تقویت کننده دقیق 1 کاناله سرعت بالا و نویز پایین پکیج PDIP-8
Low Noise, Precision, High Speed Operational Amplifier PDIP-8
مشخصات آپ امپ OP37GPZ
آپ امپ OP37GPZ
Part Number .
3.8nV/sqrt Hz
en - Input Voltage Noise Density .
1
Number of Channels .
No Shutdown
Shutdown .
-40C
Minimum Operating Temperature .
Tube
Packaging .
10mA
Output Current per Channel .
Through Hole
Mounting Style .
30uV
Vos - Input Offset Voltage .
+85C
Maximum Operating Temperature .
17V/us
SR - Slew Rate .
4V
Supply Voltage - Min .
22V
Supply Voltage - Max .
80nA
Ib - Input Bias Current .
120dB
CMRR - Common Mode Rejection Ratio .
63MHz
GBP - Gain Bandwidth Product .
DIP-8
Package-Case .
3.5mA
Operating Supply Current .
