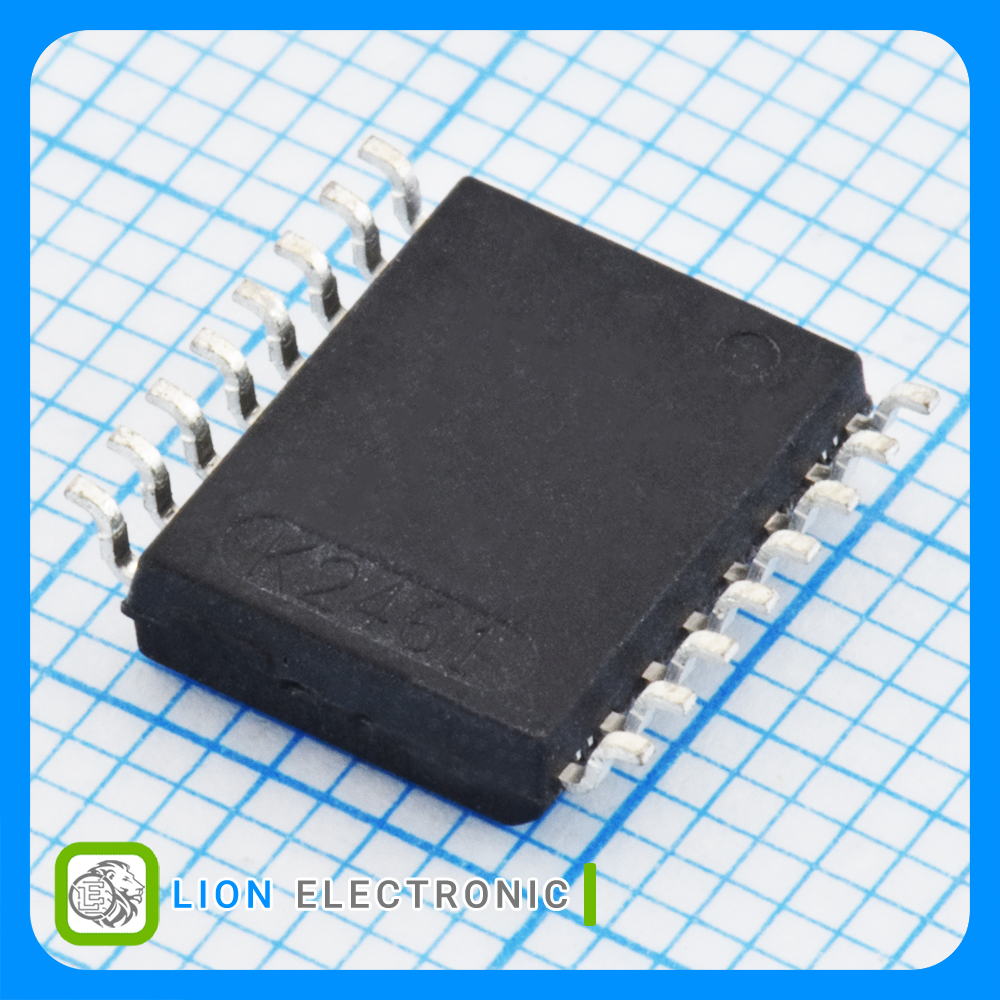

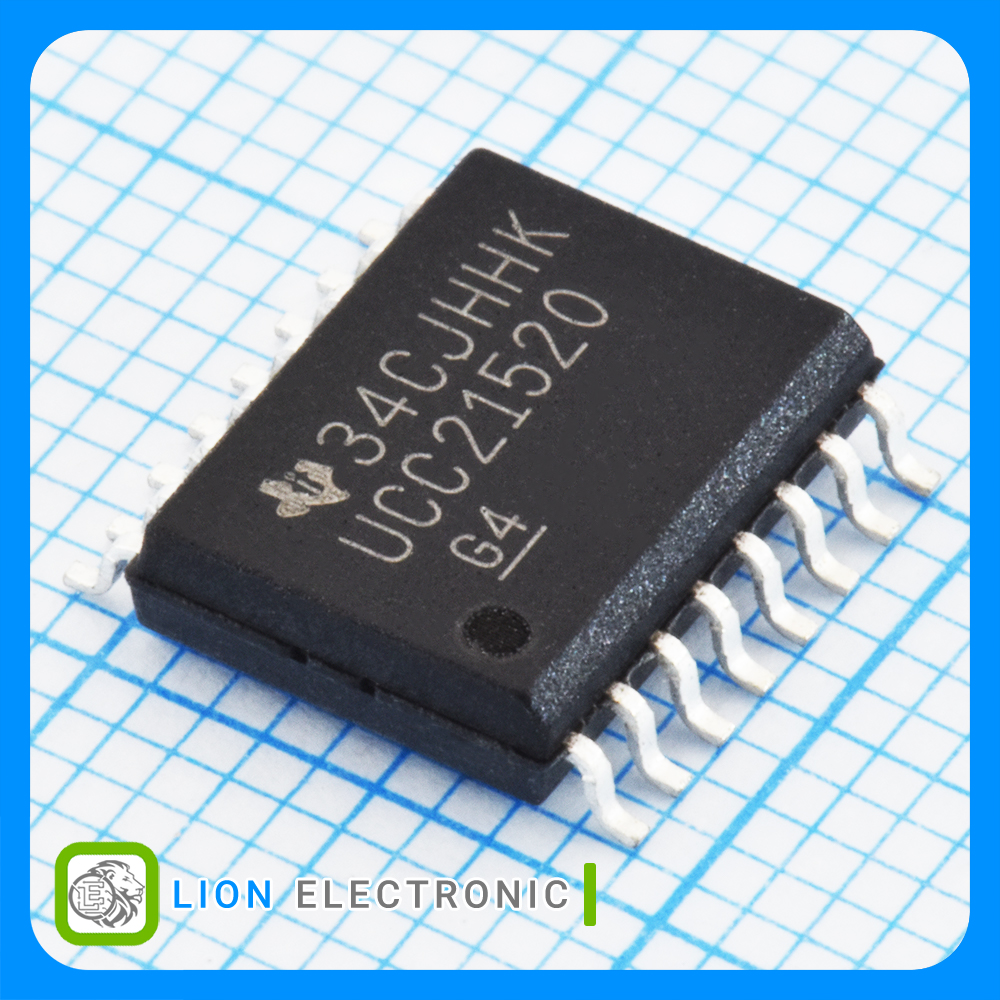

گیت درایور ایزوله UCC21520DWR
Detail
UCC21520DWR
Part Number .
4751
Lion Part .
Datasheet .
Texas Instruments Manufacture .
گیت درایور ایزوله 4 آمپر 18 ولتی
4A source and 6A sink peak current, 5.7kVRMS Isolated Dual-Channel Gate Driver
مشخصات گیت درایور ایزوله UCC21520DWR
گیت درایور ایزوله UCC21520DWR
Part Number .
2
Number of Outputs .
2
Number of Drivers .
6ns
Rise Time .
19ns
Propagation Delay - Max .
Reel
Packaging .
-40C
Minimum Operating Temperature .
SMD/SMT
Mounting Style .
+125C
Maximum Operating Temperature .
7ns
Fall Time .
Dual
Configuration .
3V
Supply Voltage - Min .
Half-Bridge
Type .
18V
Supply Voltage - Max .
1.05W
Pd - Power Dissipation .
Isolated Gate Drivers
Product .
4A, 6A
Output Current .
1.5mA
Operating Supply Current .
SOIC-16
Package-Case .
