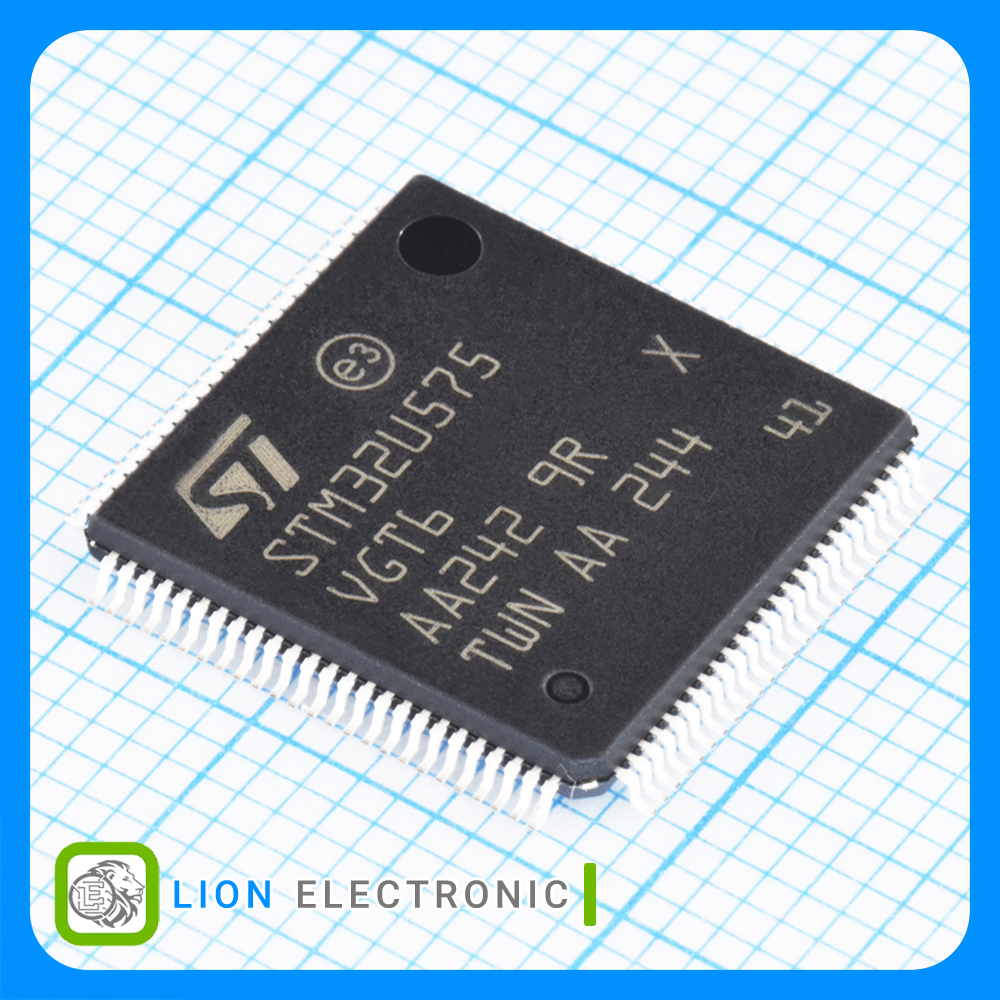

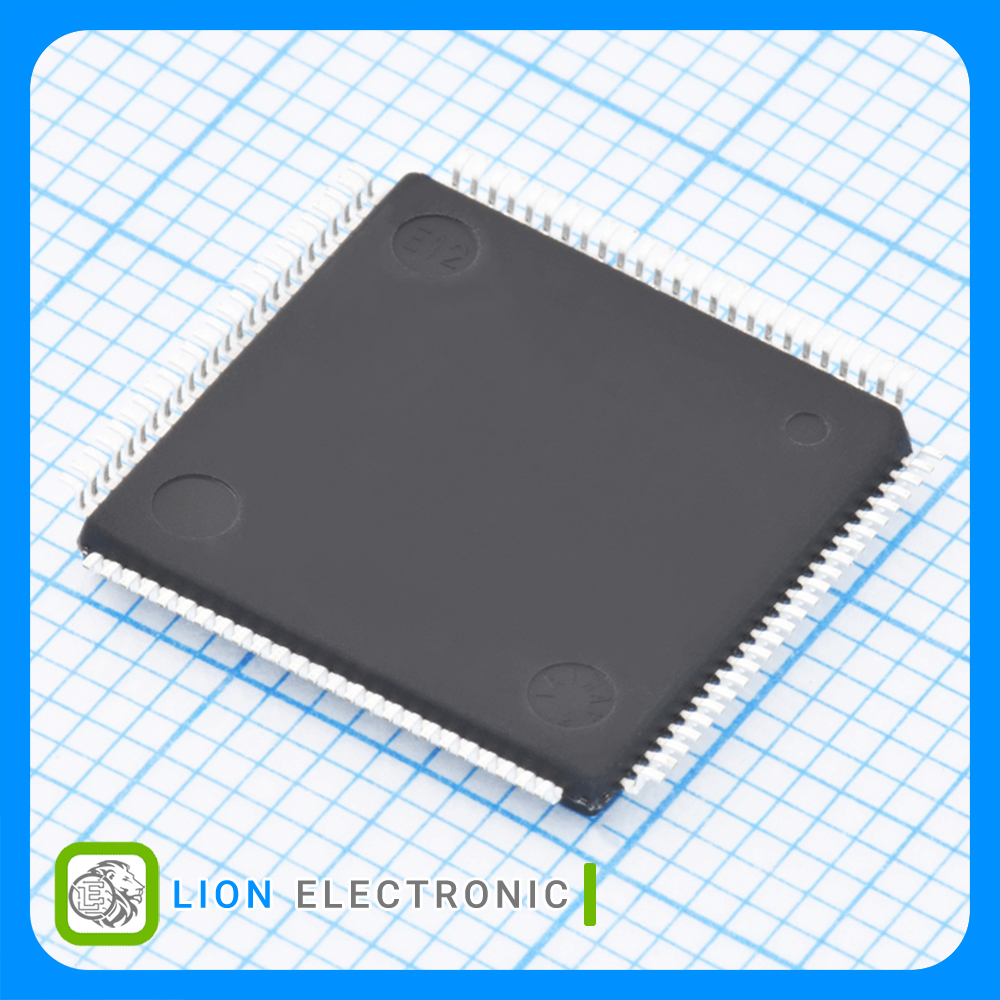

میکروکنترلر STM32U575VGT6
Detail
STM32U575VGT6
Part Number .
5098
Lion Part .
Datasheet .
STMicroelectronics Manufacture .
میکروکنترلر آرم با هسته کورتکس M33 با حافظه فلش 1 مگا بایت و رم 786 کیلو بایت
Ultra Low Power Arm Cortex-M33 32bit MCU+TrustZone+FPU, 240 DMIPS, 1MB Flash Memory, 786KB SRAM
معرفی
Up to 22 communication peripherals
• 1 USB Type-C/USB power delivery controller
• 1 USB OTG 2.0 full-speed controller
• 2 SAIs (serial-audio interface)
• 4 I2C FM+(1 Mbit/s), SMBus/PMBus®
• 6 USARTs (ISO 7816, LIN, IrDA, modem)
• 3 SPIs (5x SPIs with the dual OCTOSPI)
• 1 CAN FD controller
• 2 SDMMC interfaces
• 1 multi-function digital filter (6 filters)+ 1 audio digital filter with sound-activity detection
• Parallel synchronous slave interface
مشخصات میکروکنترلر STM32U575VGT6
میکروکنترلر STM32U575VGT6
Part Number .
STM32U5
Maximum CTR .
32bit
Data Bus Width .
-40C
Minimum Operating Temperature .
Tray
Packaging .
SMD/SMT
Mounting Style .
12bit/14bit
ADC Resolution .
ARM Cortex M33
Core .
+85C
Maximum Operating Temperature .
1MB
Program Memory Size .
160MHz
Maximum Clock Frequency .
1.71 - 3.6V
Operating Supply Voltage .
786kB
Data RAM Size .
82
Number of I-Os .
درج شده در توضیحات محصول
Interface Type .
LQFP-100
Package-Case .
