آی جی بی تی SGT60N60FD1PN
Detail
SGT60N60FD1PN
Part Number .
5173
Lion Part .
Datasheet .
Hangzhou Silan Microelectronics Manufacture .
آیجیبیتی 600 ولت 60 آمپر با پکیج TO-3P

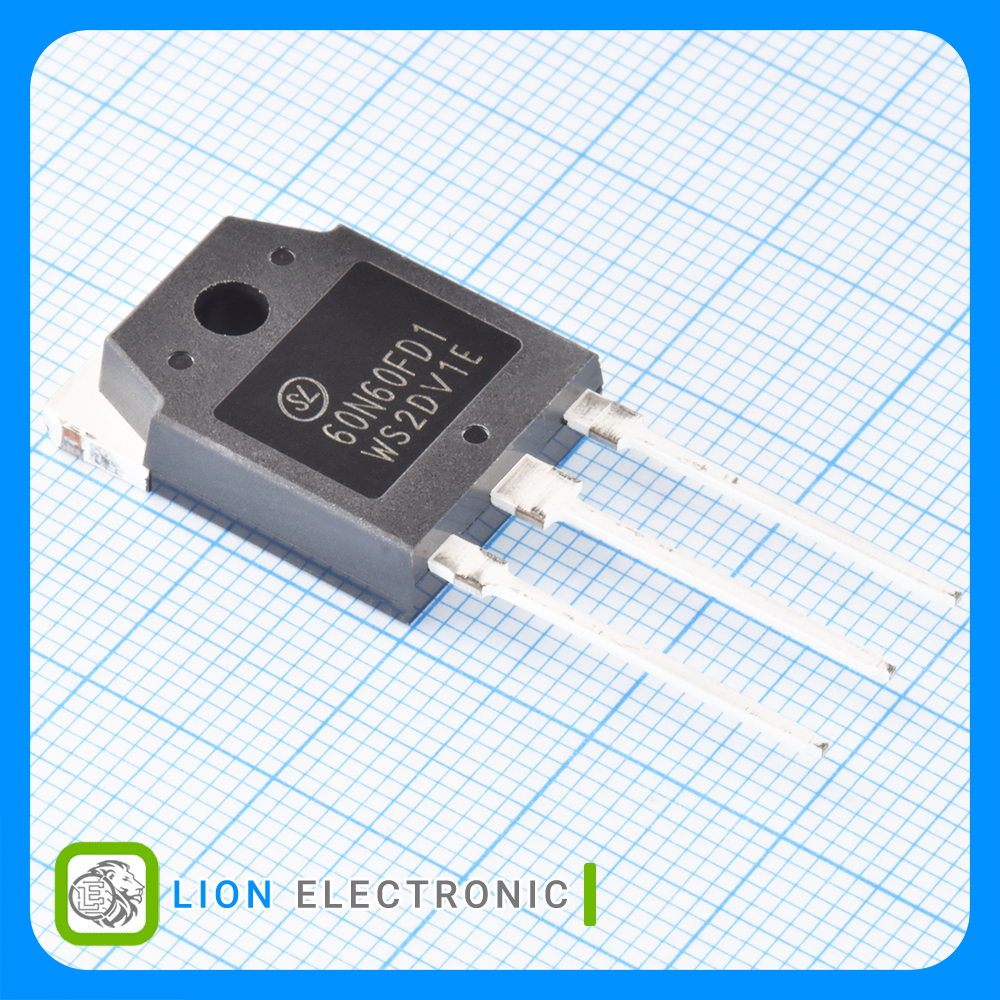

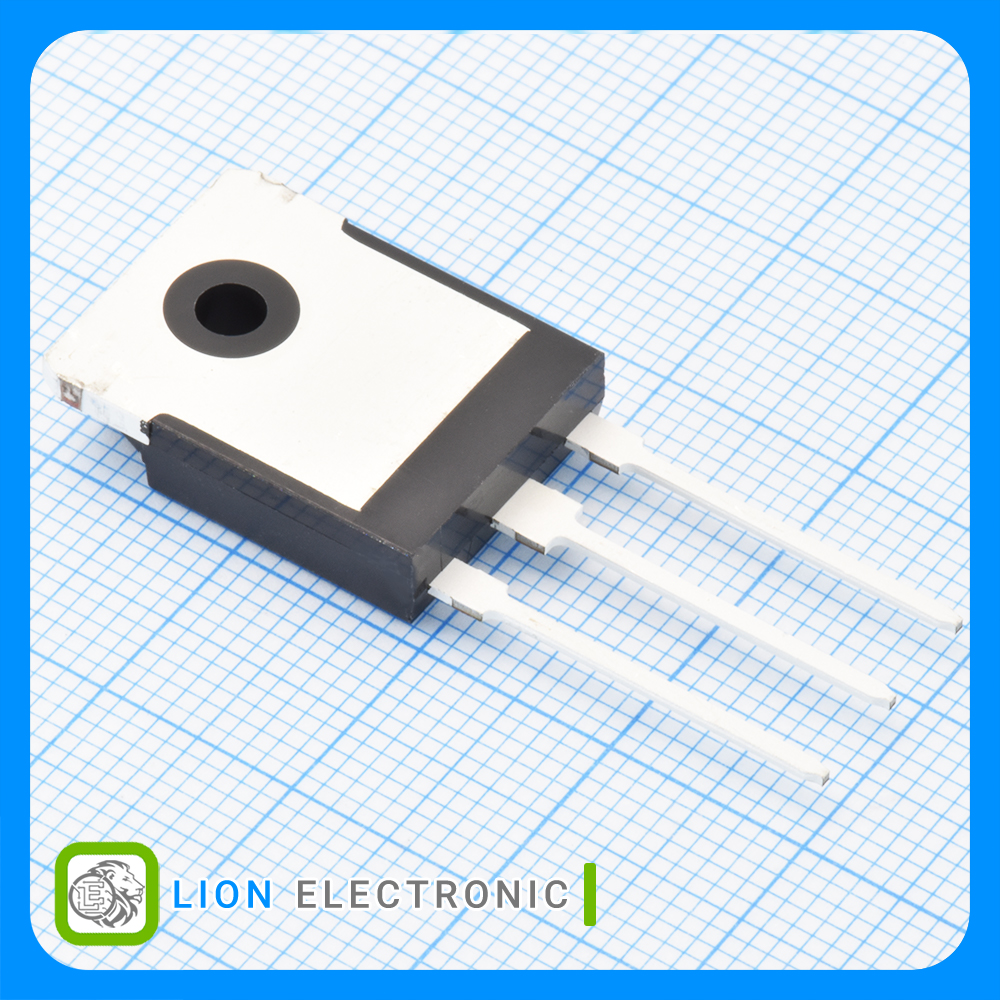

IGBT 600V 60A TO-3P
مشخصات آی جی بی تی SGT60N60FD1PN
آی جی بی تی SGT60N60FD1PN
Part Number .
- 20V, 20V
Maximum Gate Emitter Voltage .
+175C
Maximum Operating Temperature .
FIELD STOP IGBT
Technology .
-55C
Minimum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
120A
Continuous Collector Current aT 25 c .
600V
Collector - Emitter Voltage VCEO Max .
2.2V
Collector - Emitter Saturation Voltage .
321W
Pd - Power Dissipation .
TO-3P
Package-Case .
