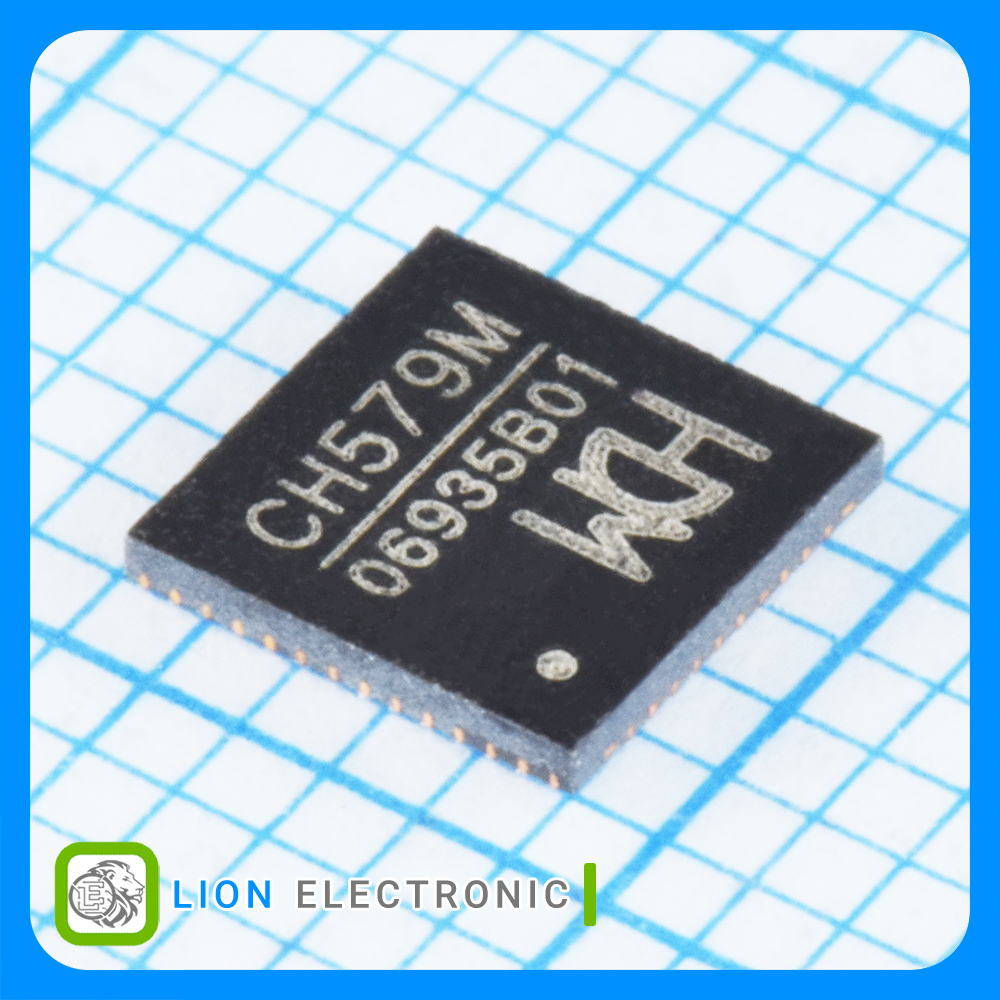

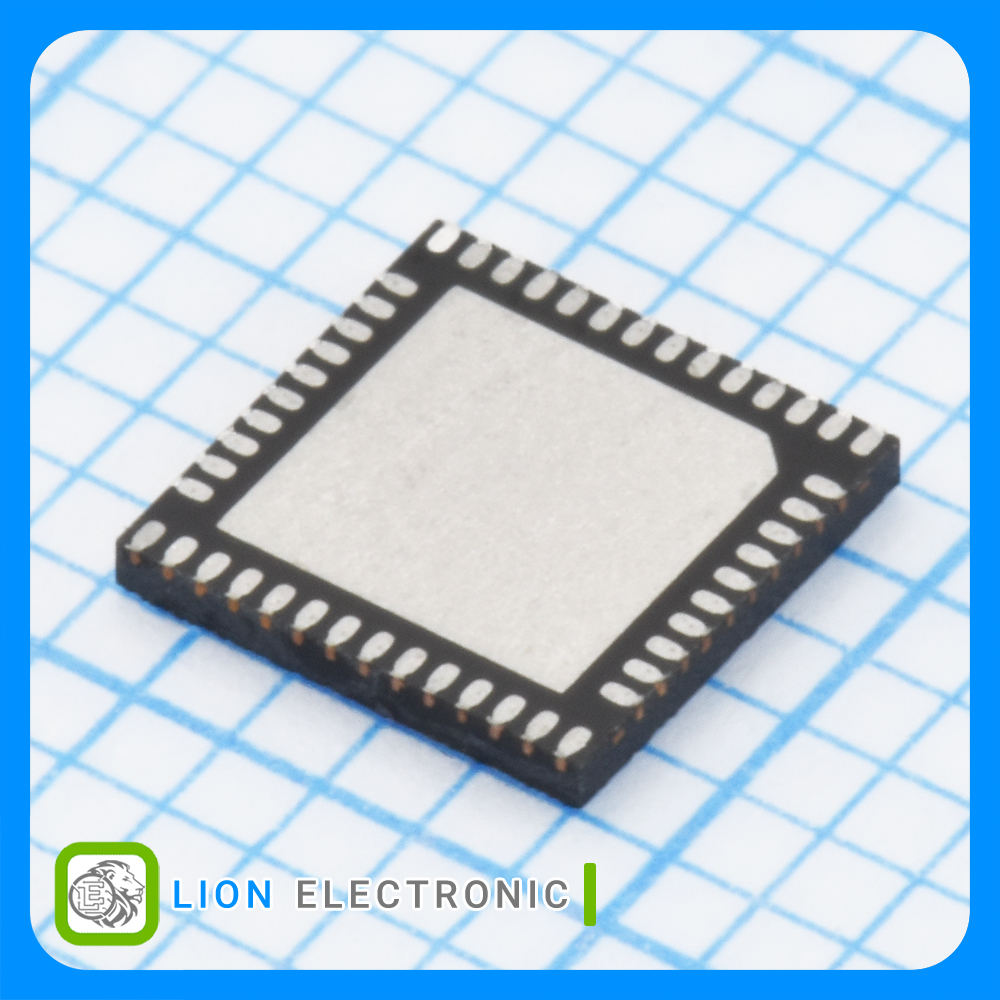

CH579 is an ARM 32-bit microcontroller that integrates BLE wireless communication. The chip has integrated rich peripheral resources such as Bluetooth Low Energy (BLE) communication module, Ethernet controller and transceiver, full-speed USB host/device controller and transceiver, segment LCD driver module, ADC, TouchKey detection module and RTC, etc.
مشخصات CH579M
CH579M
Part Number .
CH57X
Maximum CTR .
32bit
Data Bus Width .
12bit
ADC Resolution .
-40C
Minimum Operating Temperature .
Tray
Packaging .
SMD/SMT
Mounting Style .
ARM Cortex M0
Core .
+85C
Maximum Operating Temperature .
40MHz
Maximum Clock Frequency .
250kB
Program Memory Size .
32
Number of I-Os .
32kB
Data RAM Size .
2.2 - 3.6V
Operating Supply Voltage .
-
Interface Type .
QFN-48
Package-Case .
