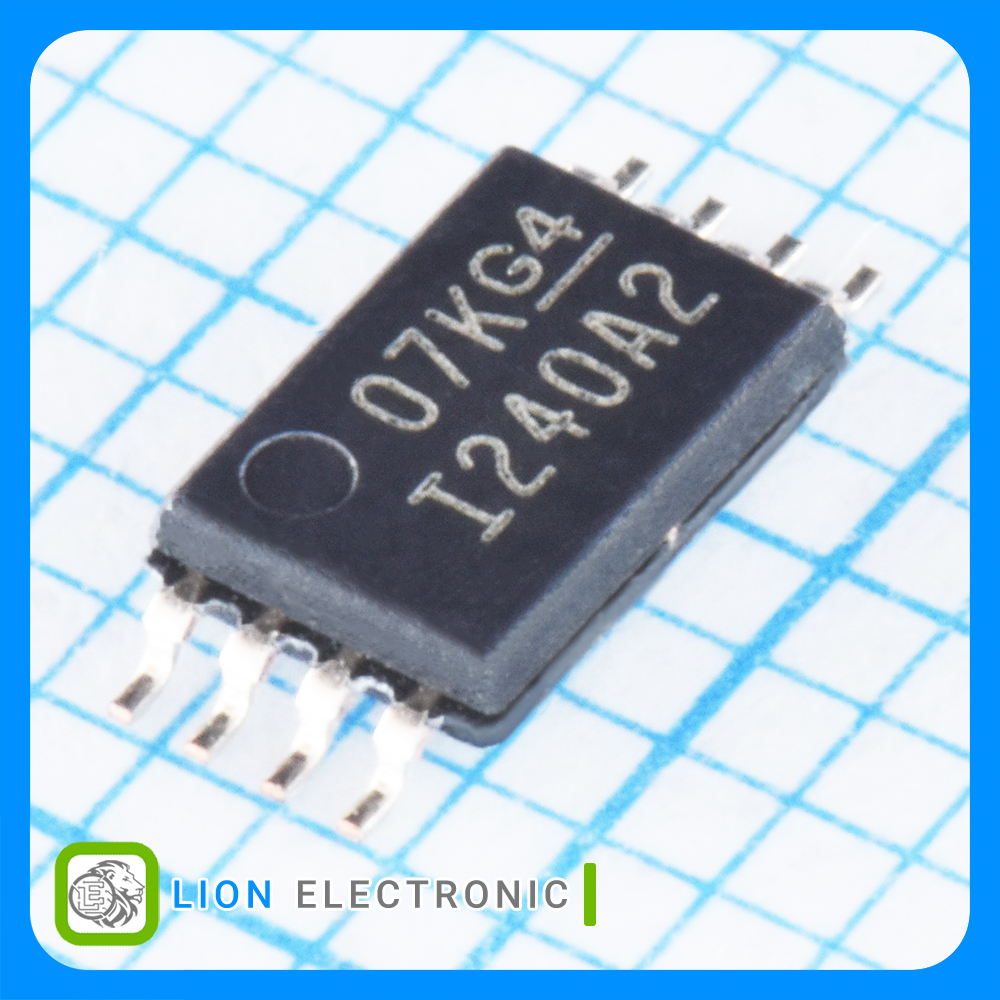

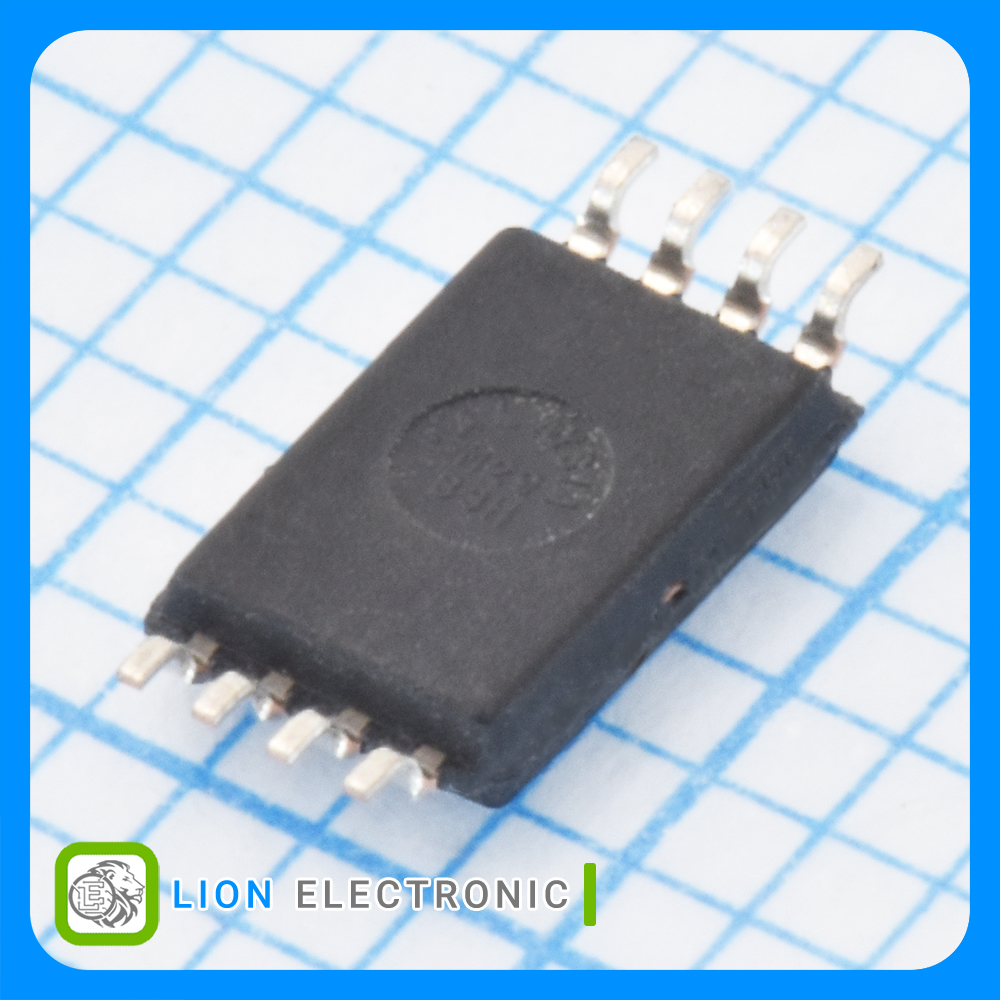

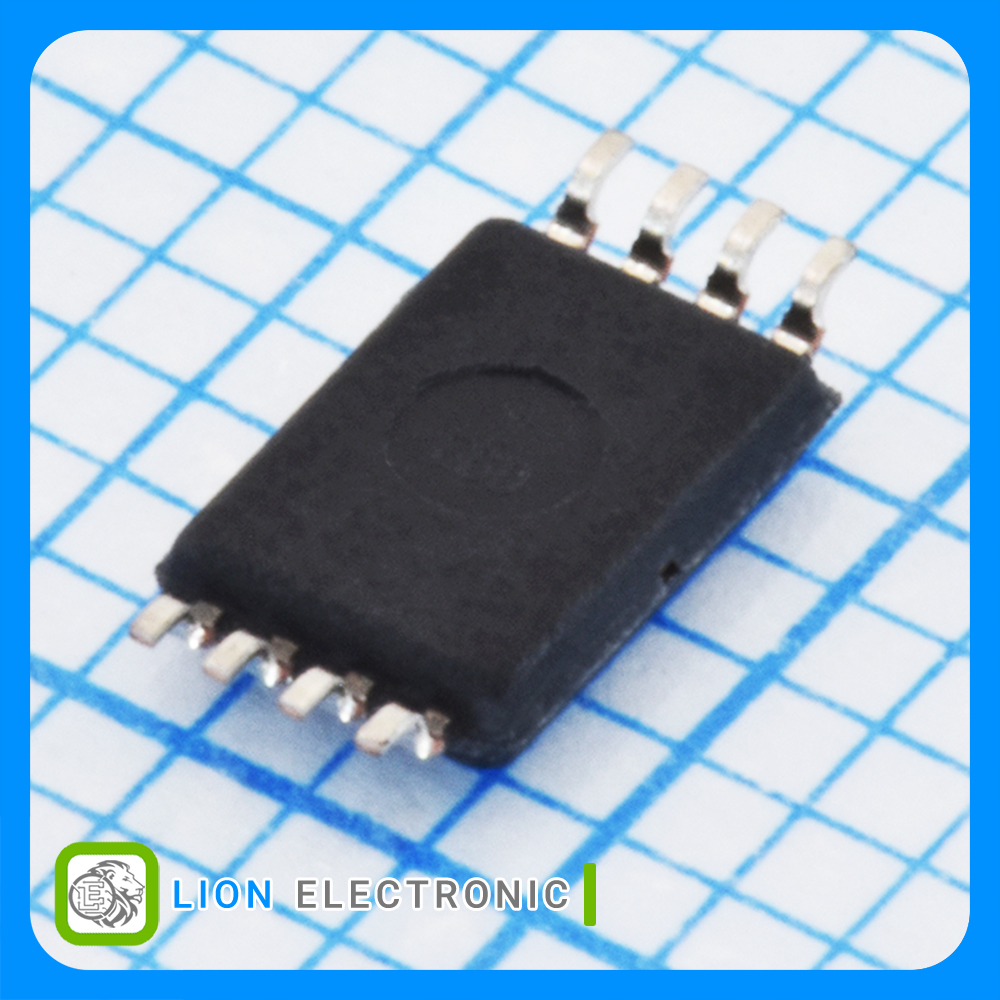

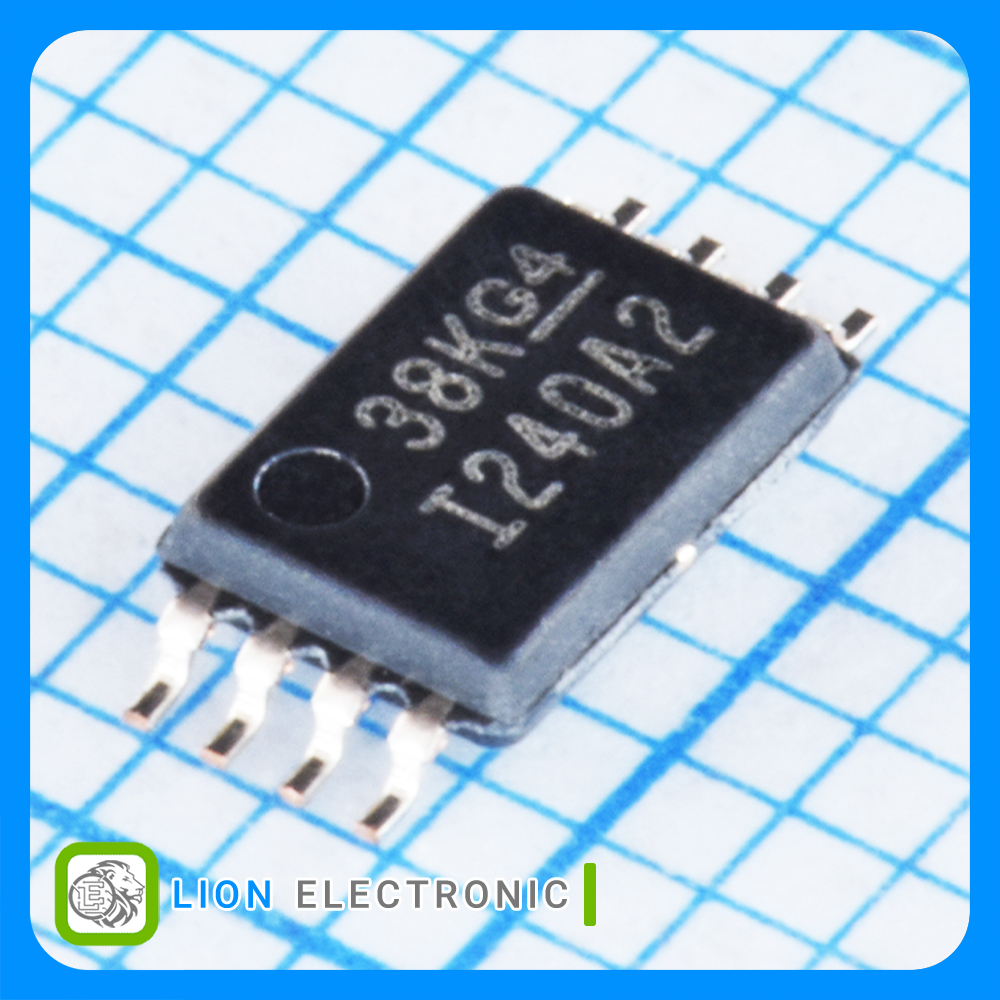

INA240A2PWR
Detail
INA240A2PWR
Part Number .
5486
Lion Part .
Datasheet .
Texas Instruments Manufacture .
TSSOP-8 آیسی سنس جریان با گین 50 با پکیج
INA240 –4V to 80V, Bidirectional, Ultra-Precise Current Sense Amplifier With Enhanced PWM Rejection
مشخصات INA240A2PWR
INA240A2PWR
Part Number .
1
Number of Channels .
-4 - 80V
Vcm - Common Mode Voltage .
0.05%
Gain Error .
-40C
Minimum Operating Temperature .
Reel
Packaging .
±5µV
Vos - Input Offset Voltage .
SMD/SMT
Mounting Style .
+125C
Maximum Operating Temperature .
400KHz
GBP - Gain Bandwidth Product .
50
Gain .
5.5V
Supply Voltage - Max .
2.7V
Supply Voltage - Min .
132dB
CMRR - Common Mode Rejection Ratio .
90uA
Ib - Input Bias Current .
2.4mA
Operating Supply Current .
TSSOP-8
Package-Case .
