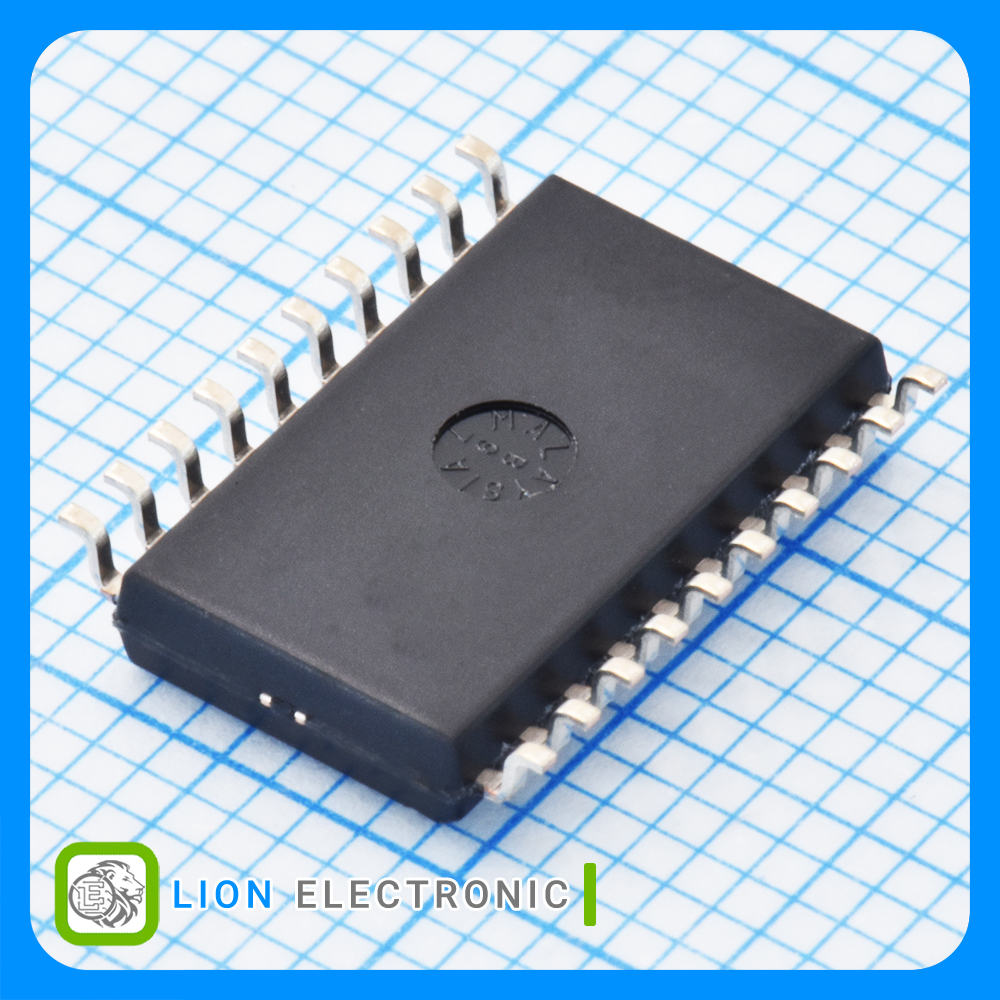

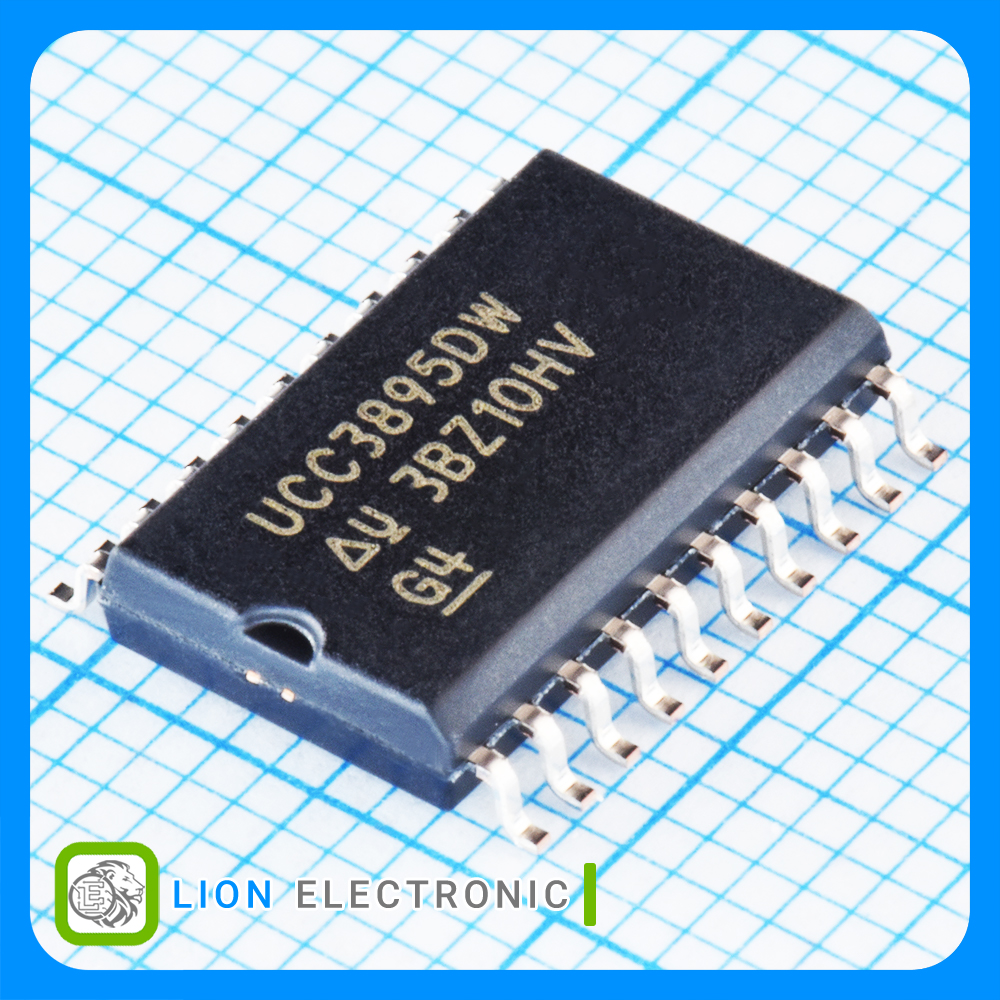

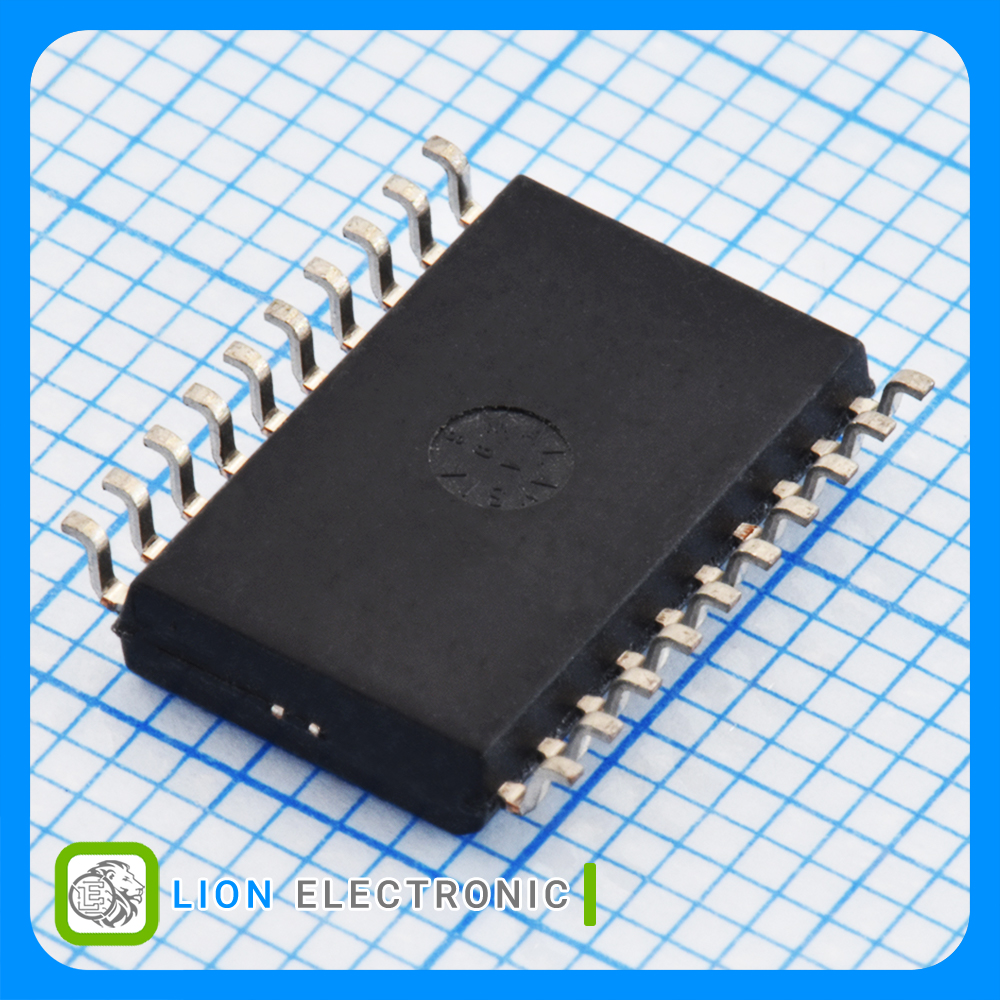

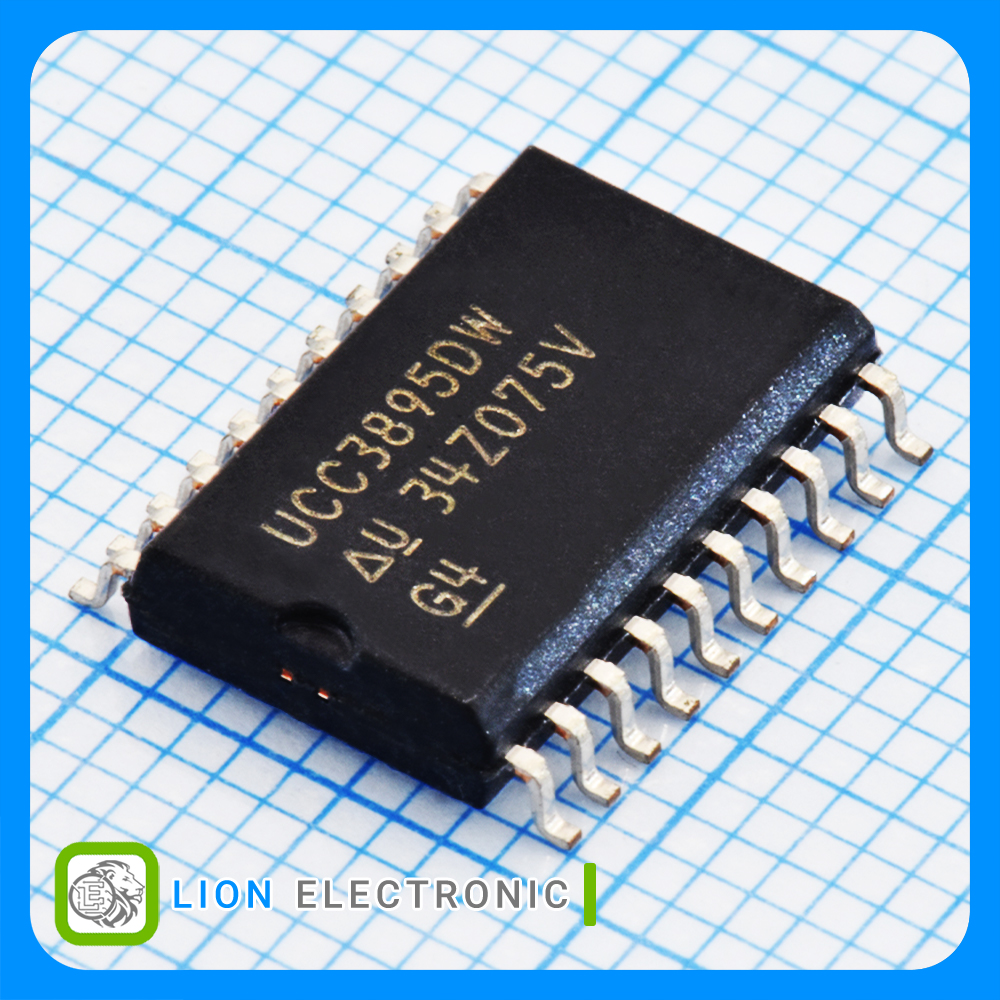

UCC3895DWTR
Detail
UCC3895DWTR
Part Number .
5809
Lion Part .
Datasheet .
Texas Instruments Manufacture .
Phase-Shift PWM Controller that Implements Control of a Full-Bridge Power Stage by Phase Shifting the Switching of One Half-Bridge with Respect to the Other. SOIC-20
مشخصات UCC3895DWTR
UCC3895DWTR
Part Number .
4
Number of Outputs .
Reel
Packaging .
SMD/SMT
Mounting Style .
0C
Minimum Operating Temperature .
Full Bridge
Topology .
+70C
Maximum Operating Temperature .
100%
Duty Cycle - Max .
100mA
Output Current .
10 - 16.5V
Input Voltage .
500kHz
Switching Frequency .
5V
Output Voltage .
SOIC-20
Package-Case .
