L7815CV
Detail
L7815CV
Part Number .
853
Lion Part .
Datasheet .
STMicroelectronics Manufacture .
رگولاتور خطی 15 ولت 1.5 آمپر با پکیج TO-220-3

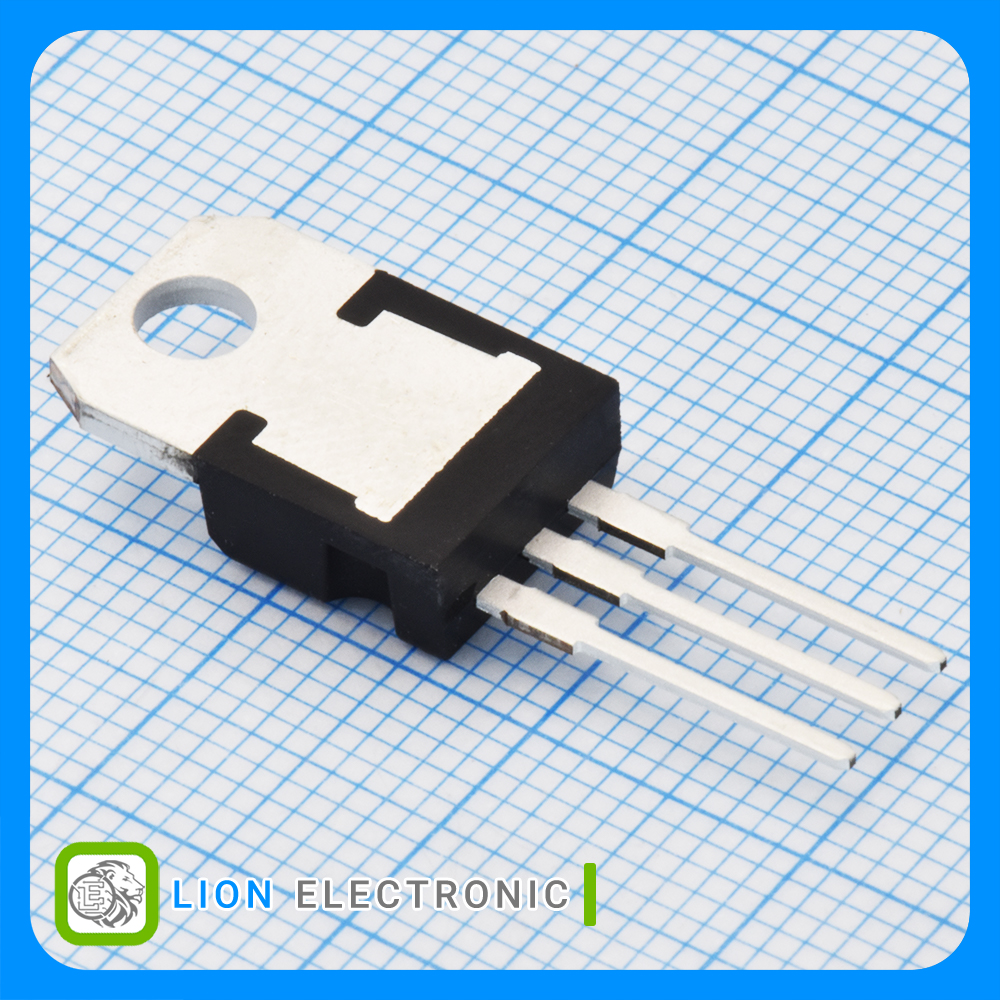

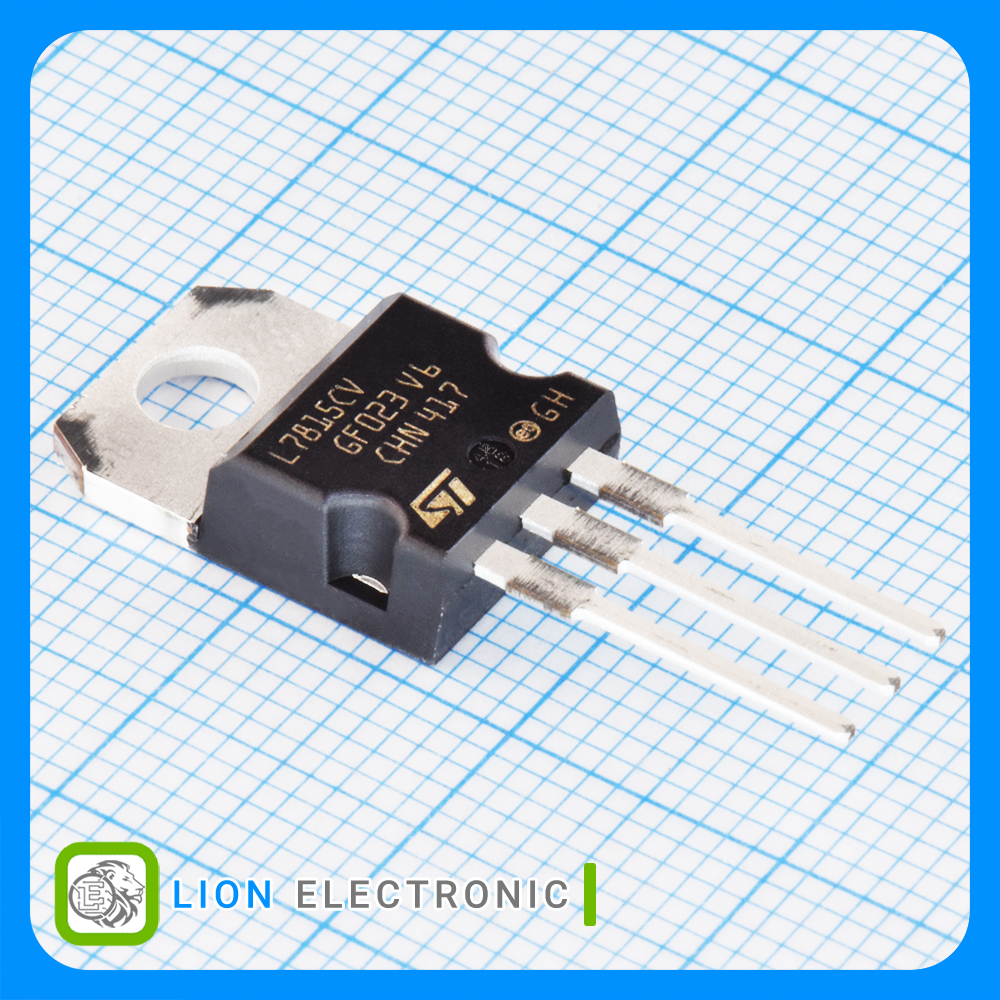

Fixed Linear Voltage Regulators 1.5A 15V TO-220-3
مشخصات L7815CV
L7815CV
Part Number .
1
Number of Outputs .
Positive
Polarity .
+125C
Maximum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
0C
Minimum Operating Temperature .
Fixed
Output Type .
300mV
Line Regulation .
300mV
Load Regulation .
35V
Input Voltage Max .
4.4mA
Quiescent Current .
1.5A
Output Current .
17V
Input Voltage Min .
15V
Output Voltage .
TO-220-3
Package-Case .
