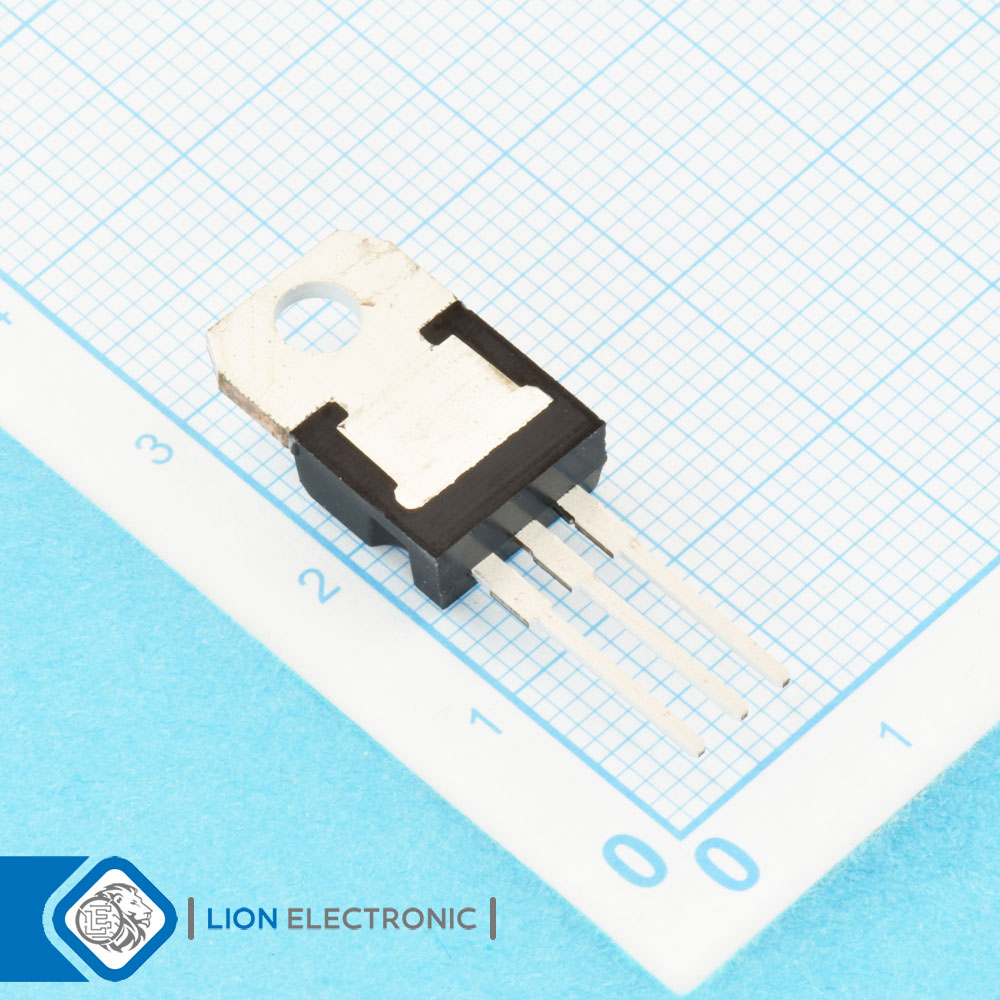

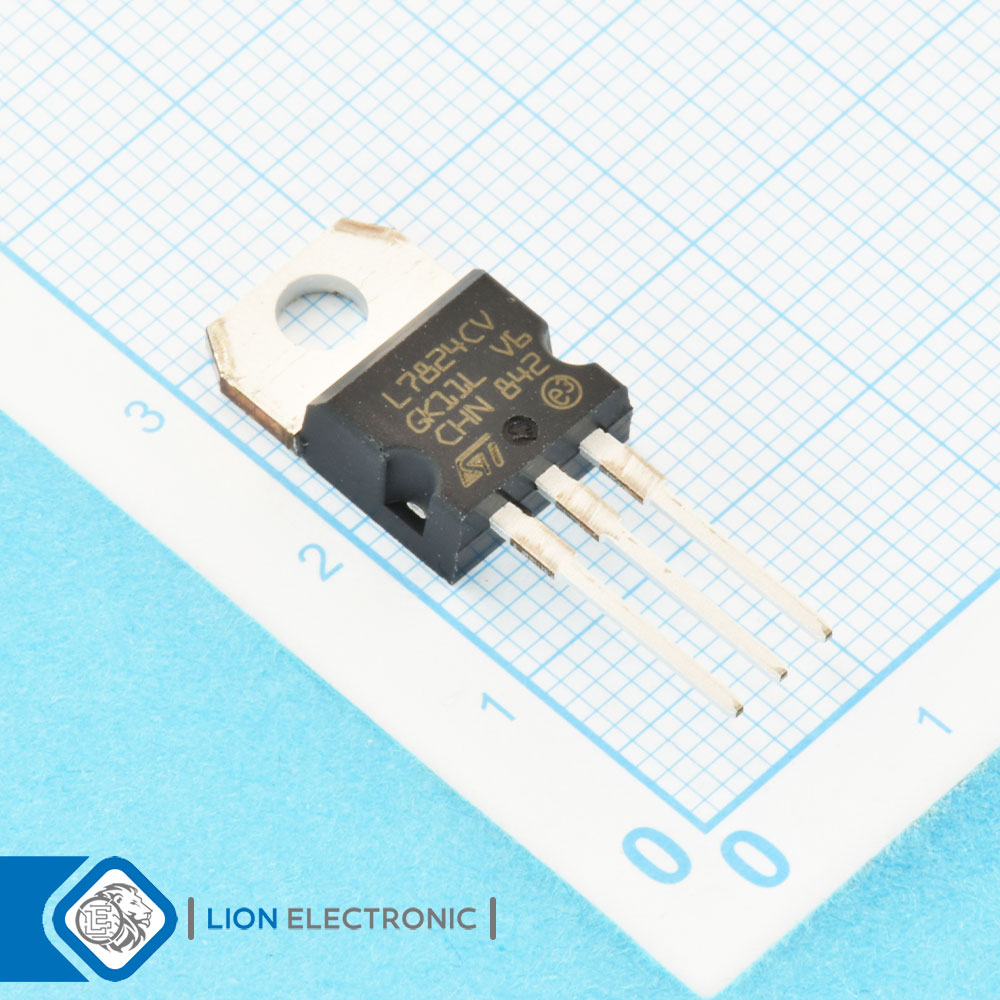

L7824CV
Detail
L7824CV
Part Number .
855
Lion Part .
Datasheet .
STMicroelectronics Manufacture .
رگولاتور خطی 24 ولت 1.5 آمپر با پکیج TO-220-3
Fixed Linear Voltage Regulators 1.5A 24V TO-220-3
مشخصات L7824CV
L7824CV
Part Number .
1
Number of Outputs .
Positive
Polarity .
+125C
Maximum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
0C
Minimum Operating Temperature .
Fixed
Output Type .
480mV
Line Regulation .
480mV
Load Regulation .
35V
Input Voltage Max .
4.6mA
Quiescent Current .
1.5A
Output Current .
26V
Input Voltage Min .
24V
Output Voltage .
TO-220-3
Package-Case .
