LF33CV
Detail
LF33CV
Part Number .
882
Lion Part .
Datasheet .
STMicroelectronics Manufacture .
رگولاتور(لُو دراپ) 3.3 ولت 500 میلی آمپر با پکیج TO-220-3

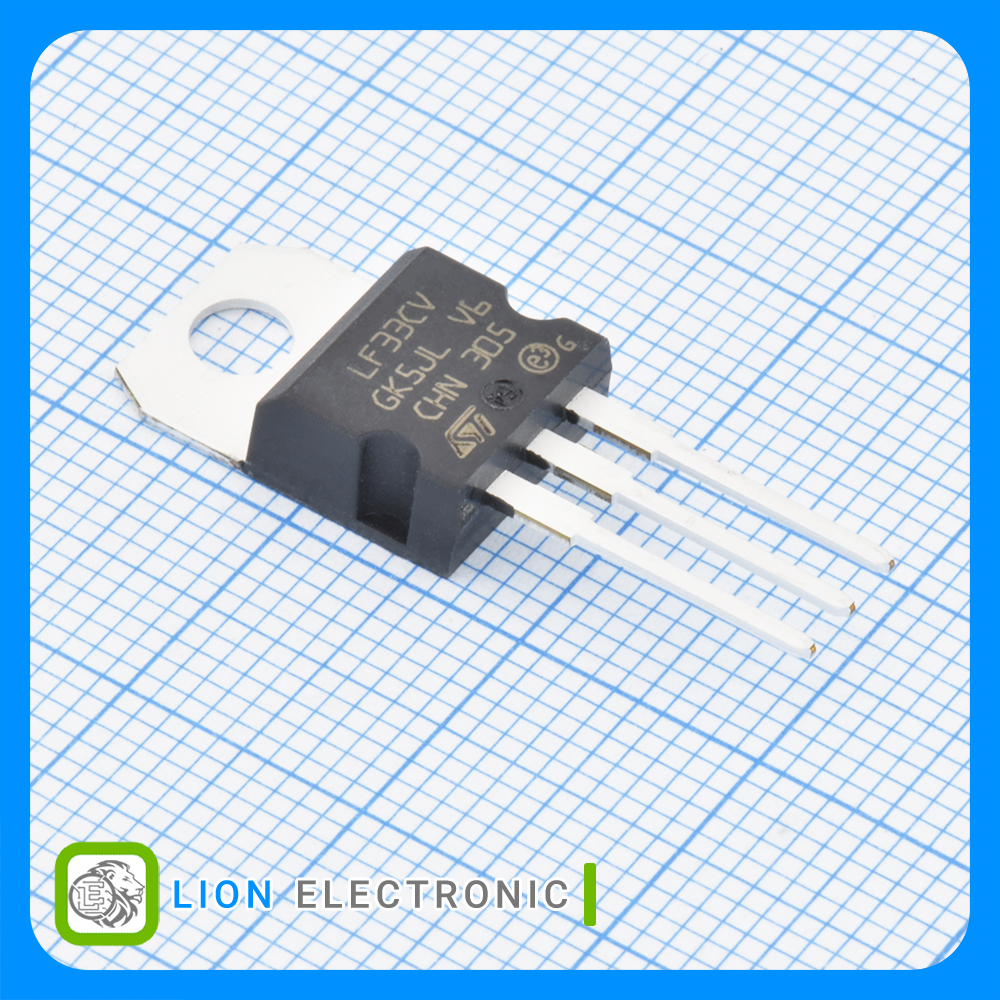

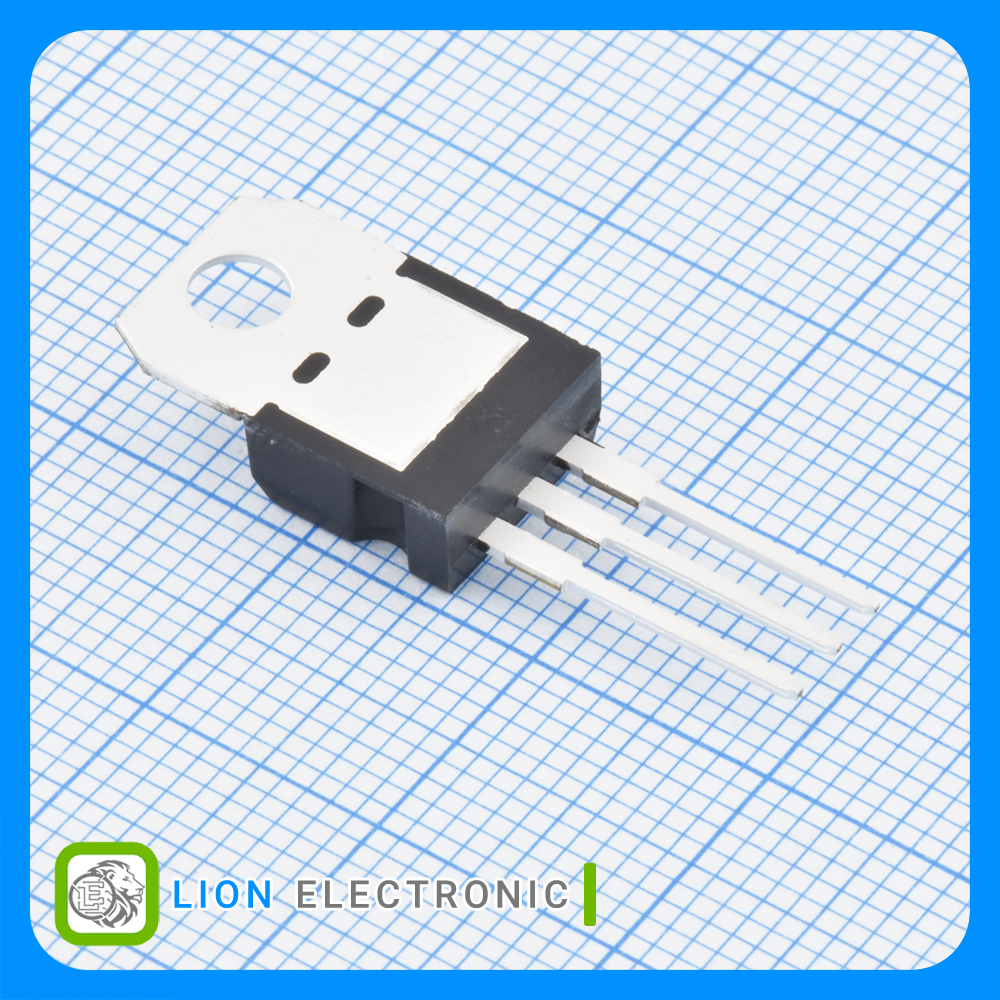

Fixed LDO Voltage Regulator 3.3V 500mA TO-220-3
مشخصات LF33CV
LF33CV
Part Number .
1
Number of Outputs .
16mV
Line Regulation .
16mV
Load Regulation .
Positive
Polarity .
-40C
Minimum Operating Temperature .
+125C
Maximum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
200mV
Dropout Voltage .
16V
Input Voltage Max .
Fixed
Output Type .
80dB
PSRR - Ripple Rejection - Typ .
50uA
Quiescent Current .
2.5V
Input Voltage Min .
500mA
Output Current .
3.3V
Output Voltage .
TO-220-3
Package-Case .
