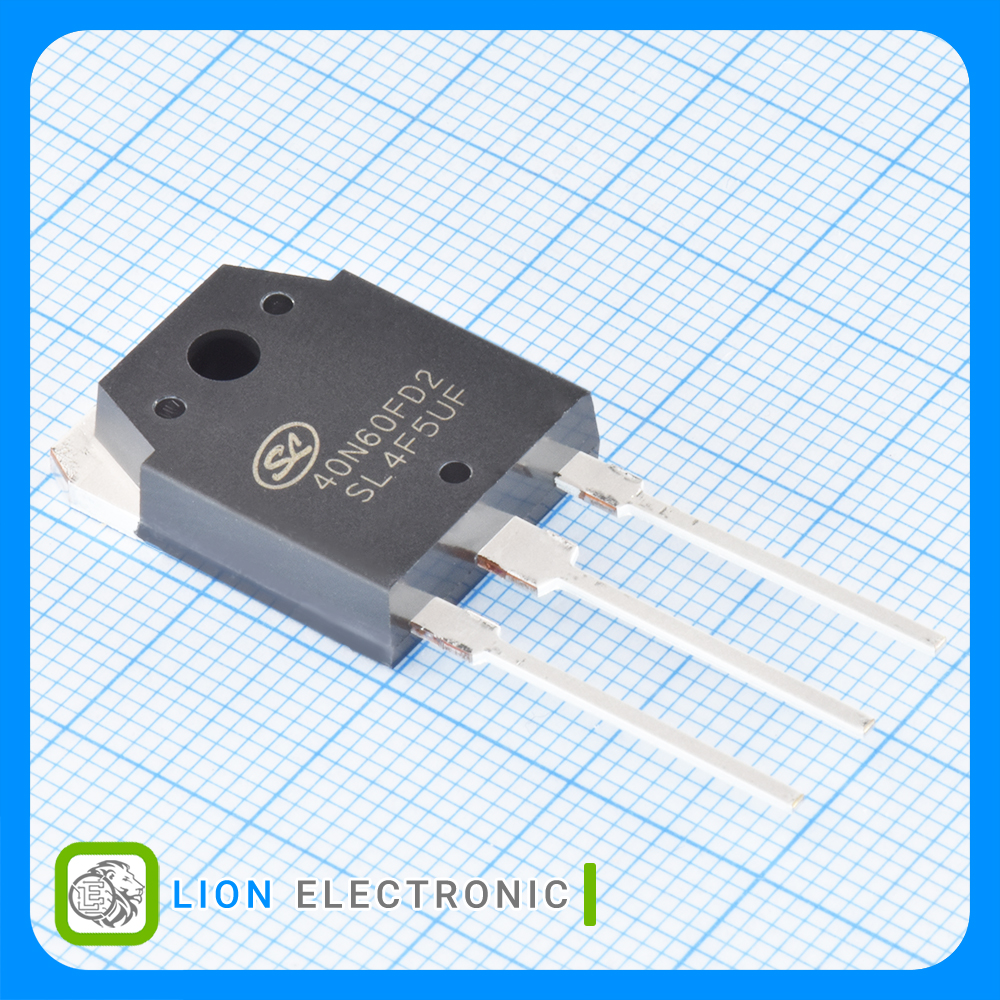

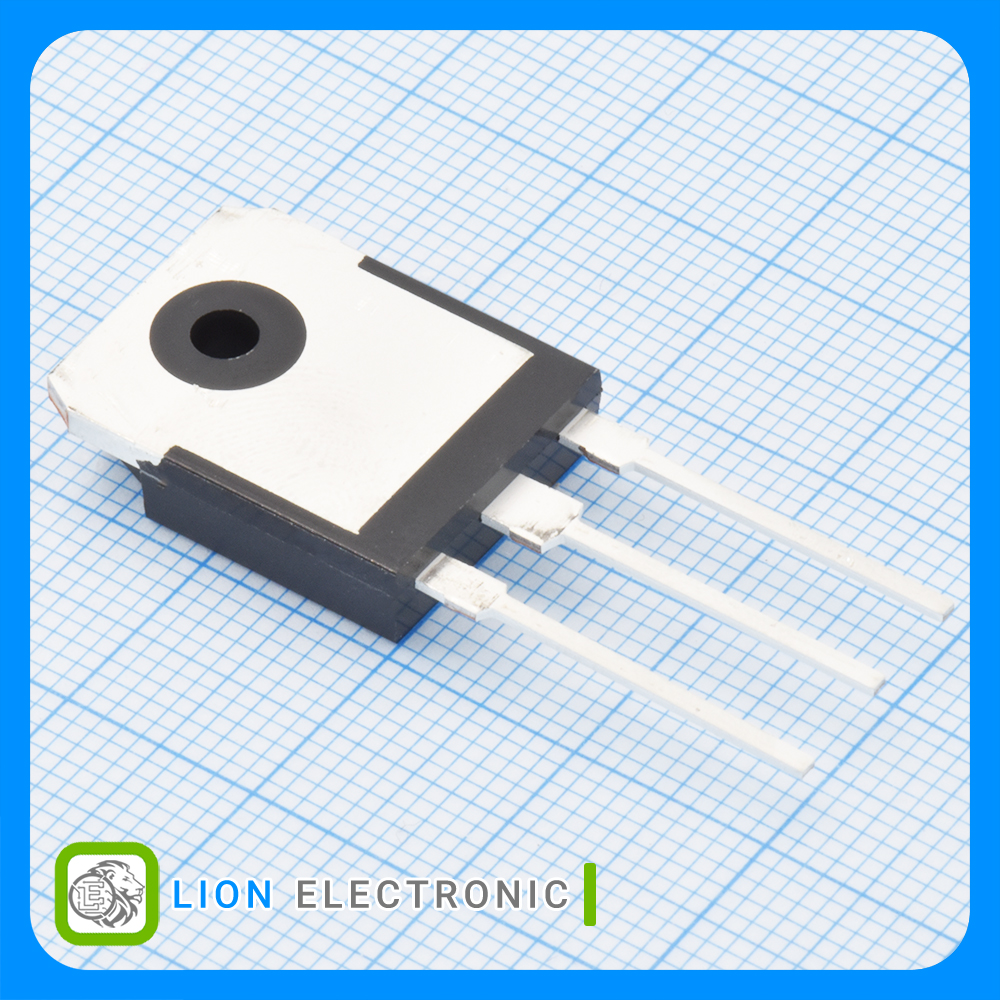

آیجیبیتی SGT40N60FD2PN
Detail
SGT40N60FD2PN
Part Number .
2646
Lion Part .
Datasheet .
Hangzhou Silan Microelectronics Manufacture .
آیجیبیتی 600 ولت 40 آمپر با پکیج TO-3P-3
IGBT 600V 40A TO-3P-3
مشخصات آیجیبیتی SGT40N60FD2PN
آیجیبیتی SGT40N60FD2PN
Part Number .
FIELD STOP IGBT
Technology .
20V
Maximum Gate Emitter Voltage .
+175C
Maximum Operating Temperature .
-55C
Minimum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
80A
Continuous Collector Current aT 25 c .
1.8V
Collector - Emitter Saturation Voltage .
600V
Collector - Emitter Voltage VCEO Max .
290W
Pd - Power Dissipation .
TO-3P
Package-Case .
