آیسی سنس جریان INA381A1IDSGR
Detail

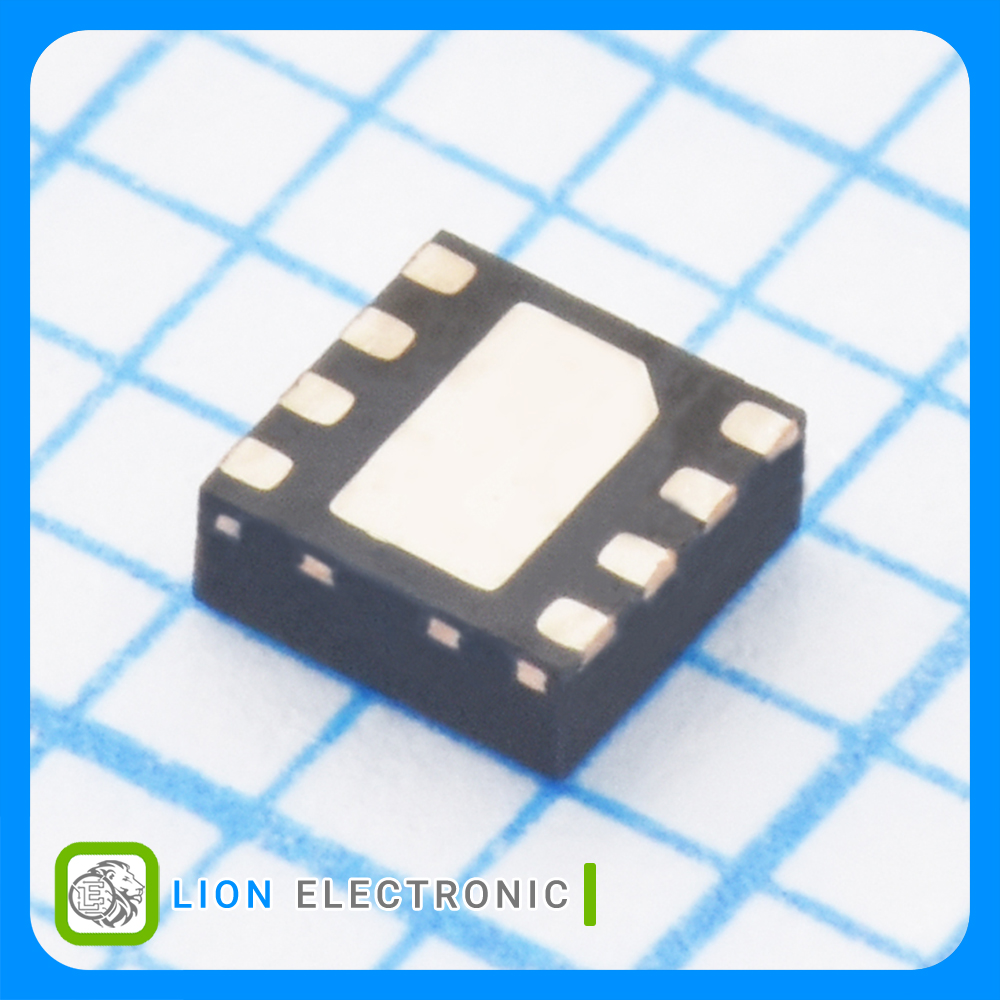

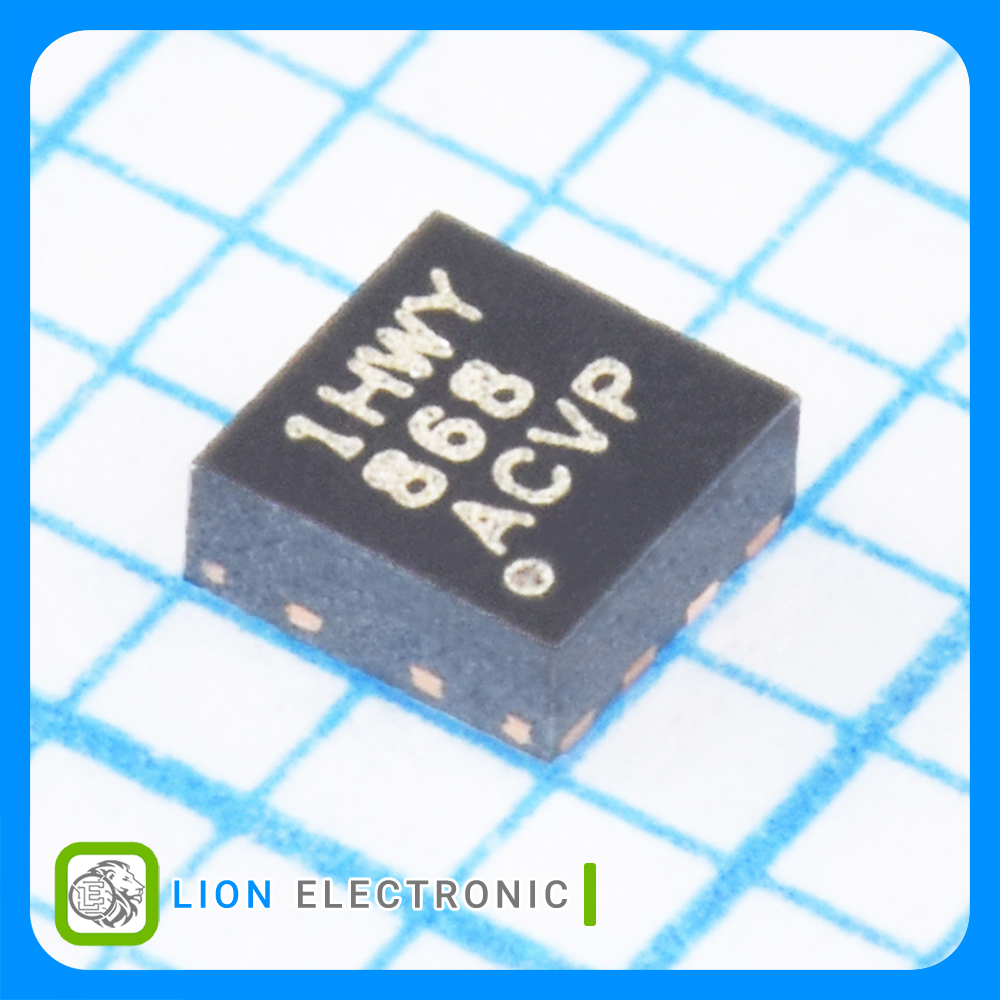

INA381A1IDSGR
Part Number .
3537
Lion Part .
Datasheet .
Texas Instruments Manufacture .
آیسی سنس جریان با گین 20 با پکیج WSON-8
Current Sense Amplifiers 100uV 80uA WSON-8
مشخصات آیسی سنس جریان INA381A1IDSGR
آیسی سنس جریان INA381A1IDSGR
Part Number .
1
Number of Channels .
0.1%
Gain Error .
12V
Vcm - Common Mode Voltage .
Reel
Packaging .
-40C
Minimum Operating Temperature .
SMD/SMT
Mounting Style .
+125C
Maximum Operating Temperature .
350KHz
GBP - Gain Bandwidth Product .
20
Gain .
100uV
Vos - Input Offset Voltage .
5.5V
Supply Voltage - Max .
2.7V
Supply Voltage - Min .
100dB
CMRR - Common Mode Rejection Ratio .
350uA
Operating Supply Current .
80uA
Ib - Input Bias Current .
WSON-8
Package-Case .
