WeEn/NXP
مشخصات BT169D

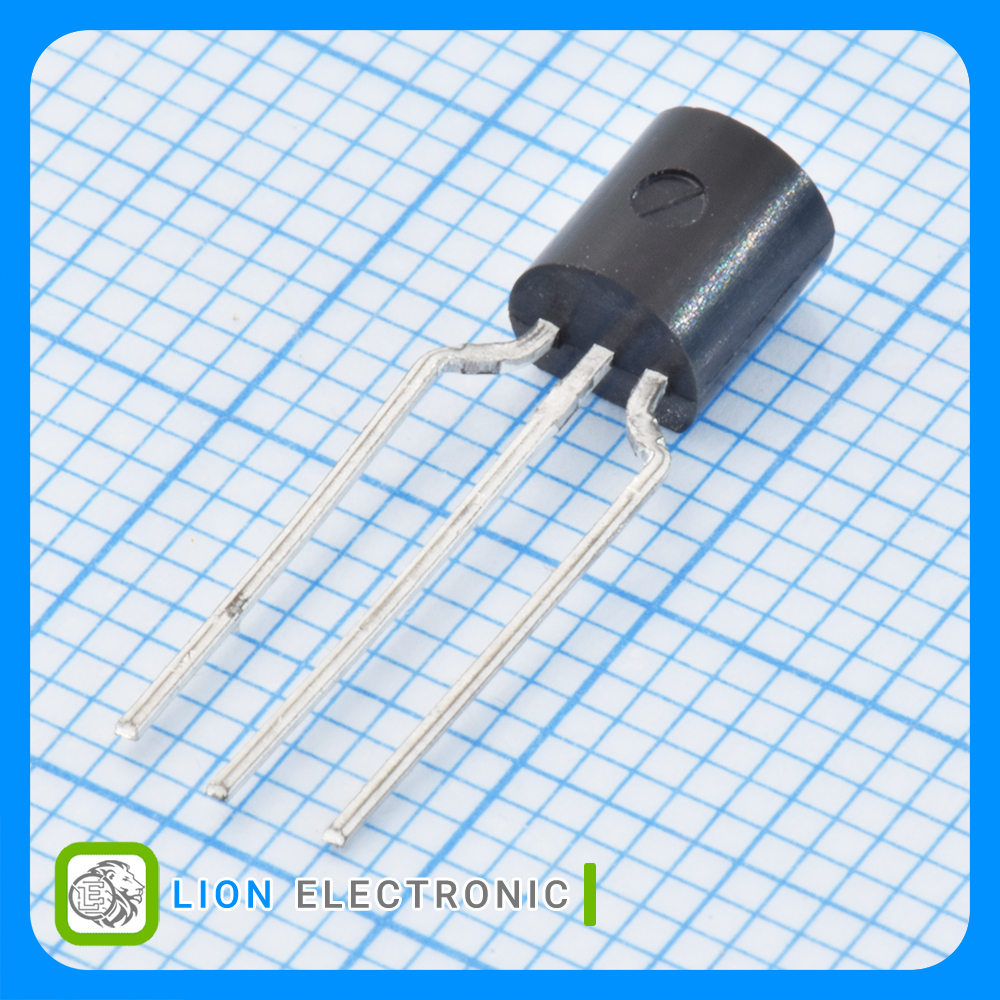

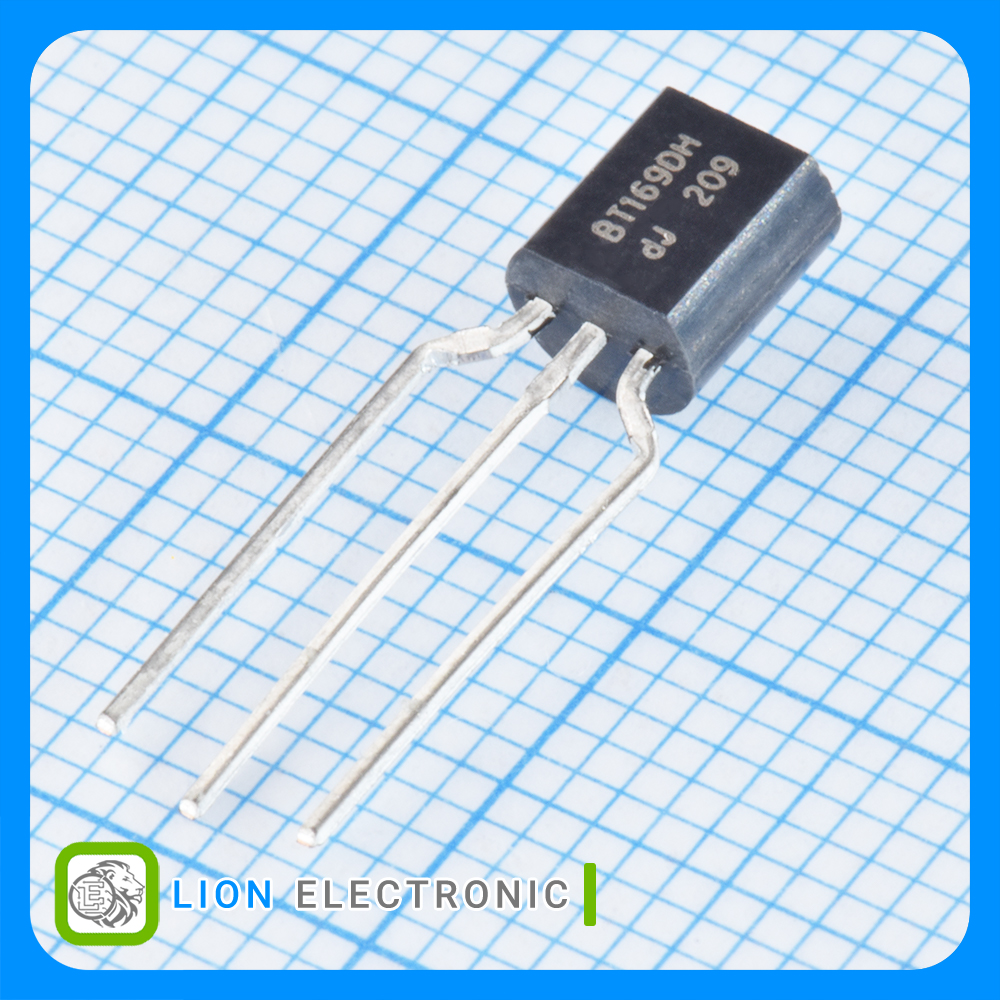

BT169D
Part Number .
800mA
On-State RMS Current - It RMS .
5V
Maximum Gate Peak Inverse Voltage .
200uA
Gate Trigger Current - Igt .
5mA
Holding Current Ih Max .
800mV
Gate Trigger Voltage - Vgt .
400V
Rated Repetitive Off-State Voltage VDRM .
Bulk
Packaging .
100uA
Off-State Leakage Current @ VDRM IDRM .
9A
Breakover Current IBO Max .
-40C
Minimum Operating Temperature .
+125C
Maximum Operating Temperature .
Through Hole
Mounting Style .
1.7V
Vf - Forward Voltage .
TO-92 (SOT-54)
Package-Case .
