BT145-800R
Detail
BT145-800R
Part Number .
43
Lion Part .
Datasheet .
NXP Semiconductors Manufacture .

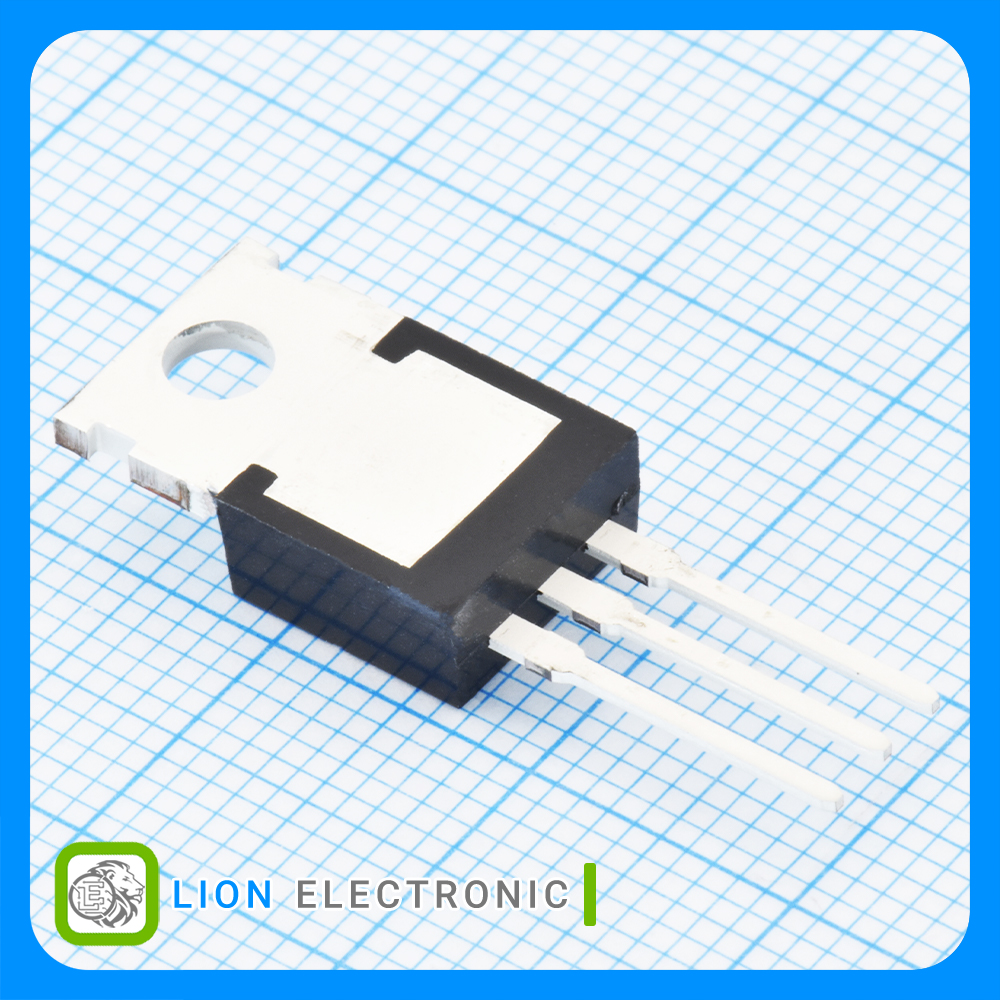

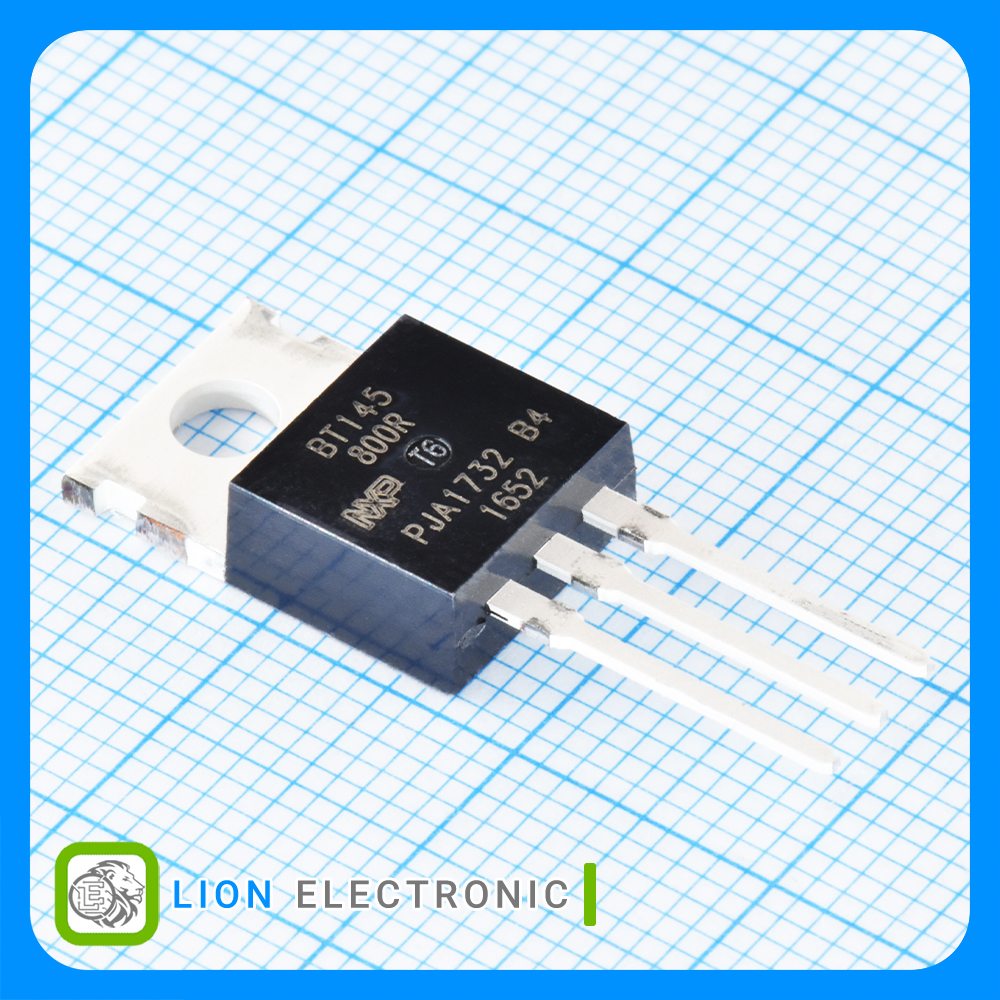

تریستور 800 ولت 25 آمپر با پکیج TO-220-3
Thyristors 800V, 25A with TO-220-3 Package
مشخصات BT145-800R
BT145-800R
Part Number .
600mV
Gate Trigger Voltage - Vgt .
5V
Maximum Gate Peak Inverse Voltage .
5mA
Gate Trigger Current - Igt .
-40C
Minimum Operating Temperature .
200uA
Off-State Leakage Current @ VDRM IDRM .
+125C
Maximum Operating Temperature .
25A
On-State RMS Current - It RMS .
800V
Rated Repetitive Off-State Voltage VDRM .
Tube
Packaging .
Through Hole
Mounting Style .
330A
Breakover Current IBO Max .
60mA
Holding Current Ih Max .
1.5V
Vf - Forward Voltage .
TO-220-3
Package-Case .
