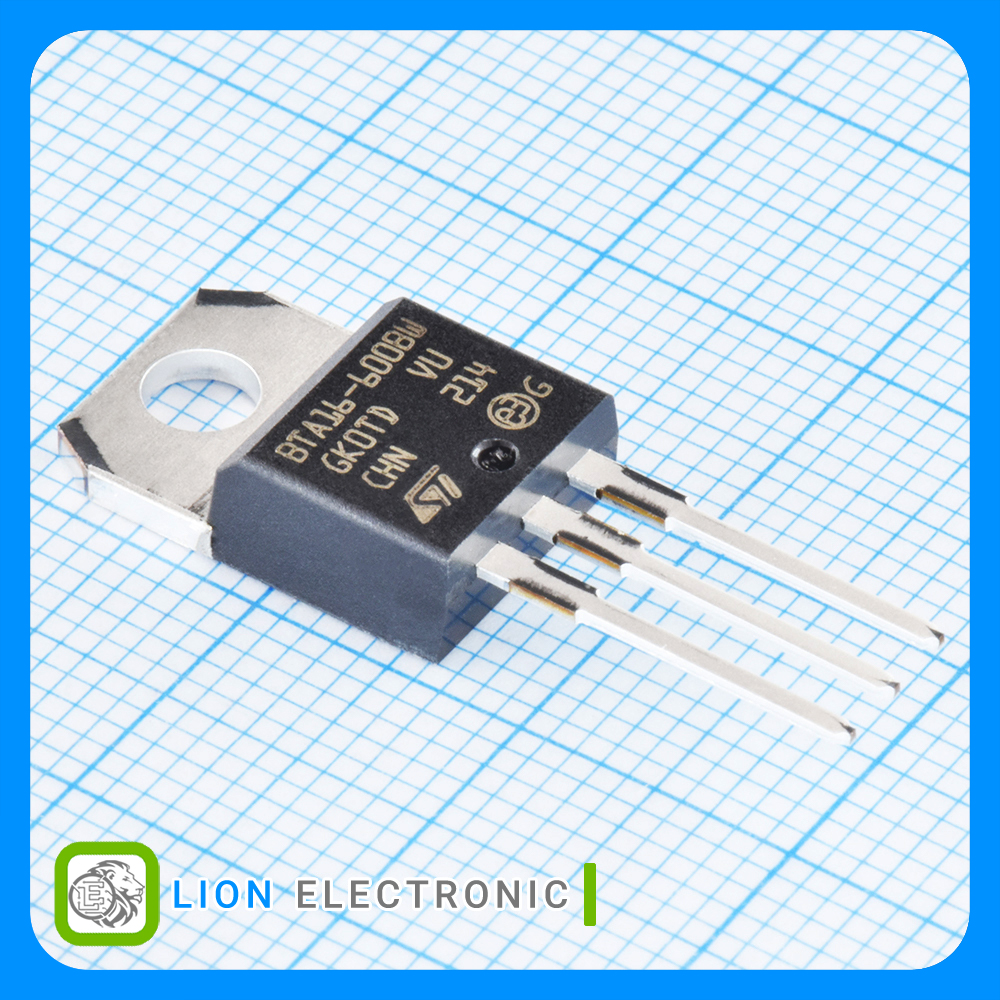

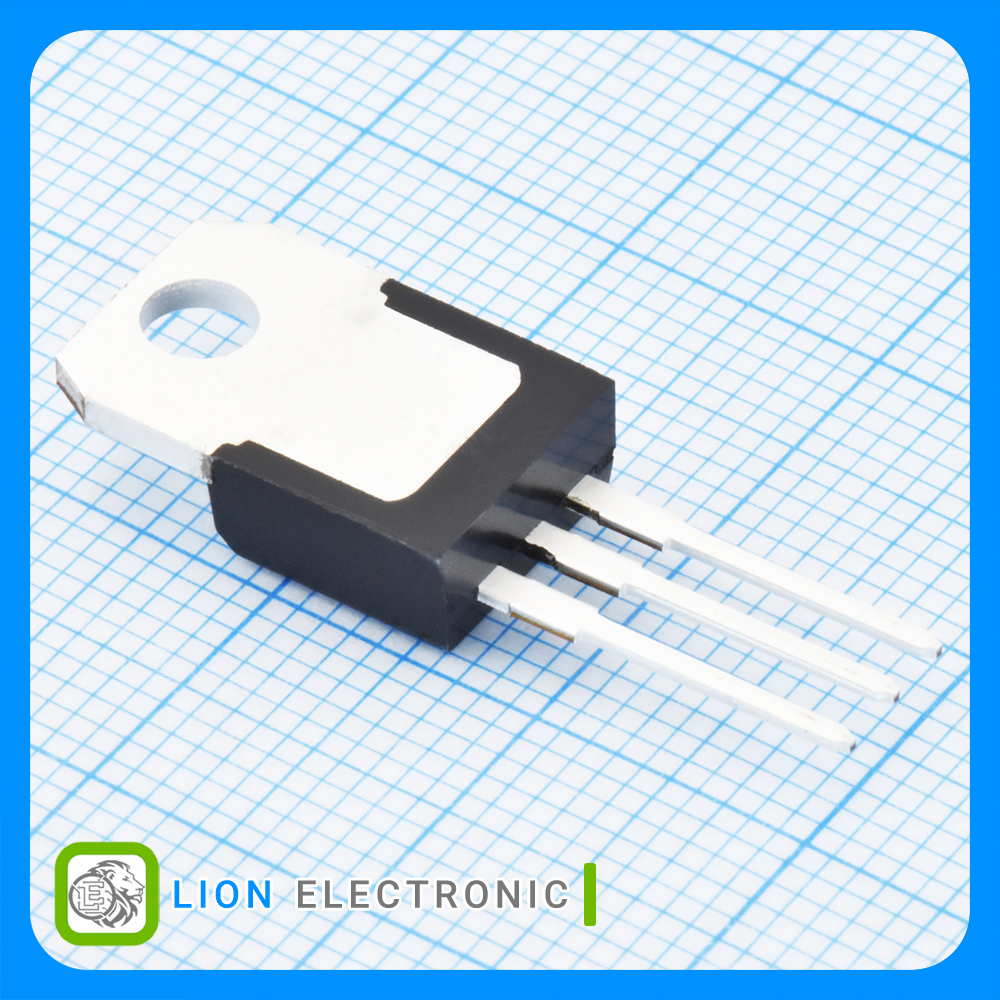

ترایاک BTA16-600BW
Detail
BTA16-600BW
Part Number .
5802
Lion Part .
Datasheet .
STMicroelectronics Manufacture .
ترایاک 600 ولت 16 آمپر با پکیج TO-220-3
Snubberless Triac 600V, 16A with TO-220-3 Package
مشخصات ترایاک BTA16-600BW
ترایاک BTA16-600BW
Part Number .
5uA
Off-State Leakage Current @ VDRM IDRM .
1.55V
On-State Voltage .
16A
On-State RMS Current - It RMS .
-40C
Minimum Operating Temperature .
1.3V
Gate Trigger Voltage - Vgt .
600V
Rated Repetitive Off-State Voltage VDRM .
168A
Non Repetitive On-State Current .
+125C
Maximum Operating Temperature .
Tube
Packaging .
50mA
Holding Current Ih Max .
50mA
Gate Trigger Current - Igt .
Through Hole
Mounting Style .
TO-220-3
Package-Case .
