ترایاک BTA16-800CW
Detail
BTA16-800CW
Part Number .
5805
Lion Part .
Datasheet .
STMicroelectronics Manufacture .

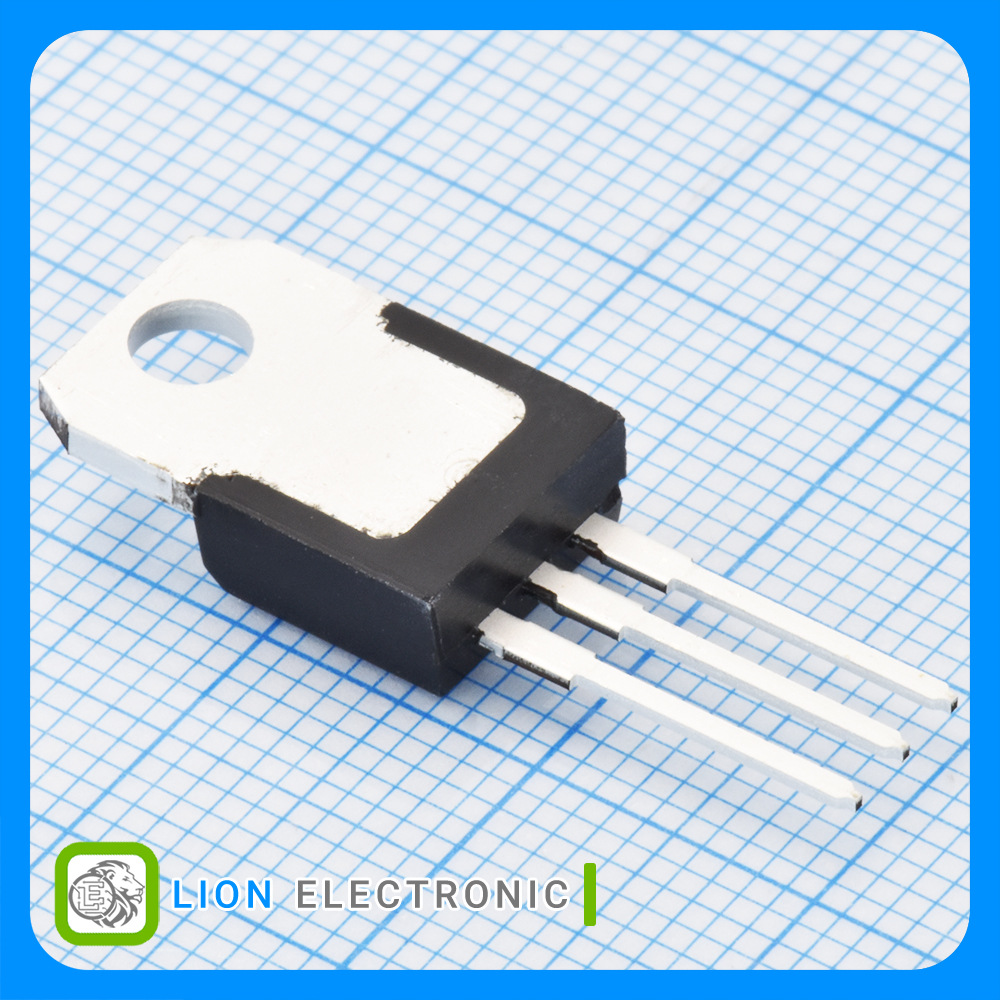

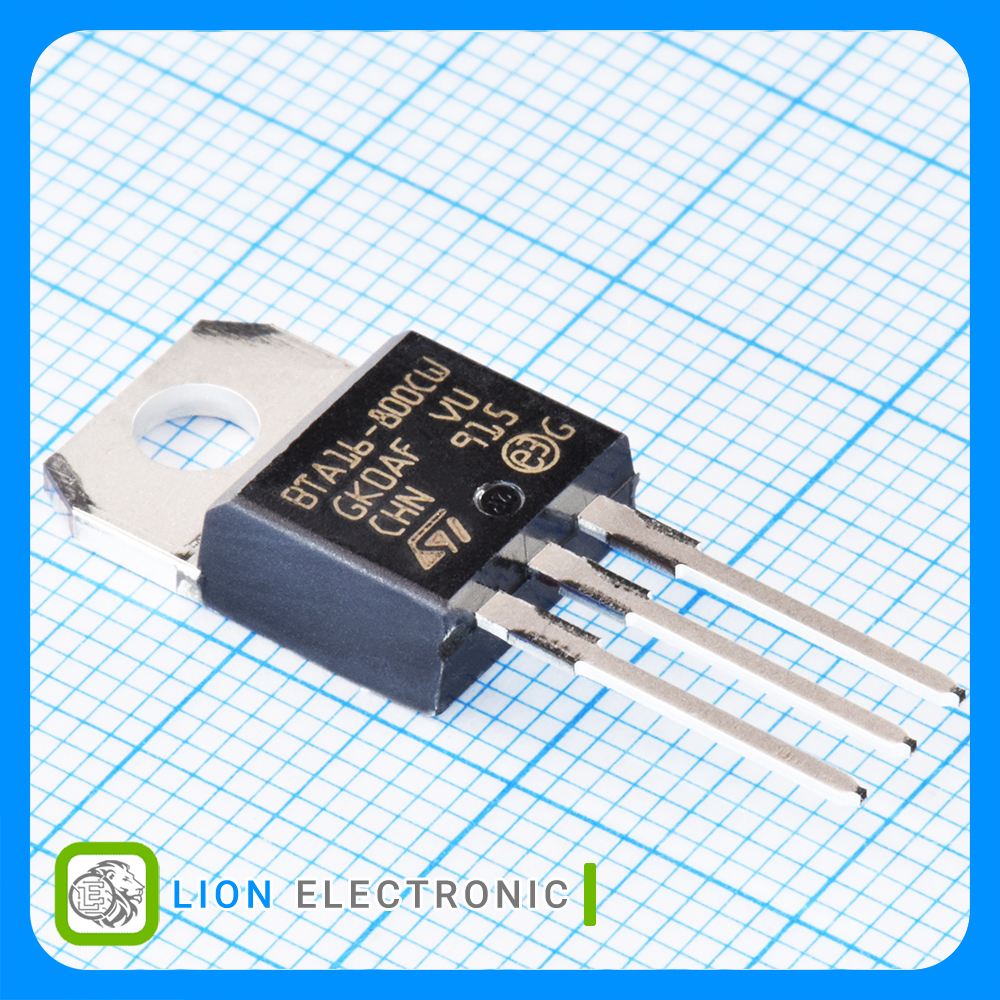

ترایاک 800 ولت 16 آمپر با پکیج TO-220AB-3
Snubberless Triac 800V, 16A with TO-220AB-3 Package
مشخصات ترایاک BTA16-800CW
ترایاک BTA16-800CW
Part Number .
5uA
Off-State Leakage Current @ VDRM IDRM .
1.55V
On-State Voltage .
168A
Non Repetitive On-State Current .
-40C
Minimum Operating Temperature .
16A
On-State RMS Current - It RMS .
1.3V
Gate Trigger Voltage - Vgt .
35mA
Holding Current Ih Max .
+125C
Maximum Operating Temperature .
800V
Rated Repetitive Off-State Voltage VDRM .
35mA
Gate Trigger Current - Igt .
Tube
Packaging .
Through Hole
Mounting Style .
TO-220-3
Package-Case .
