Espressif

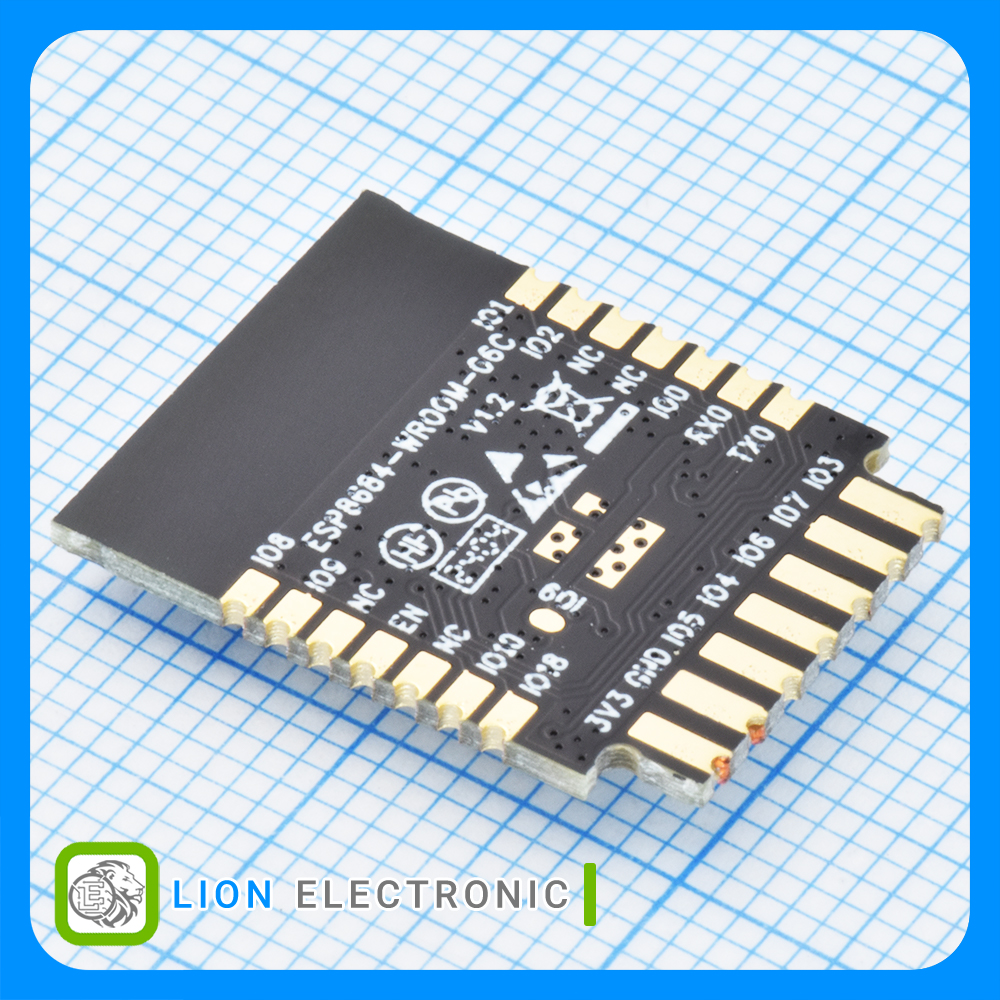

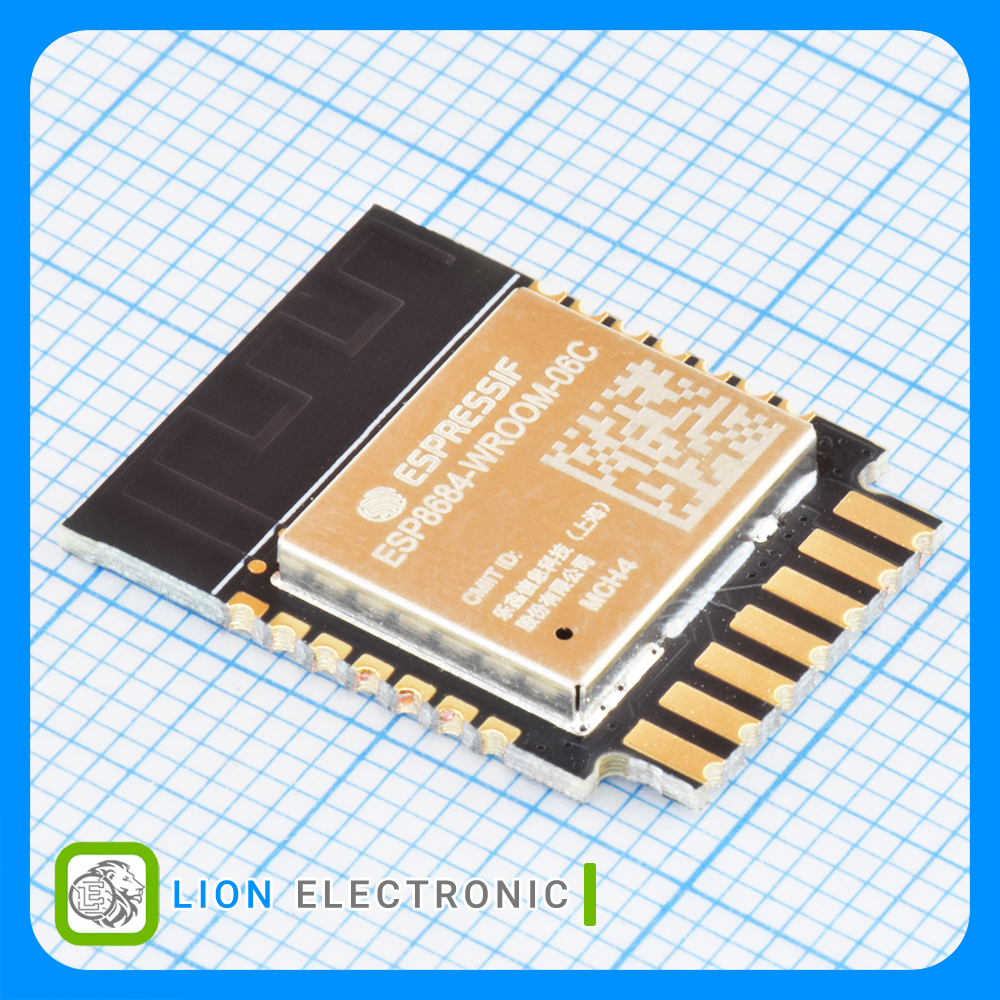

مشخصات ماژول ESP8684-WROOM-06C-H4
ماژول ESP8684-WROOM-06C-H4
Part Number .
-40C
Minimum Operating Temperature .
Reel
Packaging .
PCB
Antenna Connector Type .
14
Number of I-Os .
+105C
Maximum Operating Temperature .
65mA
Supply Current Receiving .
15.8mm x 20.3mm x 2.7mm
Dimensions .
120MHz
Frequency .
370mA, 307mA, 287mA
Supply Current Transmitting .
GPIO, I2C, PWM, SPI, UART
Interface Type .
20dBm
Output Power .
3 - 3.6V
Operating Supply Voltage .
WiFi & Bluetooth Module
Product .
