ماژول ESP32-C6-WROOM-1-N4
Detail

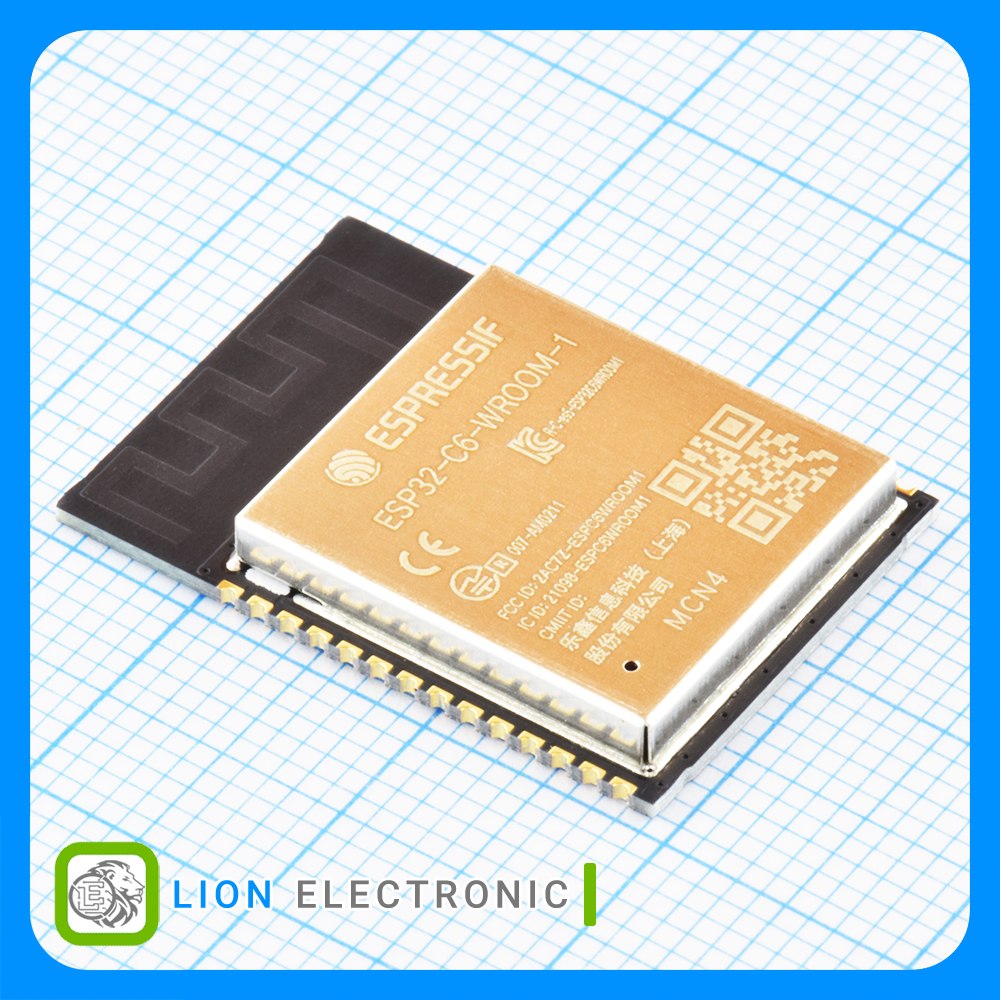

ESP32-C6-WROOM-1-N4
Part Number .
6015
Lion Part .
Datasheet .
Espressif Manufacture .
Module that supports 2.4GHz Wi-Fi 6 (802.11 ax), Bluetooth 5 (LE), Zigbee and Thread(802.15.4)
Built Around ESP32-C6 Series of SoCs, 32bit RISC-V Single-Core Microprocessor
4MB Flash

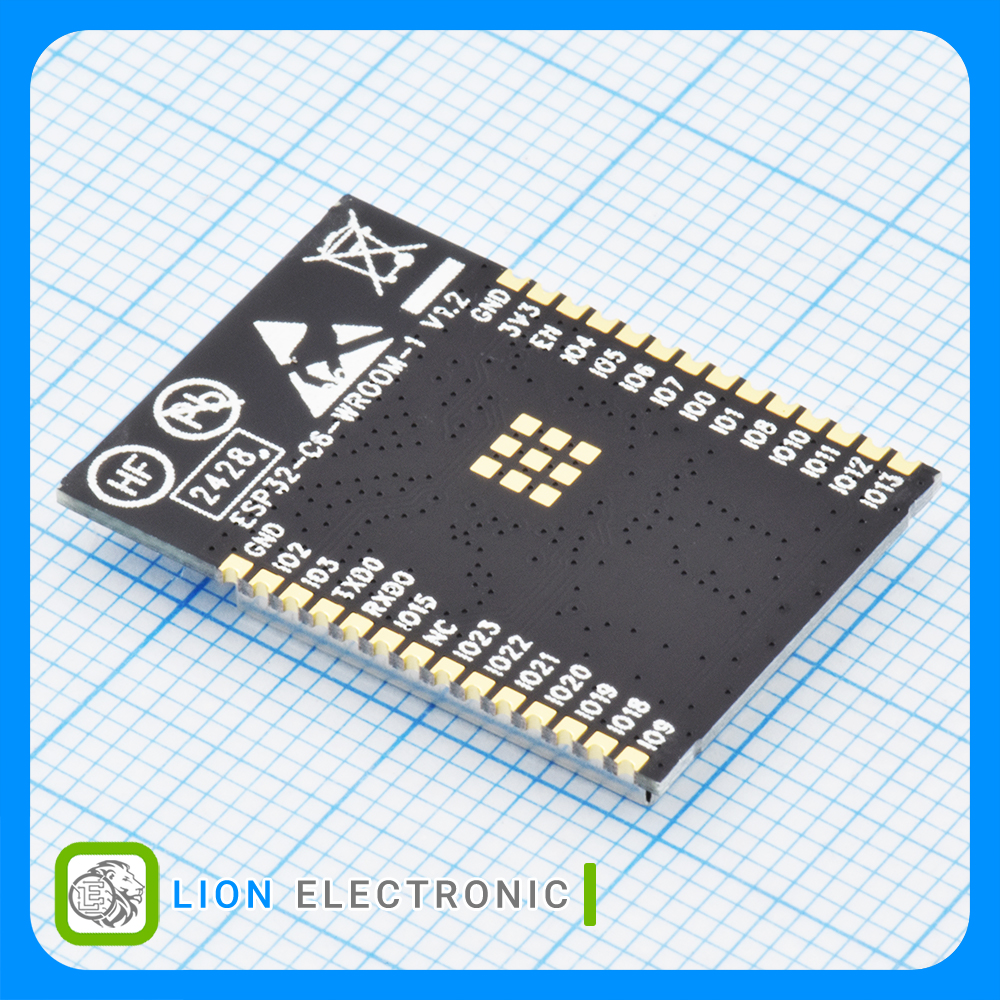

23 GPIOs, Rich Set of Peripherals
On-Board PCB Antenna
مشخصات ماژول ESP32-C6-WROOM-1-N4
ماژول ESP32-C6-WROOM-1-N4
Part Number .
Reel
Packaging .
-40C
Minimum Operating Temperature .
PCB
Antenna Connector Type .
+85C
Maximum Operating Temperature .
23
Number of I-Os .
160MHz
Frequency .
N/A
Supply Current Receiving .
18mm x 25.5mm x 3.1mm
Dimensions .
N/A
Supply Current Transmitting .
N/A
Output Power .
3 - 3.6V
Operating Supply Voltage .
WiFi & Bluetooth Module
Product .
-
Interface Type .
