IXYS
مشخصات ماسفت IXTQ130N10T

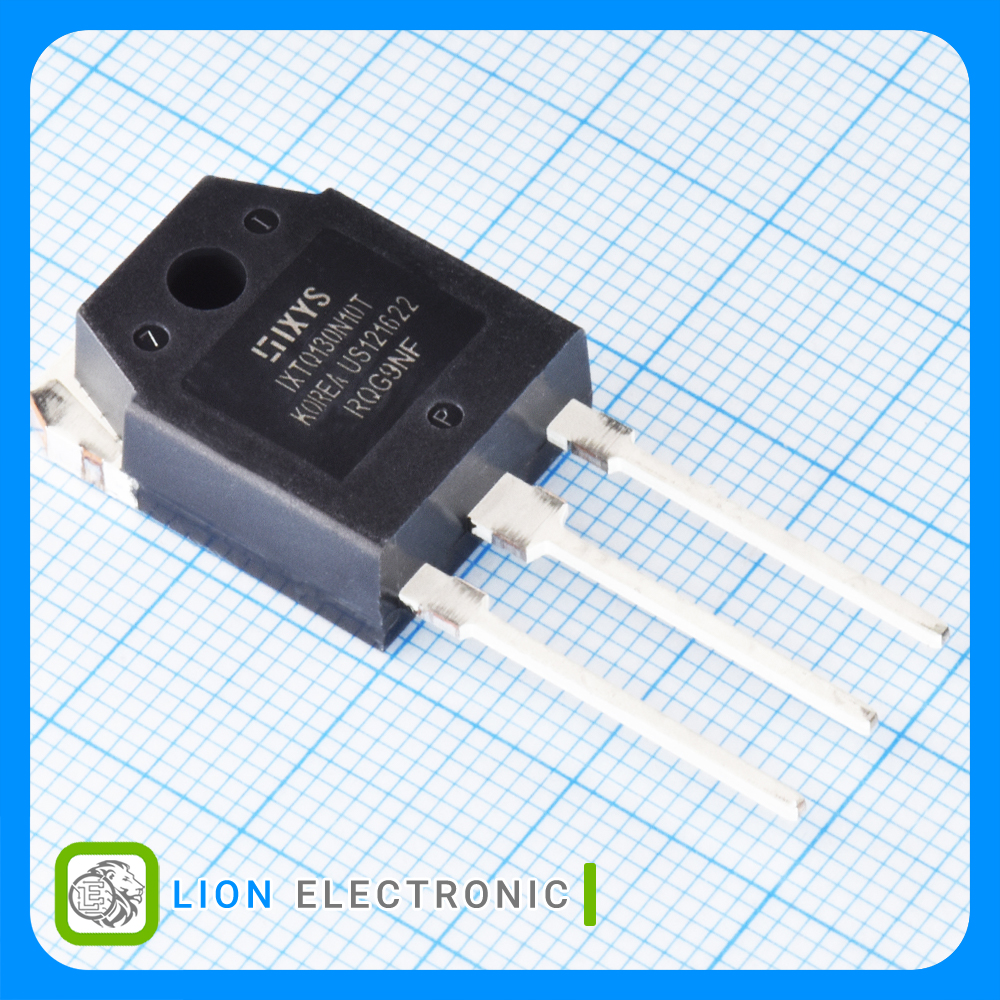

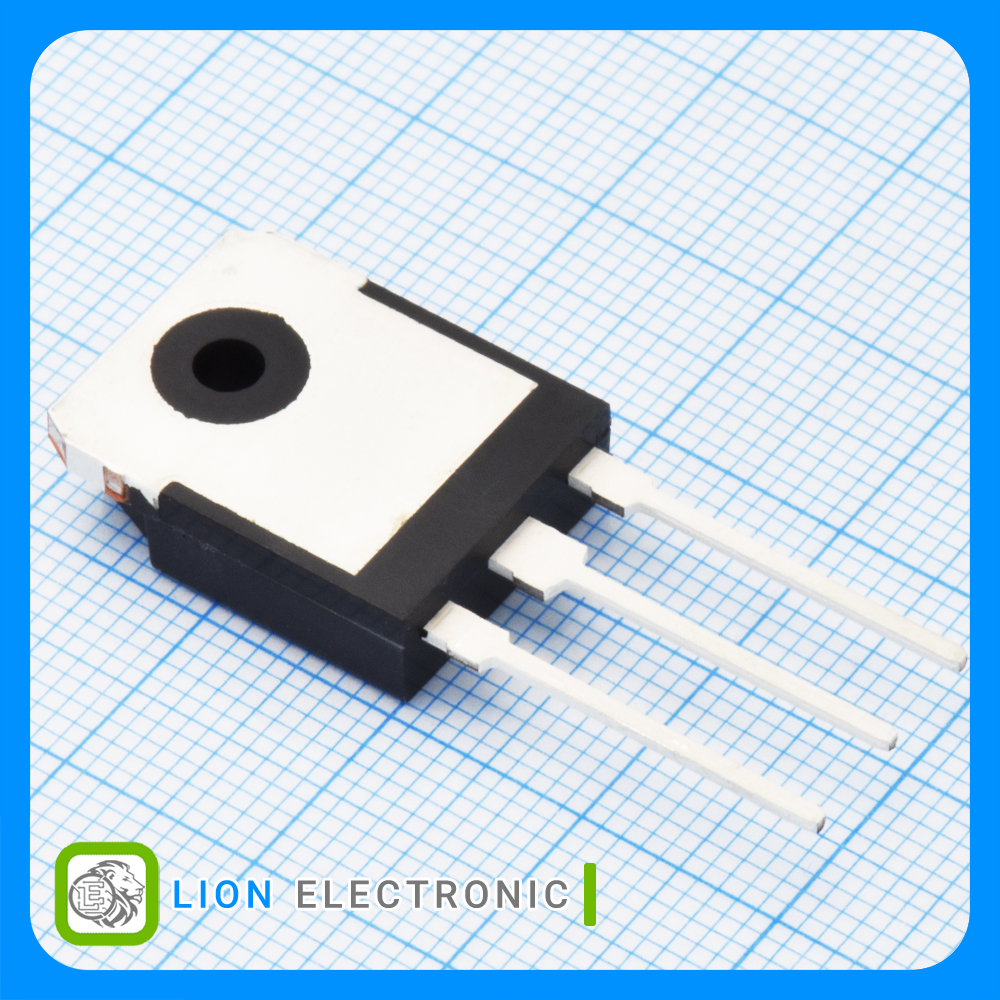

ماسفت IXTQ130N10T
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
+175C
Maximum Operating Temperature .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
28ns
Rise Time .
100V
Vds - Drain - Source Breakdown Voltage .
Single
Configuration .
47ns
Fall Time .
2.5V
Vgs th - Gate - Source Threshold Voltage .
9.1mΩ
Rds On - Drain - Source Resistance .
104nC
Qg - Gate Charge .
130A
Id - Continuous Drain Current .
360W
Pd - Power Dissipation .
TO-3P
Package-Case .
