TOSHIBA
مشخصات ماسفت TK25S06N1L

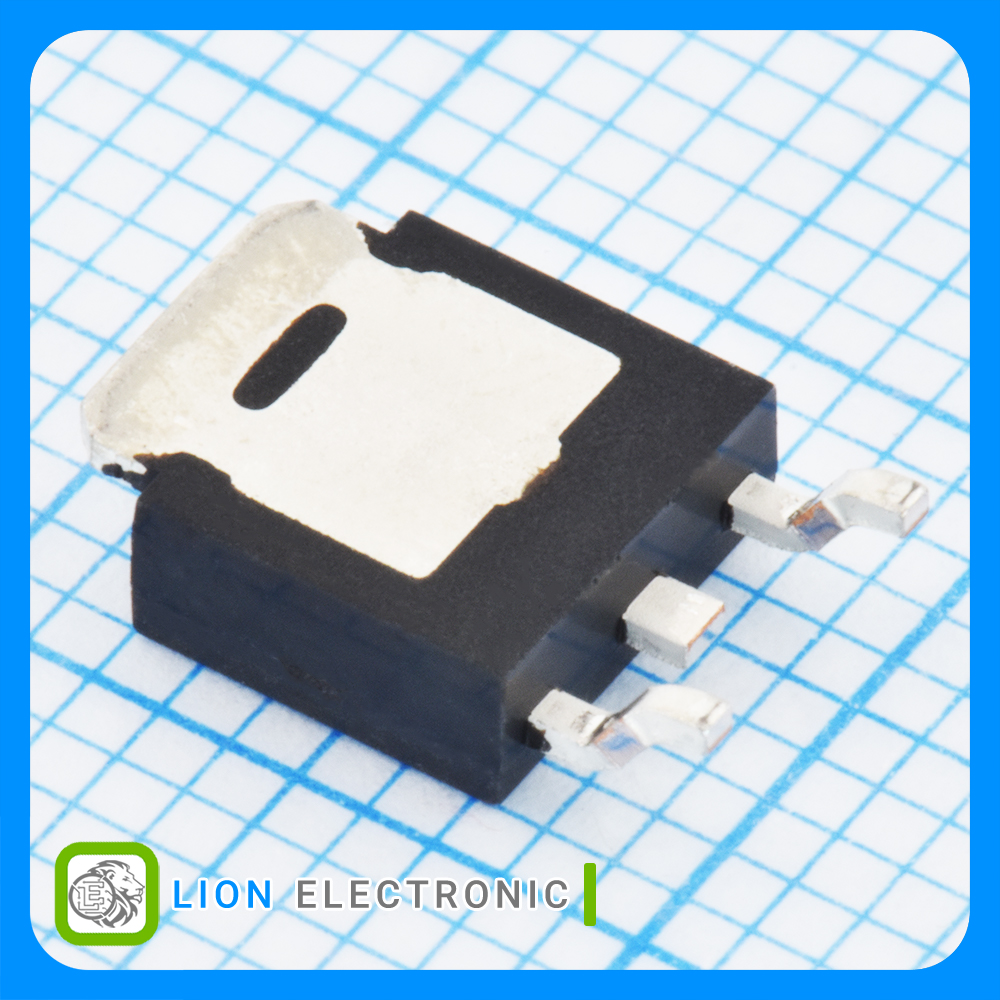

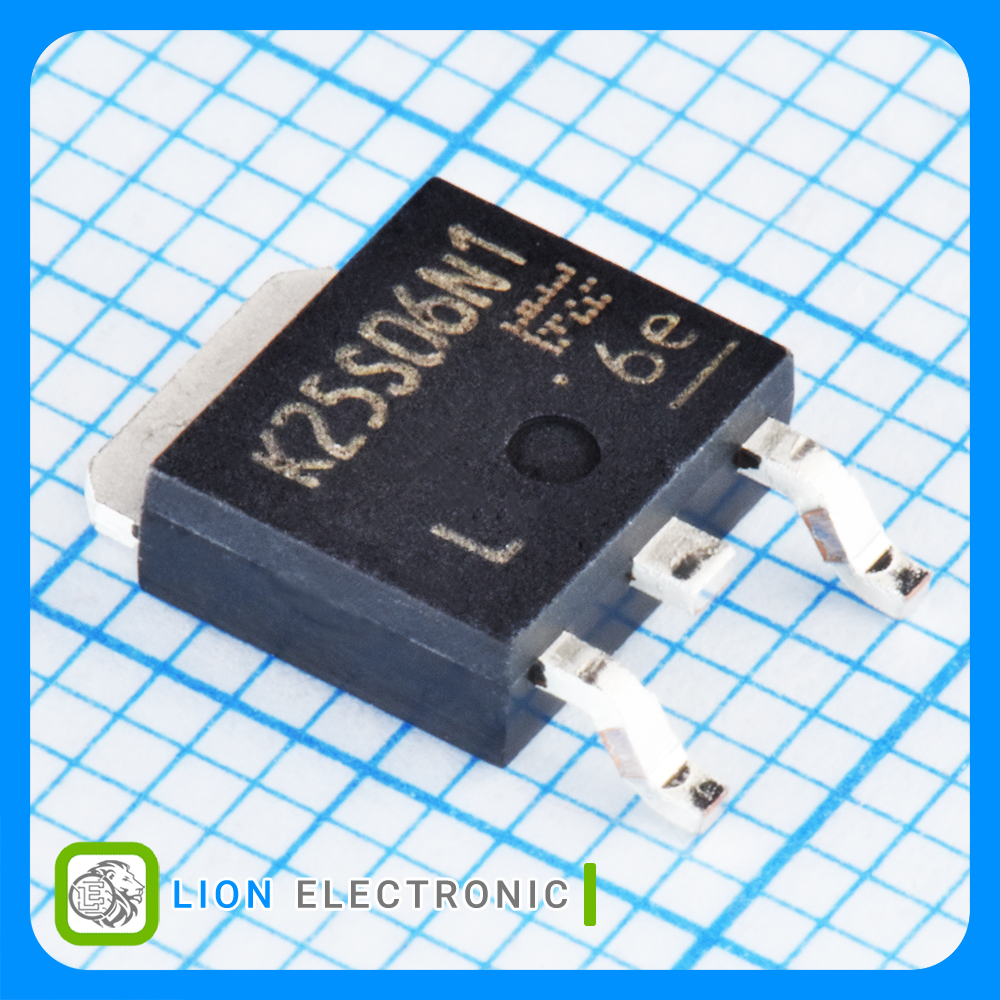

ماسفت TK25S06N1L
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
+175C
Maximum Operating Temperature .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
Reel
Packaging .
SMD/SMT
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
60V
Vds - Drain - Source Breakdown Voltage .
Single
Configuration .
1.5V
Vgs th - Gate - Source Threshold Voltage .
15nC
Qg - Gate Charge .
15mΩ
Rds On - Drain - Source Resistance .
DPAK
Package-Case .
25A
Id - Continuous Drain Current .
57W
Pd - Power Dissipation .
