TOSHIBA
مشخصات TK40E06N1

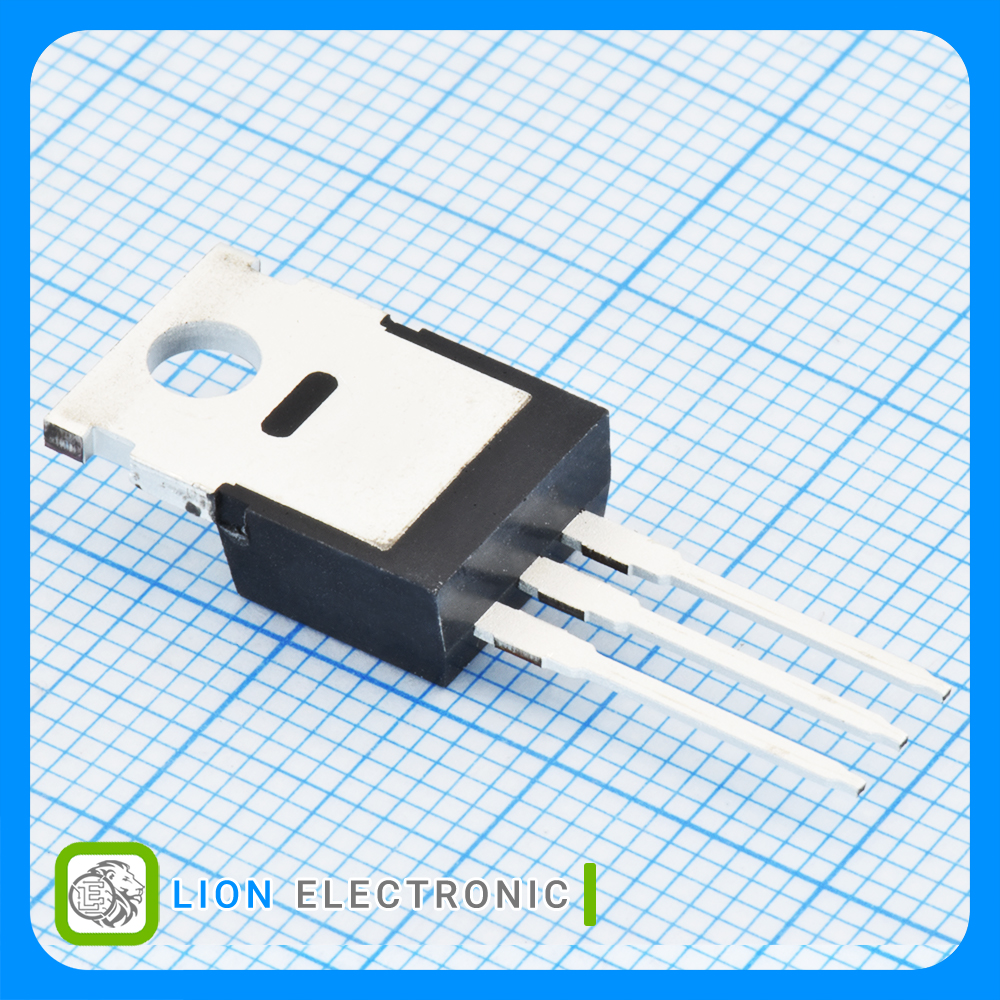

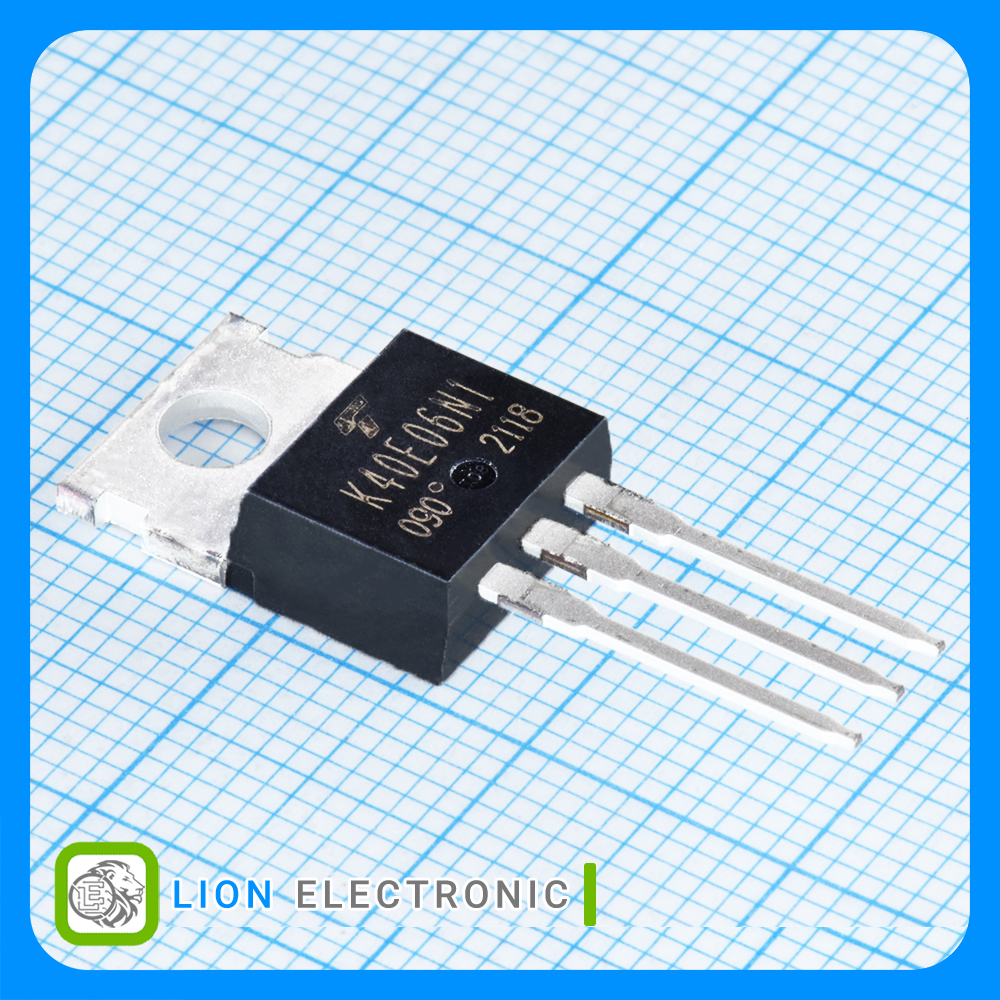

TK40E06N1
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
Through Hole
Mounting Style .
-
Packaging .
±20V
Vgs - Gate - Source Voltage .
60V
Vds - Drain - Source Breakdown Voltage .
Single
Configuration .
2V
Vgs th - Gate - Source Threshold Voltage .
8.4mΩ
Rds On - Drain - Source Resistance .
23nC
Qg - Gate Charge .
67W
Pd - Power Dissipation .
60A
Id - Continuous Drain Current .
TO-220-3
Package-Case .
