ماسفت IRF9540NPBF
Detail
IRF9540NPBF
Part Number .
200
Lion Part .
Datasheet .
International Rectifier Manufacture .

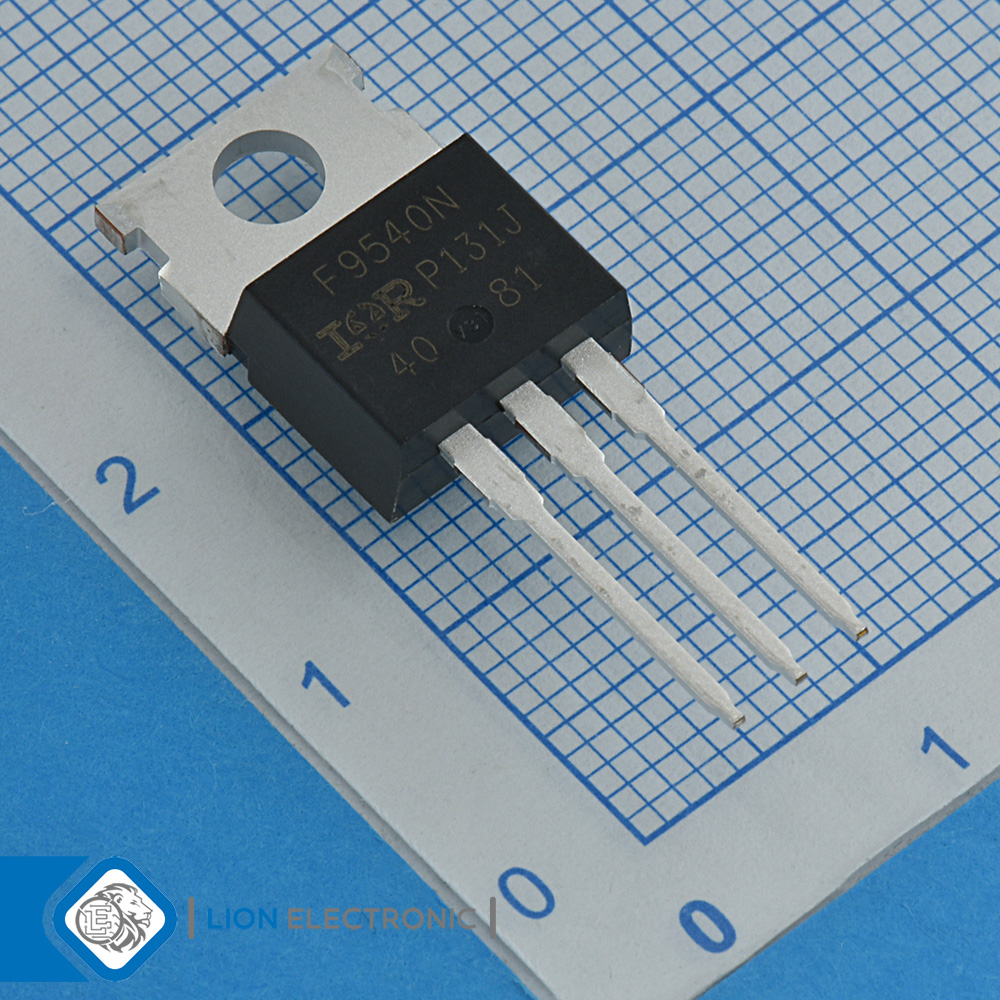

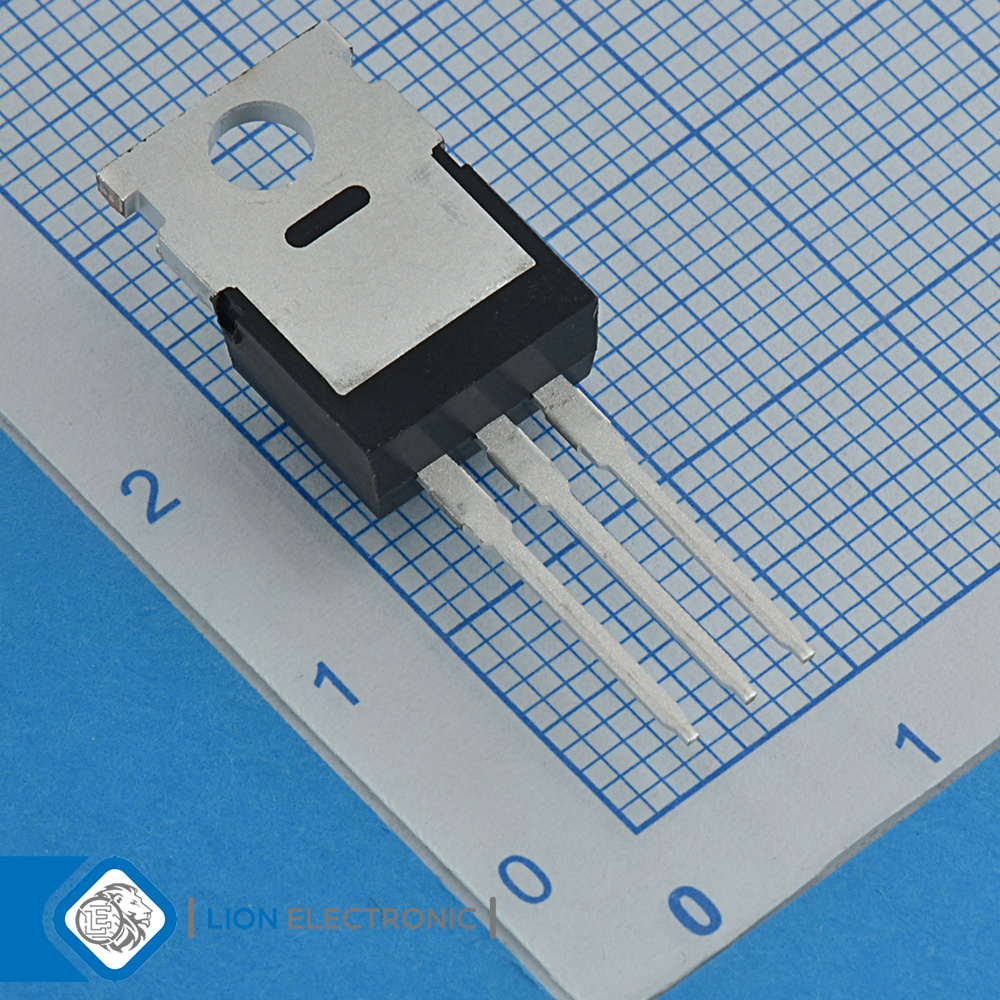

ماسفت 100 ولت 23 آمپر نوع P با پکیج TO-220
P-CH MOS 100V 23A TO-220
مشخصات ماسفت IRF9540NPBF
ماسفت IRF9540NPBF
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
-100V
Vds - Drain - Source Breakdown Voltage .
+175C
Maximum Operating Temperature .
-2V
Vgs th - Gate - Source Threshold Voltage .
-55C
Minimum Operating Temperature .
P-Channel
Transistor Polarity .
-23A
Id - Continuous Drain Current .
Tube
Packaging .
Through Hole
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
Single
Configuration .
97nC
Qg - Gate Charge .
117mΩ
Rds On - Drain - Source Resistance .
140W
Pd - Power Dissipation .
TO-220-3
Package-Case .
