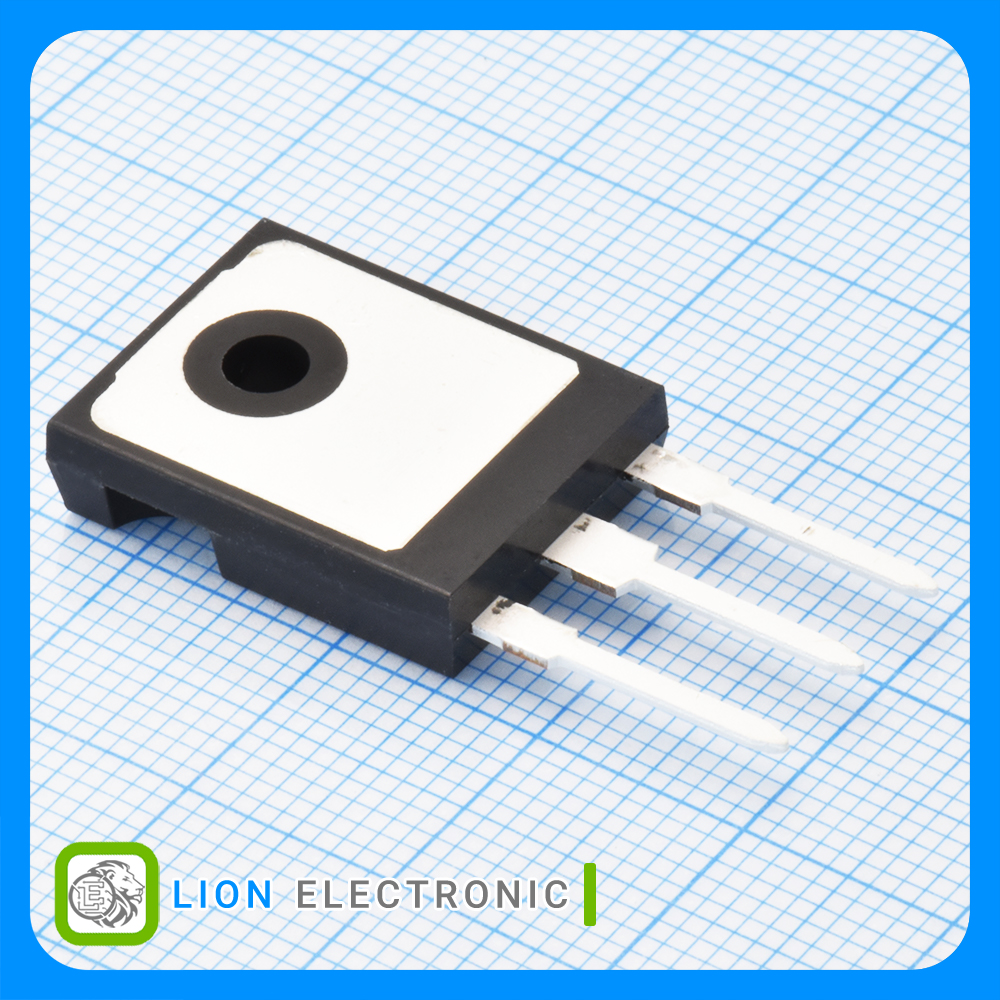

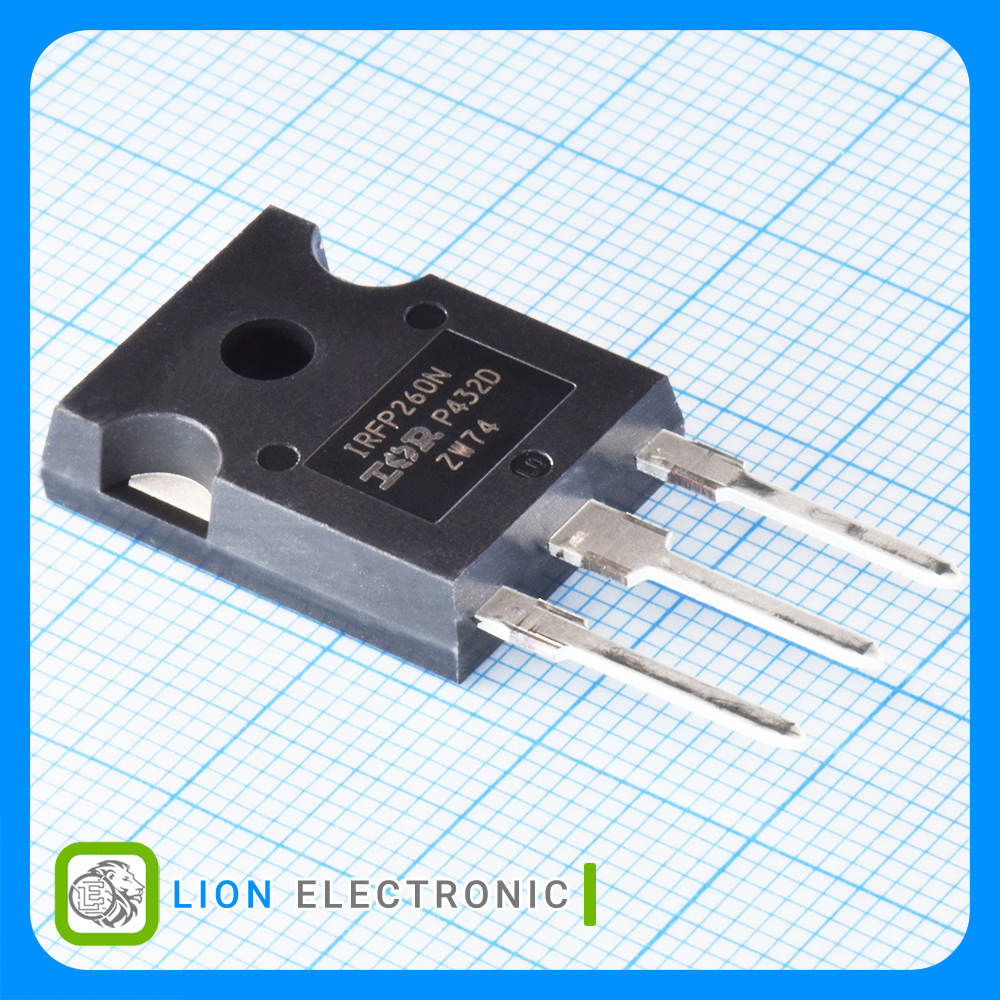

ماسفت IRFP260NPBF
Detail
IRFP260NPBF
Part Number .
205
Lion Part .
Datasheet .
International Rectifier Manufacture .
ماسفت 200 ولت 50 آمپر نوع N با پکیج TO-247-3
N-CH MOS 200V 50A TO-247-3
مشخصات ماسفت IRFP260NPBF
ماسفت IRFP260NPBF
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
+175C
Maximum Operating Temperature .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
200V
Vds - Drain - Source Breakdown Voltage .
Single
Configuration .
60ns
Rise Time .
48ns
Fall Time .
2V
Vgs th - Gate - Source Threshold Voltage .
40mΩ
Rds On - Drain - Source Resistance .
50A
Id - Continuous Drain Current .
234nC
Qg - Gate Charge .
300W
Pd - Power Dissipation .
TO-247
Package-Case .
