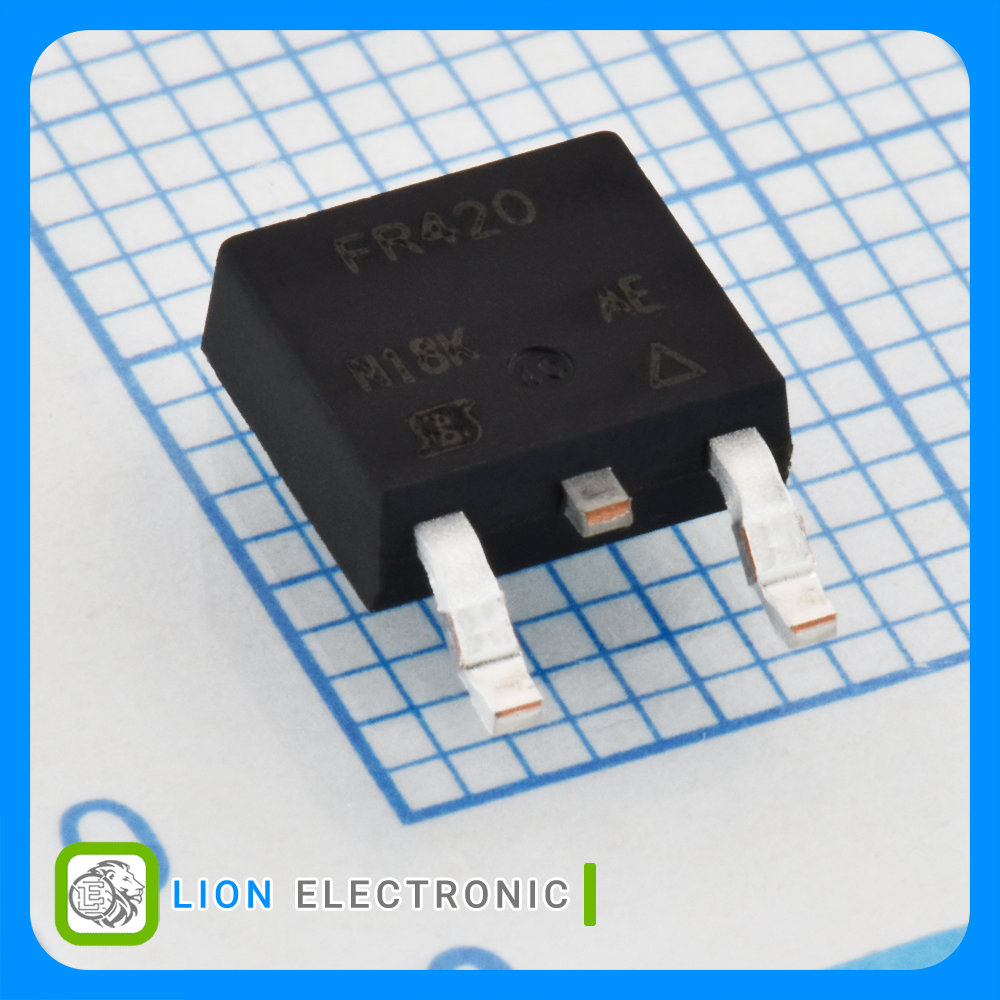

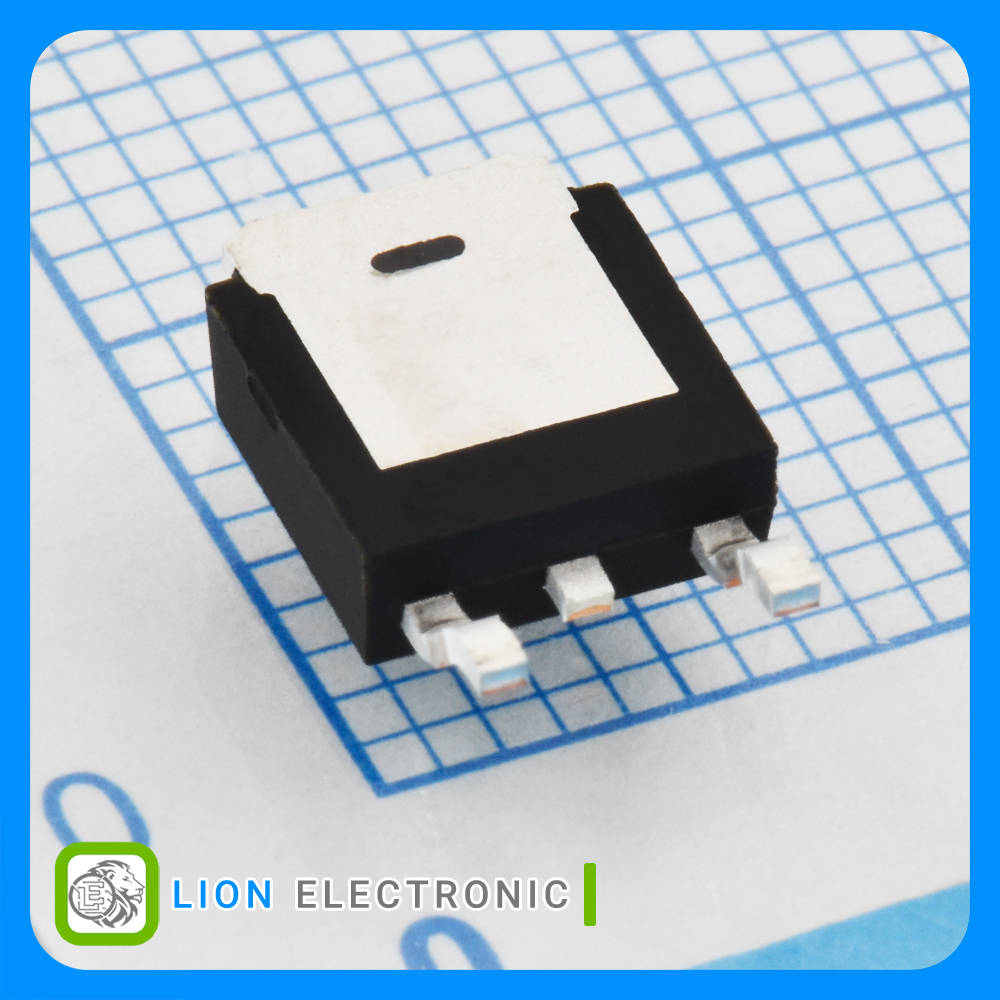

ماسفت IRFR420TRPBF
Detail
IRFR420TRPBF
Part Number .
210
Lion Part .
Datasheet .
Vishay Semiconductors Manufacture .
ماسفت 500 ولت 2.4 آمپر نوع N با پکیج TO-252-3
N-CH MOS 500V 2.4A TO-252-3
مشخصات ماسفت IRFR420TRPBF
ماسفت IRFR420TRPBF
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
Reel
Packaging .
SMD/SMT
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
Single
Configuration .
500V
Vds - Drain - Source Breakdown Voltage .
2V
Vgs th - Gate - Source Threshold Voltage .
19nC
Qg - Gate Charge .
2.4A
Id - Continuous Drain Current .
DPAK
Package-Case .
42W
Pd - Power Dissipation .
3Ω
Rds On - Drain - Source Resistance .
