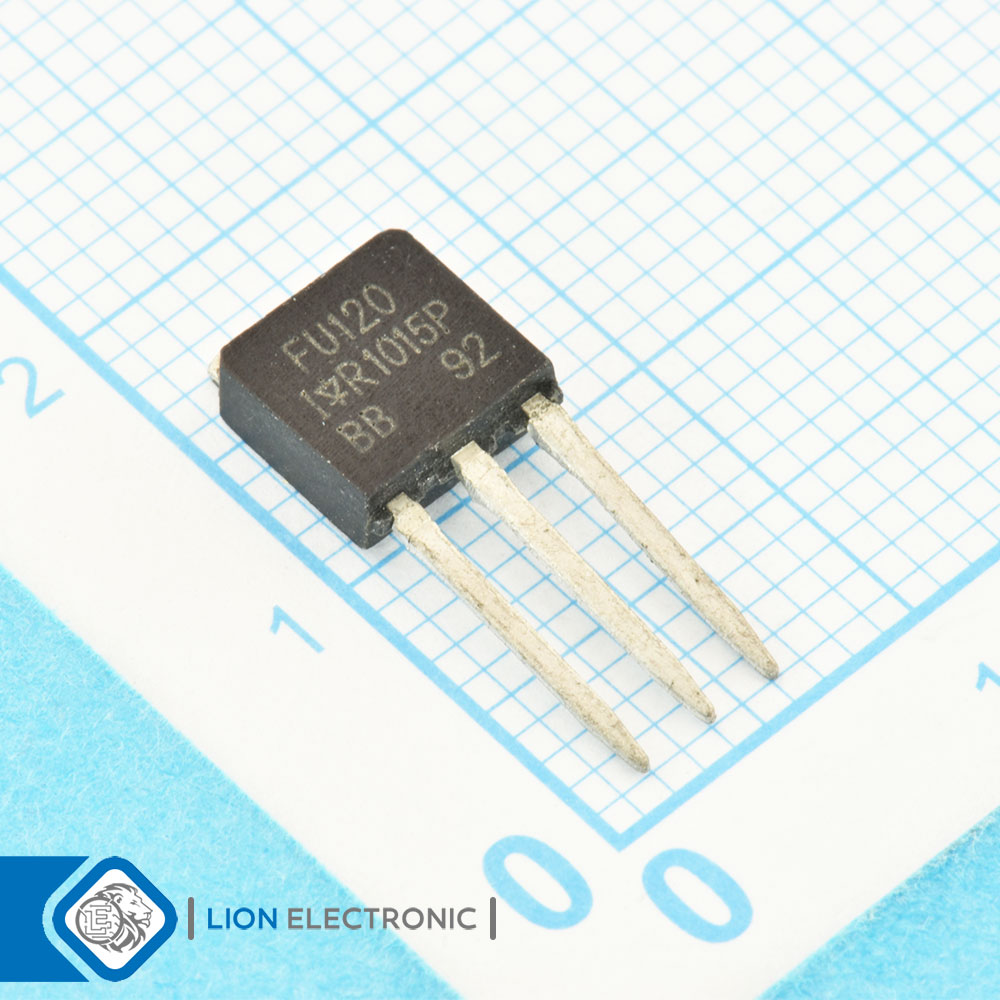

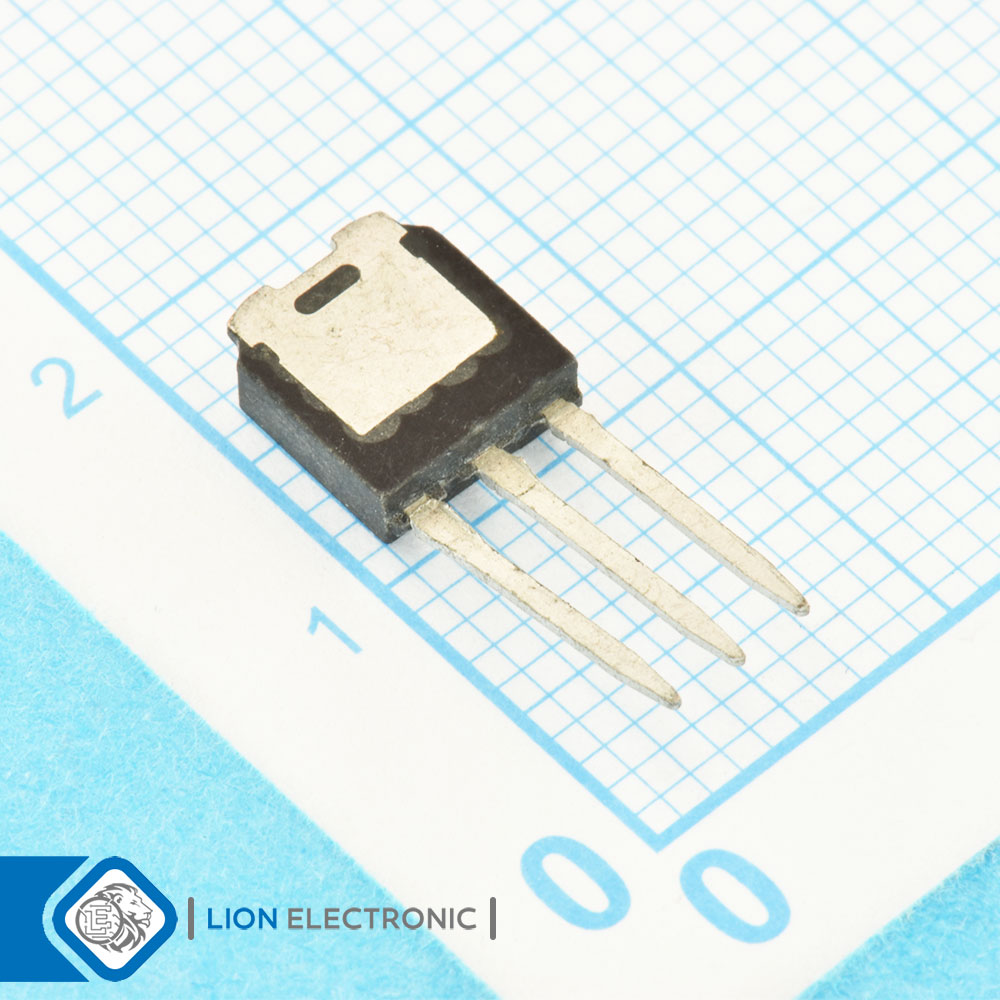

ماسفت IRFU120NPBF
Detail
IRFU120NPBF
Part Number .
214
Lion Part .
Datasheet .
International Rectifier Manufacture .
ماسفت 100 ولت 9.1 آمپر نوع N با پکیج TO-251-3
N-CH MOS 100V 9.1A TO-251-3
مشخصات ماسفت IRFU120NPBF
ماسفت IRFU120NPBF
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
+175C
Maximum Operating Temperature .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
100V
Vds - Drain - Source Breakdown Voltage .
Single
Configuration .
2V
Vgs th - Gate - Source Threshold Voltage .
25nC
Qg - Gate Charge .
9.4A
Id - Continuous Drain Current .
48W
Pd - Power Dissipation .
210mΩ
Rds On - Drain - Source Resistance .
TO-251-3
Package-Case .
