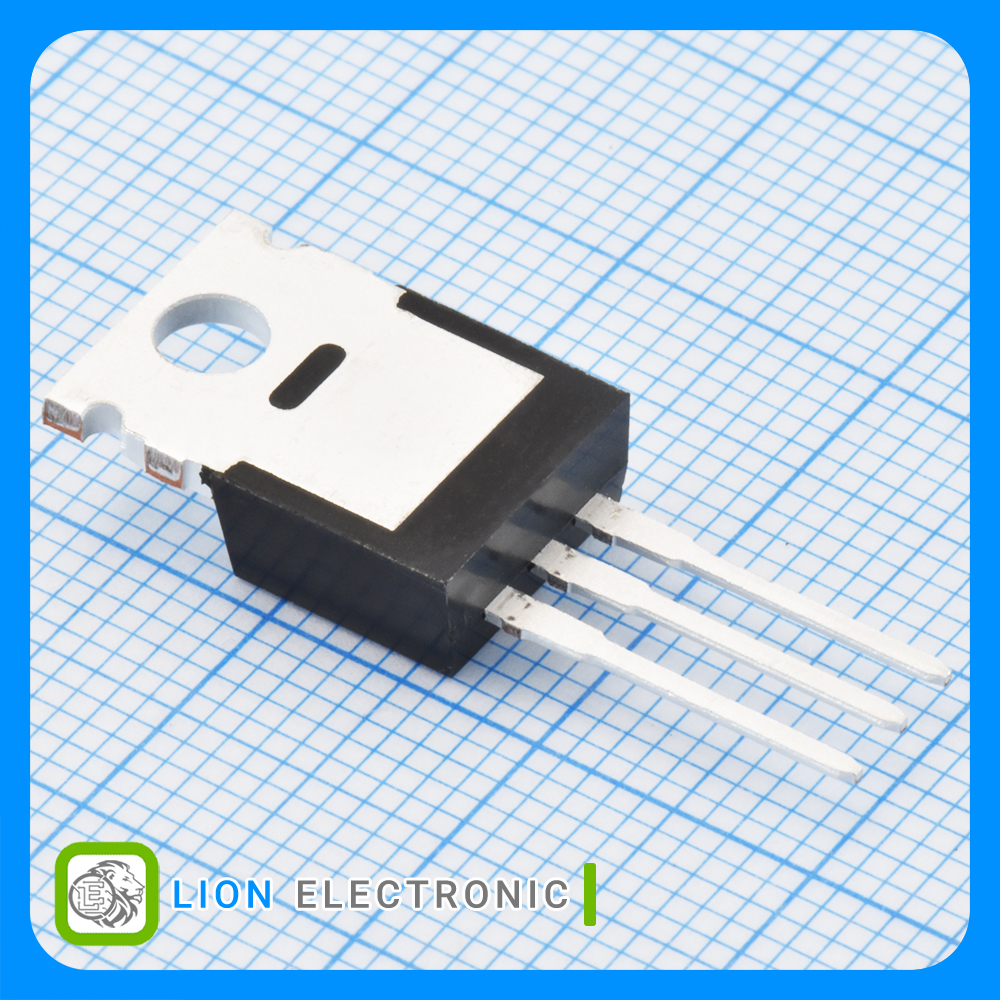

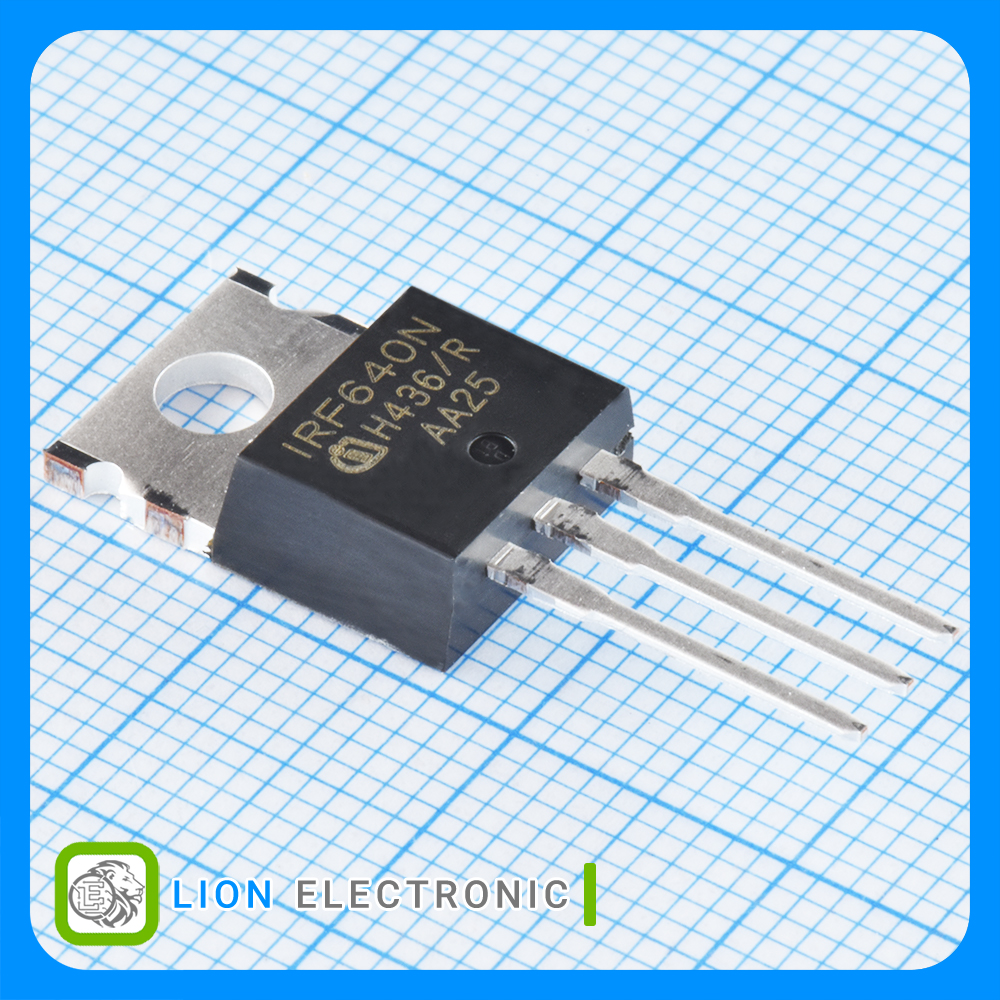

ماسفت IRF640NPBF
Detail
IRF640NPBF
Part Number .
215
Lion Part .
Datasheet .
International Rectifier Manufacture .
ماسفت 200 ولت 18 آمپر نوع N با پکیج TO-220-3
N-CH MOS 200V 18A TO-220-3
مشخصات ماسفت IRF640NPBF
ماسفت IRF640NPBF
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
+175C
Maximum Operating Temperature .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
200V
Vds - Drain - Source Breakdown Voltage .
Single
Configuration .
2V
Vgs th - Gate - Source Threshold Voltage .
67nC
Qg - Gate Charge .
18A
Id - Continuous Drain Current .
150mΩ
Rds On - Drain - Source Resistance .
150W
Pd - Power Dissipation .
TO-220-3
Package-Case .
