TOSHIBA
مشخصات ماسفت TK15A60U

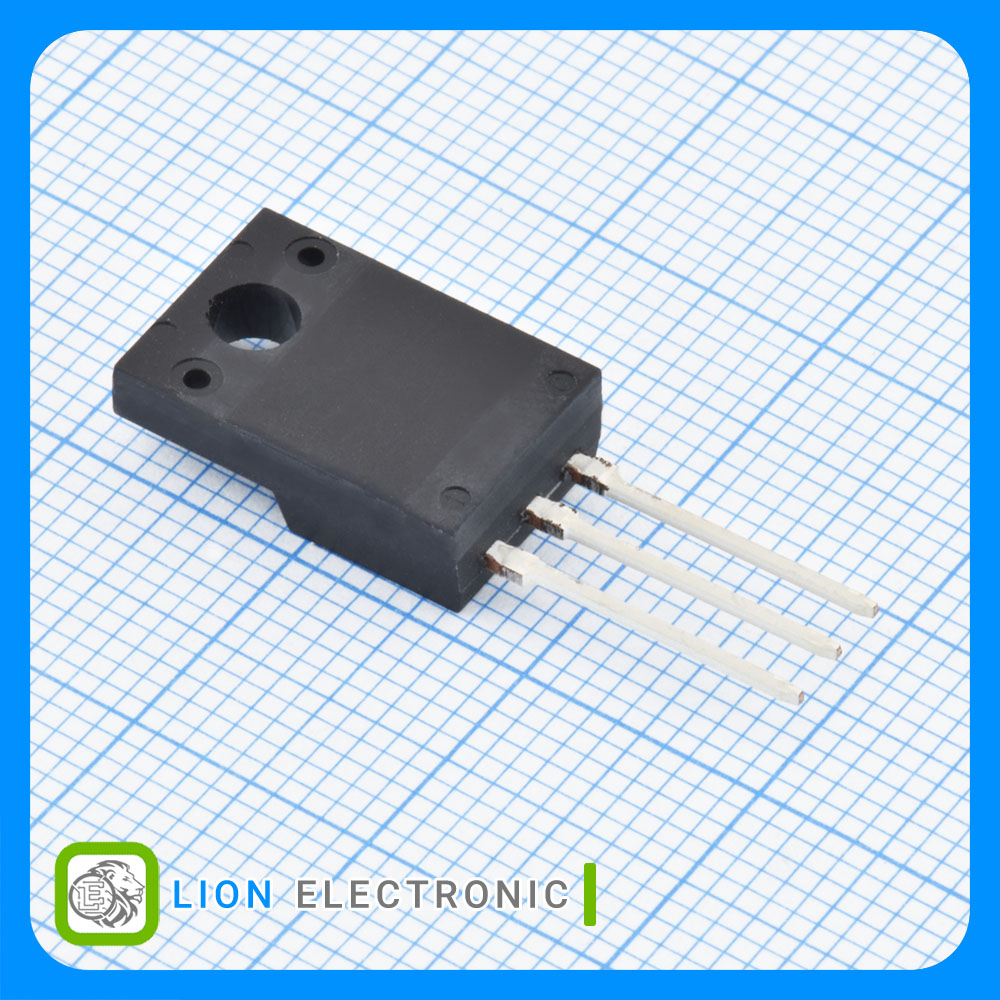

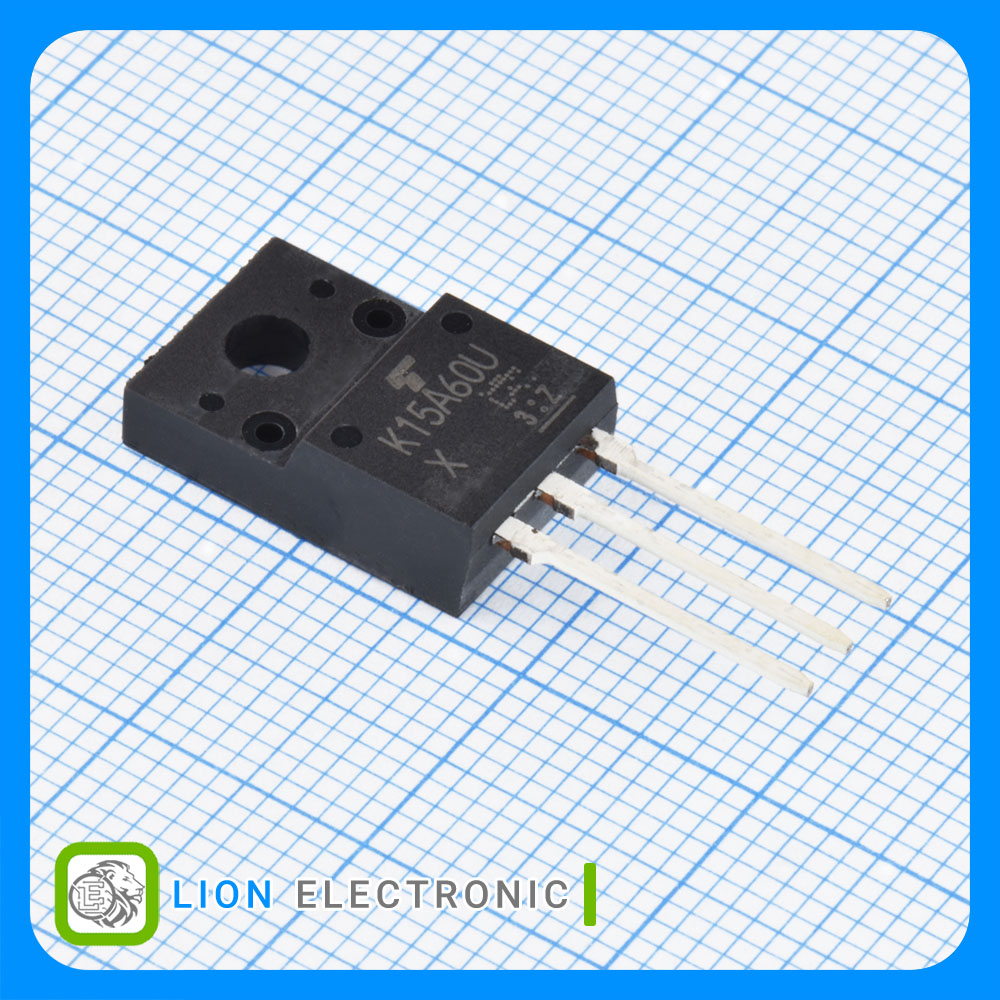

ماسفت TK15A60U
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
±30V
Vgs - Gate - Source Voltage .
Single
Configuration .
600V
Vds - Drain - Source Breakdown Voltage .
3V
Vgs th - Gate - Source Threshold Voltage .
17nC
Qg - Gate Charge .
40W
Pd - Power Dissipation .
15A
Id - Continuous Drain Current .
240mΩ
Rds On - Drain - Source Resistance .
TO-220FP-3
Package-Case .
