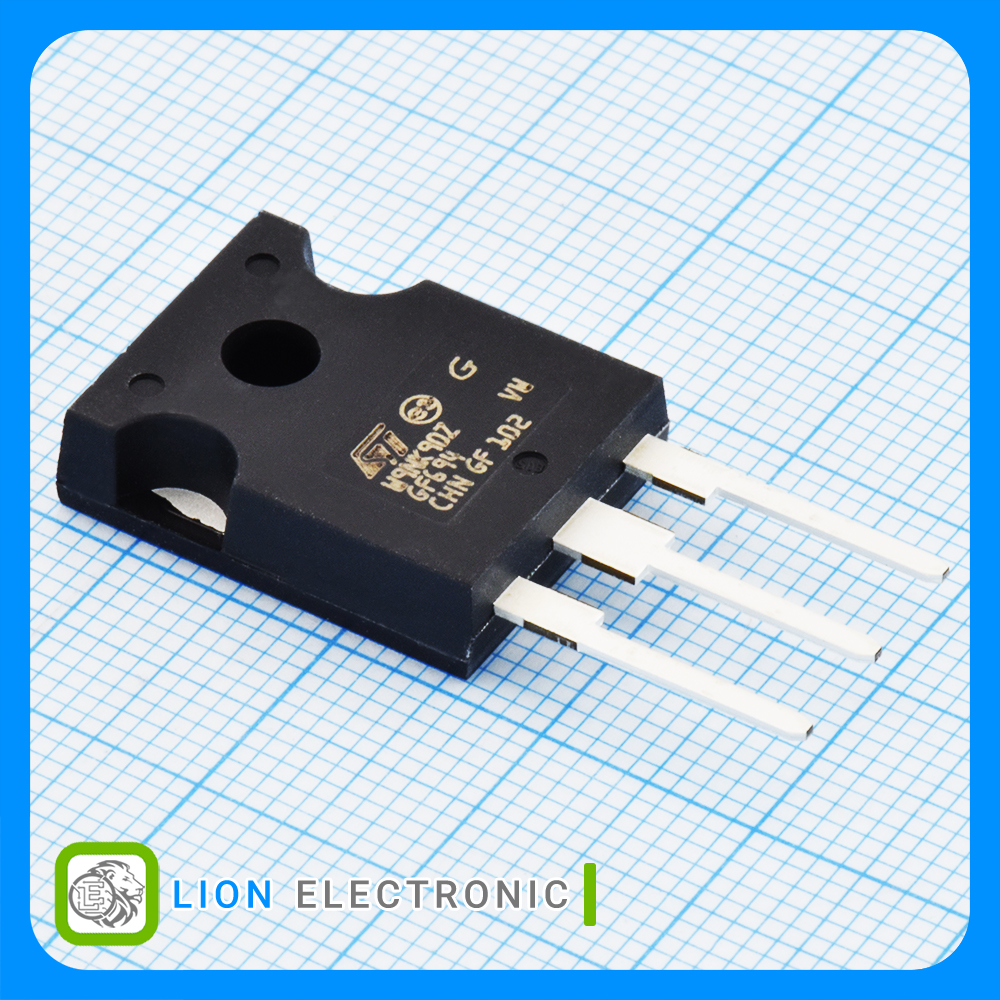

ماسفت STW9NK90Z
Detail
STW9NK90Z
Part Number .
2249
Lion Part .
Datasheet .
STMicroelectronics Manufacture .
ماسفت 900 ولت 8 آمپر نوع N با پکیج TO-247-3
N-CH MOS 900V 8A TO-247-3
مشخصات ماسفت STW9NK90Z
ماسفت STW9NK90Z
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
13ns
Rise Time .
±30V
Vgs - Gate - Source Voltage .
28ns
Fall Time .
Single
Configuration .
900V
Vds - Drain - Source Breakdown Voltage .
3V
Vgs th - Gate - Source Threshold Voltage .
8A
Id - Continuous Drain Current .
72nC
Qg - Gate Charge .
160W
Pd - Power Dissipation .
1.1Ω
Rds On - Drain - Source Resistance .
TO-247
Package-Case .
