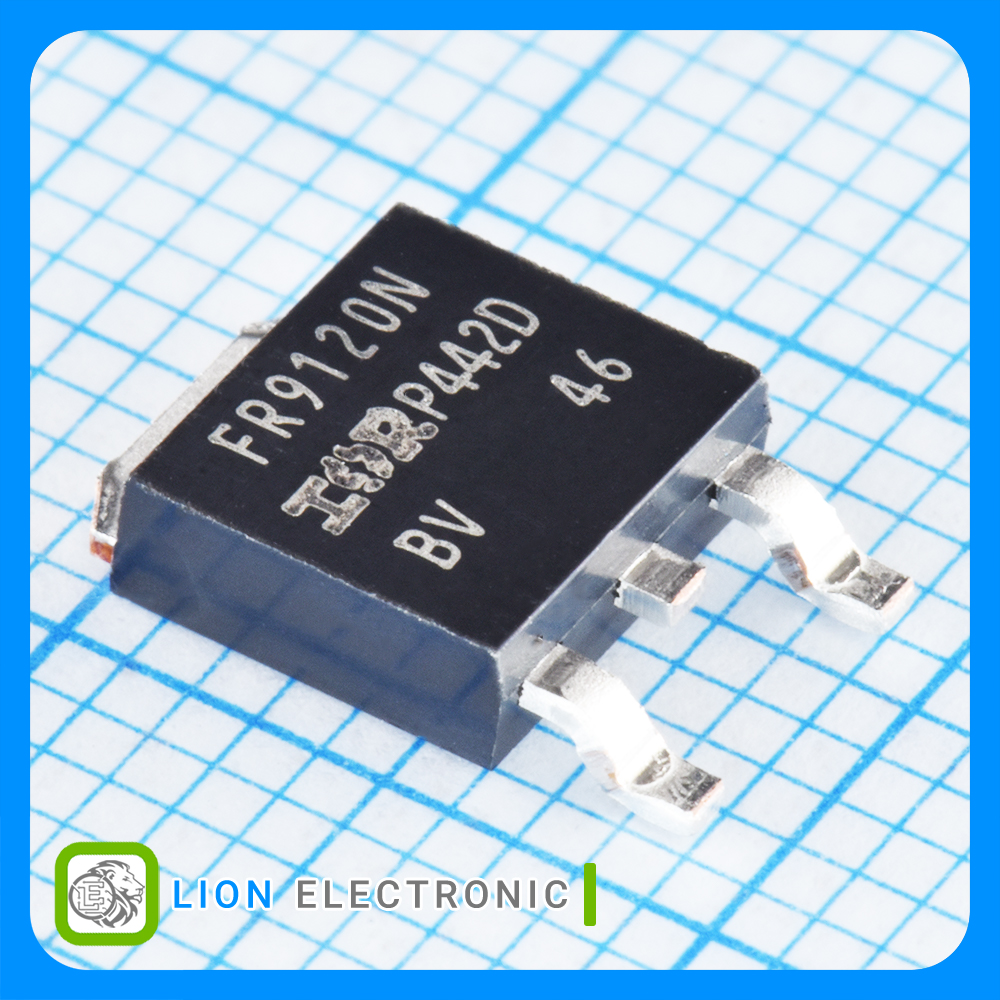

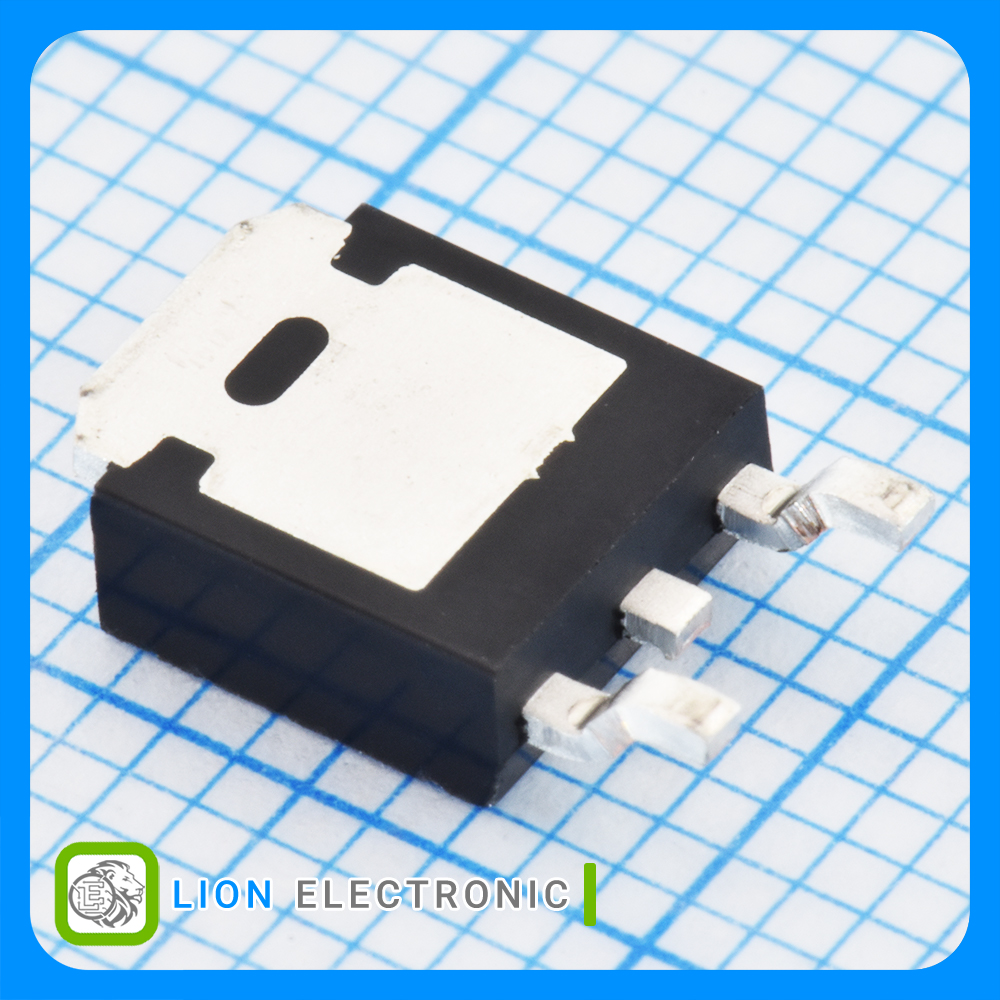

ماسفت IRFR9120NTRPBF
Detail
IRFR9120NTRPBF
Part Number .
2607
Lion Part .
Datasheet .
Infineon Technologies Manufacture .
ماسفت 100 ولت 6.5 آمپر نوع P با پکیج TO-252-3
P-CH MOS 100V 6.5A TO-252-3
مشخصات ماسفت IRFR9120NTRPBF
ماسفت IRFR9120NTRPBF
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
-100V
Vds - Drain - Source Breakdown Voltage .
-2V
Vgs th - Gate - Source Threshold Voltage .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
Reel
Packaging .
SMD/SMT
Mounting Style .
P-Channel
Transistor Polarity .
±20V
Vgs - Gate - Source Voltage .
-6.6A
Id - Continuous Drain Current .
Single
Configuration .
27nC
Qg - Gate Charge .
DPAK
Package-Case .
40W
Pd - Power Dissipation .
480mΩ
Rds On - Drain - Source Resistance .
