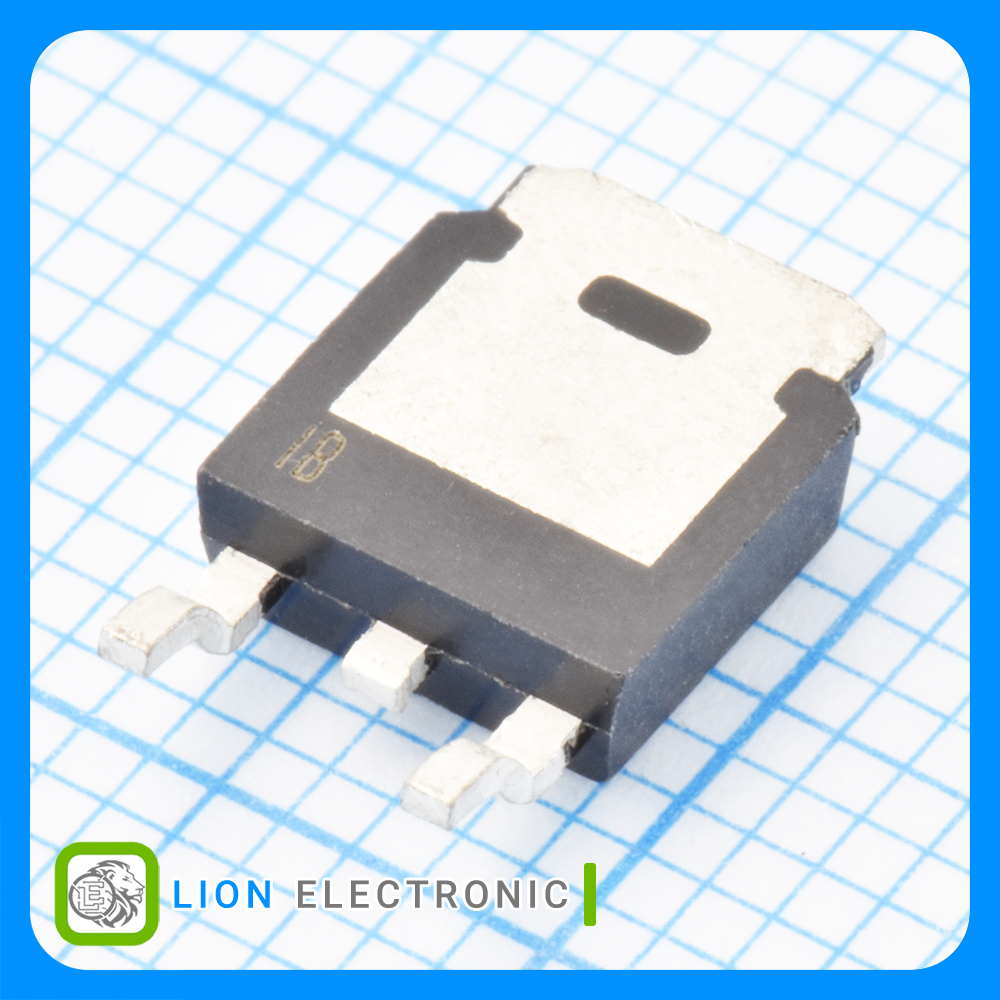

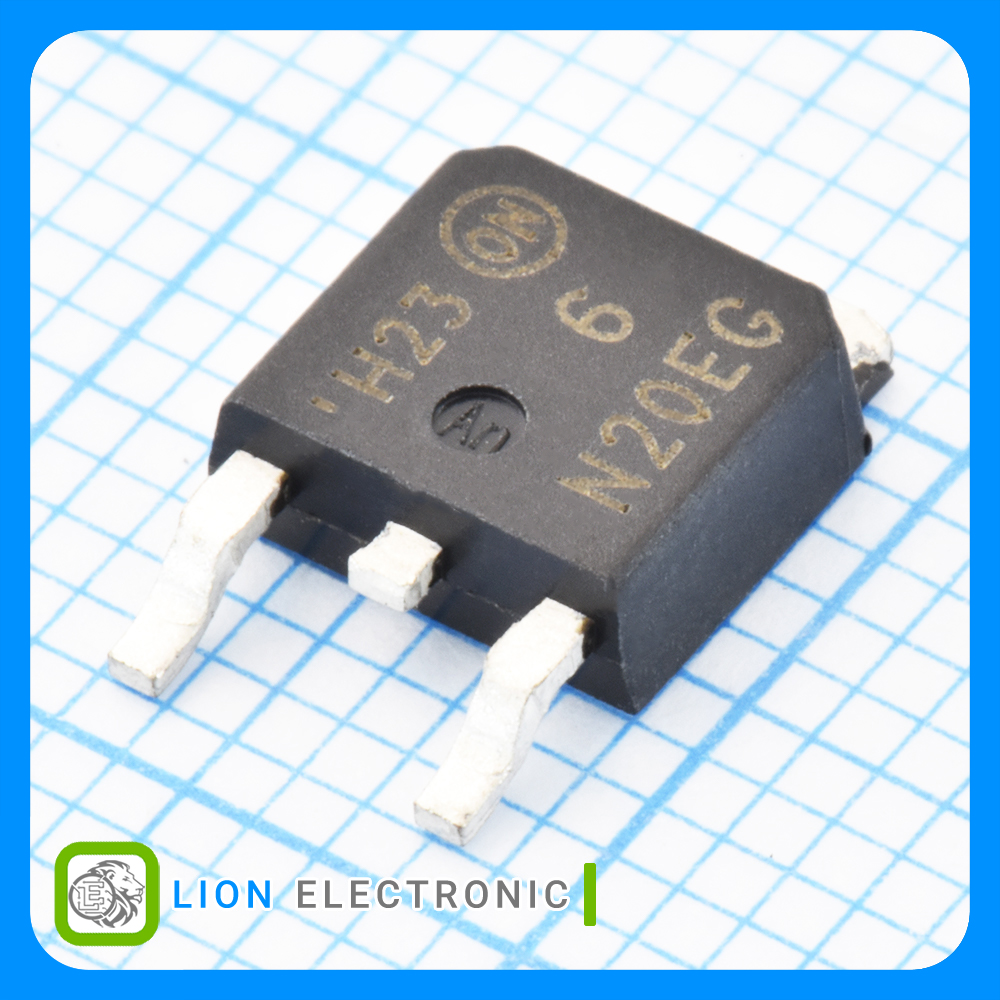

ماسفت MTD6N20E
Detail
MTD6N20E
Part Number .
2651
Lion Part .
Datasheet .
ON Semiconductor Manufacture .
ماسفت 200 ولت 6 آمپر نوع N با پکیج TO-252-3
N-CH MOS 200V 6A TO-252-3
مشخصات ماسفت MTD6N20E
ماسفت MTD6N20E
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
SMD/SMT
Mounting Style .
Tube
Packaging .
±20V
Vgs - Gate - Source Voltage .
200V
Vds - Drain - Source Breakdown Voltage .
Single
Configuration .
2V
Vgs th - Gate - Source Threshold Voltage .
13.7nC
Qg - Gate Charge .
6A
Id - Continuous Drain Current .
DPAK
Package-Case .
50W
Pd - Power Dissipation .
460mΩ
Rds On - Drain - Source Resistance .
