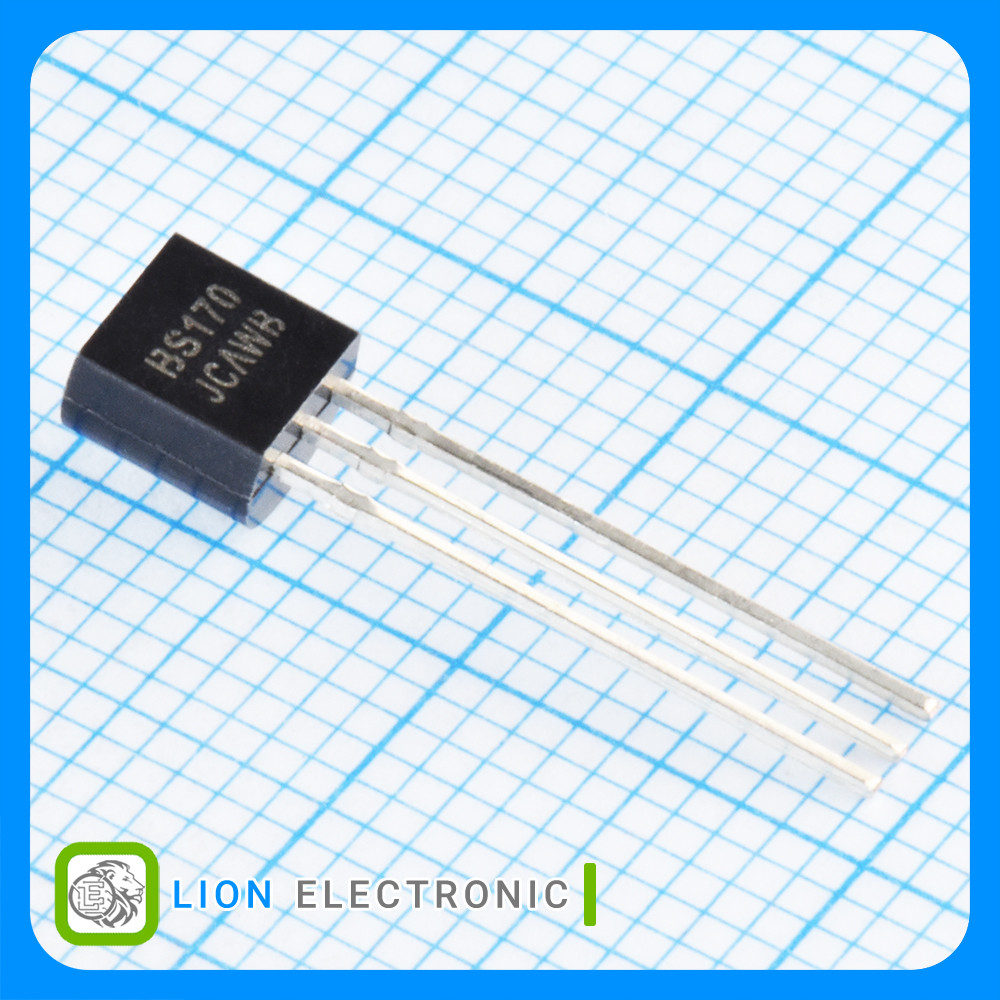

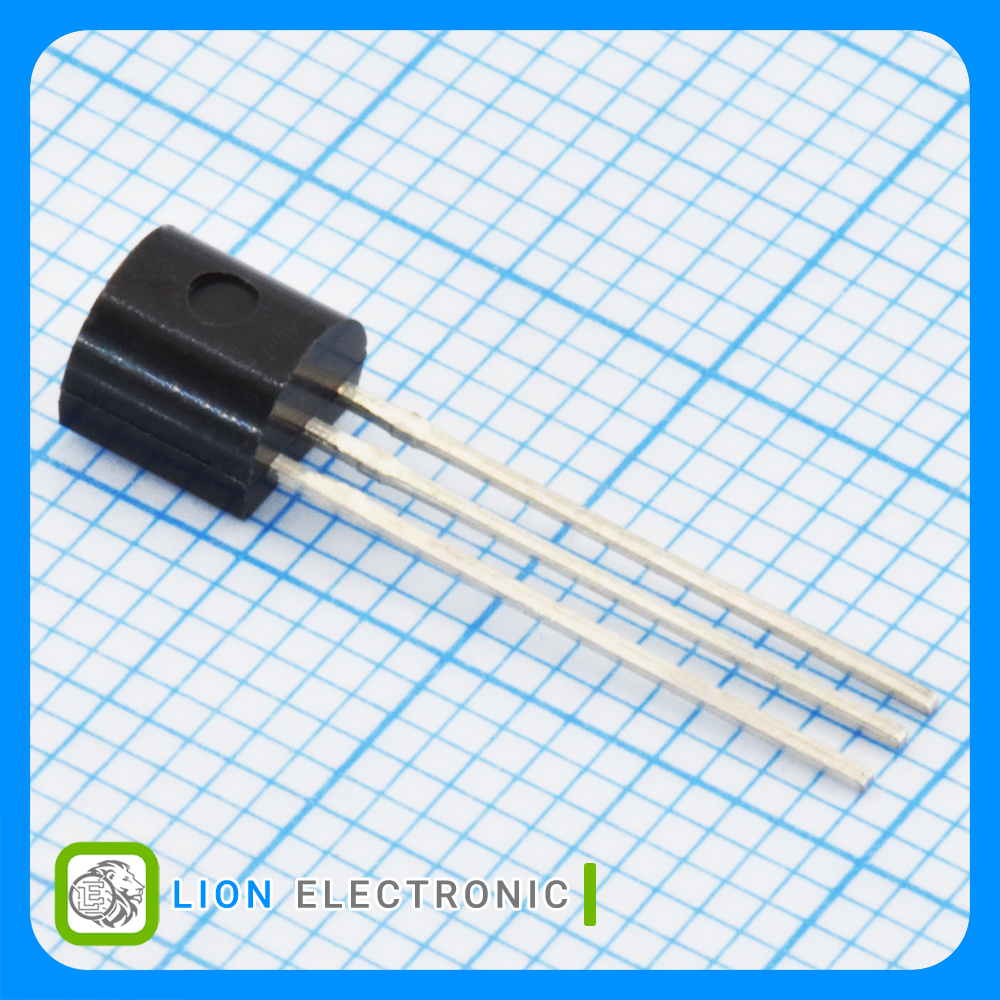

ماسفت BS170
Detail
BS170
Part Number .
2674
Lion Part .
Datasheet .
FAIRCHILD/ONSEMI Manufacture .
ماسفت 60 ولت 500 میلیآمپر نوع N با پکیج TO-92-3
N-CH MOS 60V 500mA TO-92-3
مشخصات ماسفت BS170
ماسفت BS170
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
Bulk
Packaging .
+150C
Maximum Operating Temperature .
Through Hole
Mounting Style .
±20V
Vgs - Gate - Source Voltage .
60V
Vds - Drain - Source Breakdown Voltage .
800mV
Vgs th - Gate - Source Threshold Voltage .
Single
Configuration .
830mW
Pd - Power Dissipation .
500mA
Id - Continuous Drain Current .
1.2Ω
Rds On - Drain - Source Resistance .
TO-92 (SOT-54)
Package-Case .
