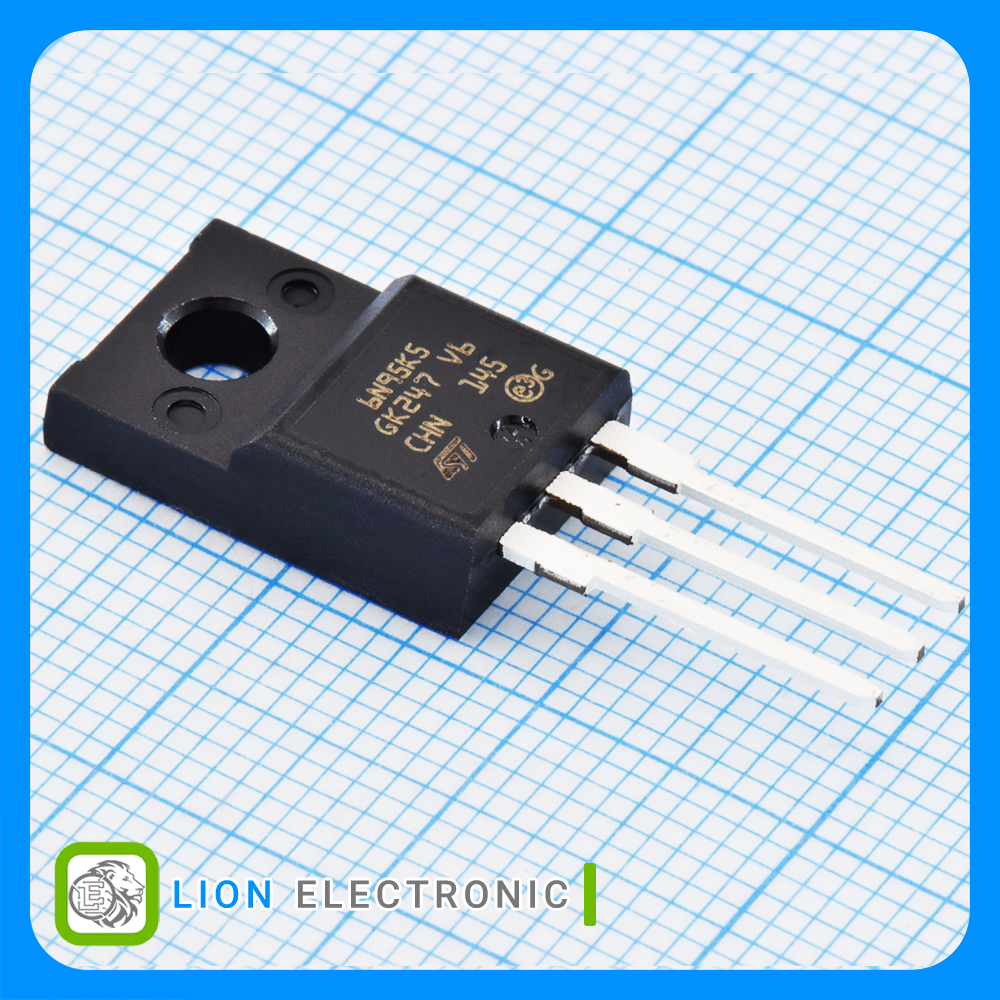

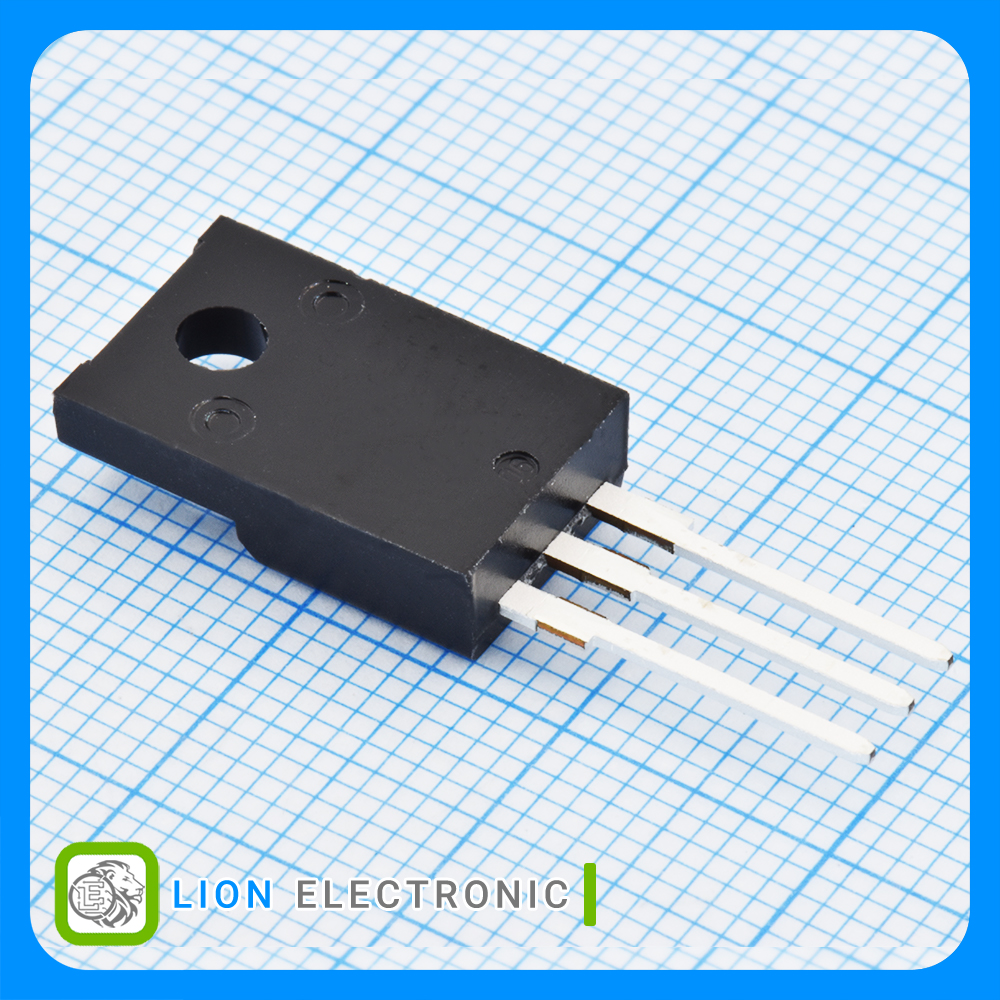

ماسفت STF6N95K5
Detail
STF6N95K5
Part Number .
2886
Lion Part .
Datasheet .
STMicroelectronics Manufacture .
ماسفت 950 ولت 9 آمپر نوع N با پکیج TO-220-3
N-CH MOS 950V 9A TO-220-3
مشخصات ماسفت STF6N95K5
ماسفت STF6N95K5
Part Number .
1
Number of Channels .
Enhancement
Channel Mode .
N-Channel
Transistor Polarity .
-55C
Minimum Operating Temperature .
+150C
Maximum Operating Temperature .
Tube
Packaging .
Through Hole
Mounting Style .
±30V
Vgs - Gate - Source Voltage .
Single
Configuration .
950V
Vds - Drain - Source Breakdown Voltage .
13nC
Qg - Gate Charge .
5V
Vgs th - Gate - Source Threshold Voltage .
25W
Pd - Power Dissipation .
9A
Id - Continuous Drain Current .
1.25Ω
Rds On - Drain - Source Resistance .
TO-220-3
Package-Case .
